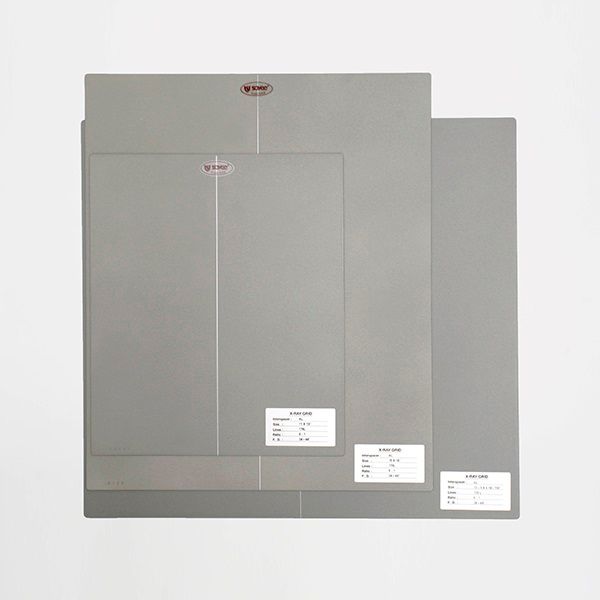

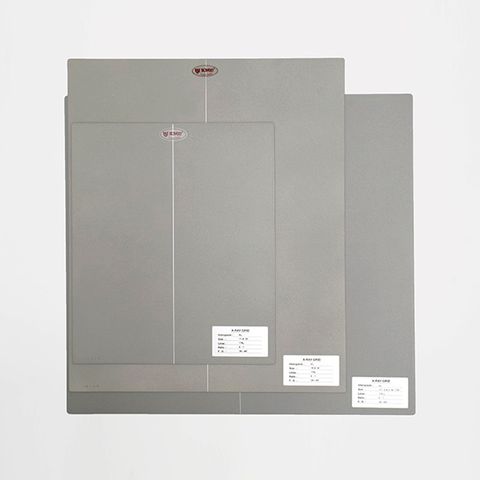

Grids 11x13"
Description
X-ray grids provide clearer radiographic images by trapping scattered radiation, the biggest contributing factor to poor diagnostic quality. Introducing an x-ray grid between the x-ray beam and the film or plate will provide a clearer and more detailed image.
Superior quality images are achieved through the use of aluminum interspacers and lead strips, precisely milled to uniformity.
Grid strips are sealed between smooth aluminum covers and finished with enamel, providing complete resistance to heat and moisture and guaranteeing years of trouble free service.
11x13" are designed to suit10x12" and 24x30cm film cassettes, CR system cassettes and DR Systems. If selecting for a CR or DR system, make sure that the Lines Per Inch is compatible with your system.
Size: 11 x 13"
Lines Per Inch:103
Ratio: 10:1
Focal Distance: 34 -44 inches
