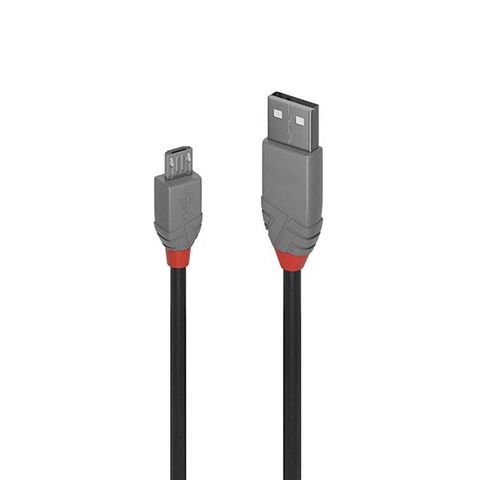

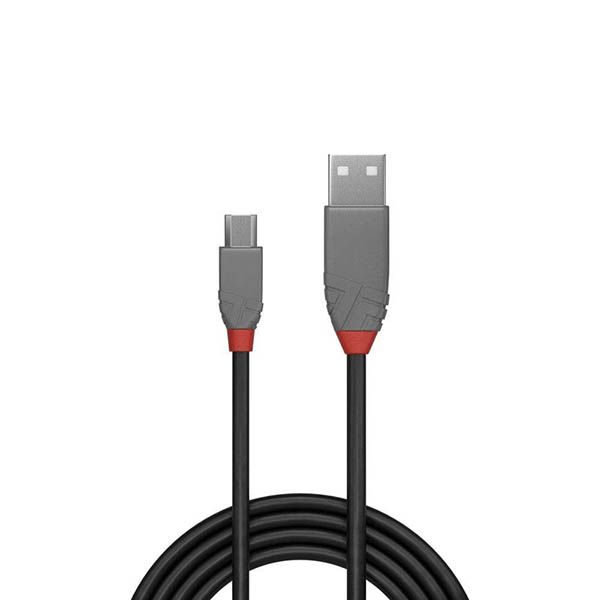

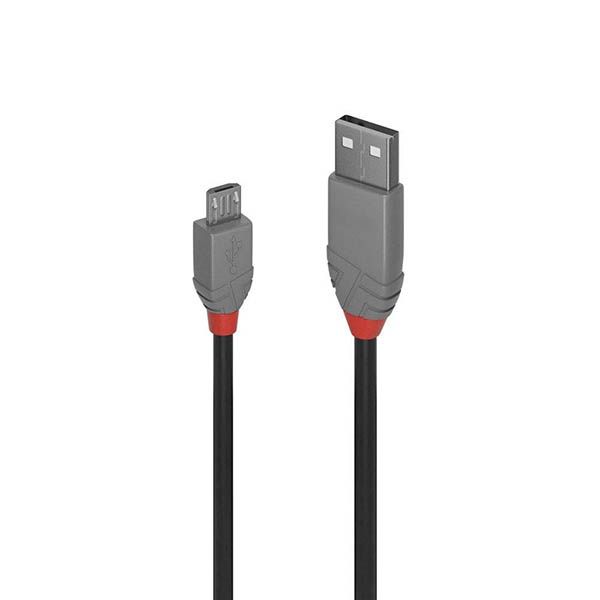

USB 2.0 Type A to Micro-B Cables
Stock Code:
36730
Stock Code:
36731
Stock Code:
36732
Stock Code:
36733
Stock Code:
36734
$2.51 (inc GST)
$3.37 (inc GST)
$4.22 (inc GST)
$5.08 (inc GST)
$5.94 (inc GST)
Description
USB 2.0 Type A to Micro-B Cables
Type A to Micro-B cables are the professional choice for high performance connections in commercial AV and IT installations.
Our USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel connectors maintain signal integrity and reliability.
Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.
Our USB 2.0 Type A to Micro-B cables are available in lengths from 0.2m to 5m.
- Professional choice USB 2.0 Type A to Micro-B cable for commercial and high performance AV and IT installations
- Supports data transfer speeds up to 480Mbps
- Robust PVC housing, nickel connectors and gold plated contacts
- Double shielded cable, corrosion resistant tinned copper conductors
- USB 2.0, 480Mbps; 10 year warranty
Connectors:
- Connector A: USB 2.0 Type A Male
- Connector B: USB 2.0 Type Micro-B Male
- Housing Material: PVC
- Connector Plating: Nickel
- Pin Construction: Copper
- Pin Plating: 24K Gold
- Dimensions, USB A (approx.) WxDxH: 12.0x4.5x36mm (0.47x0.18x1.42in)
- Dimensions, USB Micro-B (approx.) WxDxH: 4.8x3.3x16.4mm (0.19x0.13x0.65in)
Cable Construction:
- Standard: USB 2.0
- Colour: Black
- Type: Round
- Jacket Diameter: 3.5mm (0.14in)
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- Conductor Gauge: 28AWG
- Shielding: Aluminium Magnesium Braid
Specifications:
- Supported Bandwidth: 480Mbps
- Maximum Resolution: -
- Nominal Attenuation: 5.8db/km
- Minimum Bend Radius: 16mm (0.63in)
- Operating Temperature: 0°C - 60°C (32°F - 140°F)
- Storage Temperature: 0°C - 60°C (32°F - 140°F)
Miscellaneous:
- Packaging Type: Polybag
- Warranty (Years): 10 (Materials, workmanship, not user damage)
- Certificated: RoHS, REACH, UL
- Connector A: USB 2.0 Type A Male
- Connector B: USB 2.0 Type Micro-B Male
- Housing Material: PVC
- Connector Plating: Nickel
- Pin Construction: Copper
- Pin Plating: 24K Gold
- Dimensions, USB A (approx.) WxDxH: 12.0x4.5x36mm (0.47x0.18x1.42in)
- Dimensions, USB Micro-B (approx.) WxDxH: 4.8x3.3x16.4mm (0.19x0.13x0.65in)
Cable Construction:
- Standard: USB 2.0
- Colour: Black
- Type: Round
- Jacket Diameter: 3.5mm (0.14in)
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- Conductor Gauge: 28AWG
- Shielding: Aluminium Magnesium Braid
Specifications:
- Supported Bandwidth: 480Mbps
- Maximum Resolution: -
- Nominal Attenuation: 5.8db/km
- Minimum Bend Radius: 16mm (0.63in)
- Operating Temperature: 0°C - 60°C (32°F - 140°F)
- Storage Temperature: 0°C - 60°C (32°F - 140°F)
Miscellaneous:
- Packaging Type: Polybag
- Warranty (Years): 10 (Materials, workmanship, not user damage)
- Certificated: RoHS, REACH, UL
