GoDR Radmedix Acuity 17x17 Vet Small Animal DR System
Stock Code:
GODR-RADMEDIX-1717-CSI-SA
Stock Code:
GODR-RADMEDIX-1717T-CSI-SA
POA
POA
Description

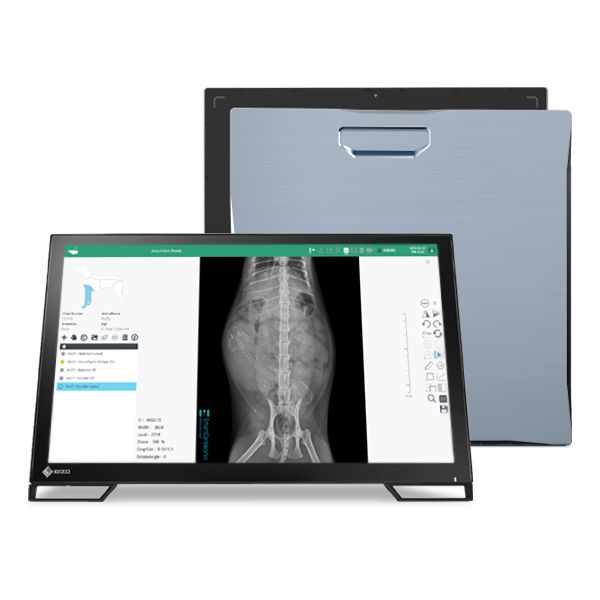

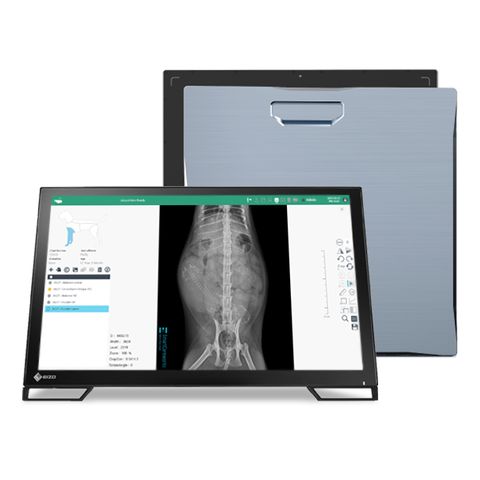

GoDR Radmedix Acuity 17x17" Vet Small Animal DR System
This system has the amazing GoDR software bundled with the impressive RadmediX Acuity 17x17 140µm Flat Panel Detector, along with workstation, touch screen and everything that you need to make a complete system.
GoDR Vet Acquisition Software
GoDR™ is an X-ray image processing and acquisition software developed by SmartCareworks Inc. It is compatible with a wide range of industry leading X-ray detectors and generators.
GoDR™ is the most innovative software to acquire and process digital x-rays images. With veterinary specific features such species and integrated dental option such as tooth picking and full mouth series, all your x-ray capability is in one place. You can easily upgrade your current software to GoDR! You just need to check the compatibility list with us and your done!

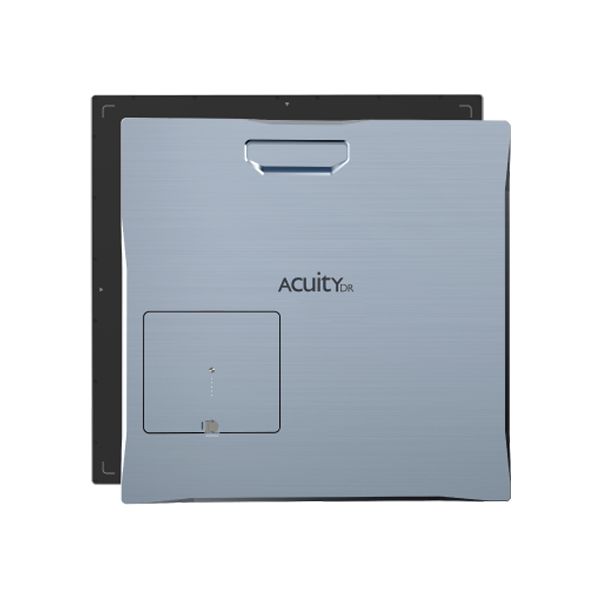

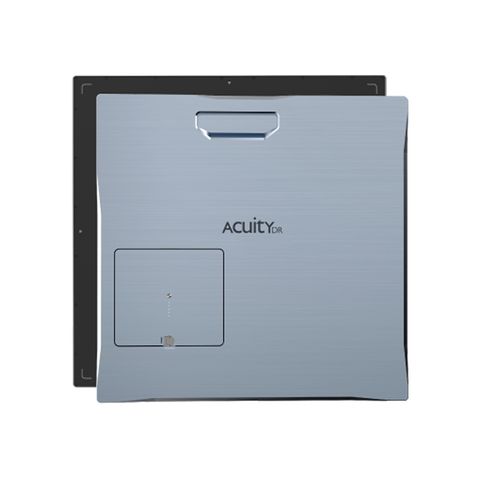

Radmedix Acuity 17x17" High-Performance Cassette-size Wireless a-Si Flat Panel Detector
The Radmedix Acuity 17x17 is a best in class 17x17-inch wireless, cassette-sized flat panel detector for radiographic imaging. It features a 140µm pixel pitch with direct deposition CsI or Gadox. Cutting-edge technologies include a novel light-weight housing design with IPX4 ingress protection, in-tray battery charging, and reliable low power automatic exposure detection (AED). With its exceptional image quality the Radmedix Acuity 17x17 is an excellent choice for high-end DR systems.
Key GoDR Features:
- Vet specific interface
- Full touch screen
- Vet specific tools such as TTA, TPLO
- Easy procedure mapping allowing common sequences to be easily built
- Integrated dental tooth picker and Full Mouth Series with optional dental scanner
- Full integration with multiple DR Flat Panel Detectors
Key Radmedix Acuity DR Flat Panel Detector Features:
- 140µm pixel pitch with 16-bit ADC for more image detail
- Direct deposition Csl or Gadox, with excellent DQE at all frequencies
- Full AED control, exposure at any time
- Wireless cassette detector per ISO 4090, fits in bucky experience
- ISO Standard 17x17" size
- Wireless Detector Weight 3.4kg
- Tethered Detector Weight: 4.3kg
- 8 hours battery life
- Lightweight design with IPX4 ingress protection
- Optional 5 year parts
Included in the System:
- GoDR Vet Acquisition Software
- Radmedix Acuity CsI or Gadox 17x17" 140µm Wireless or Tethered Flat Panel Detector

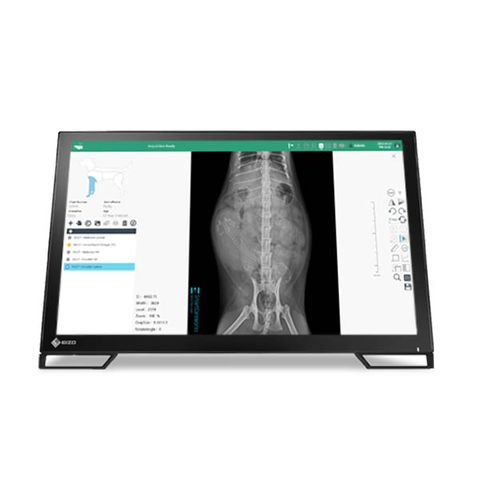

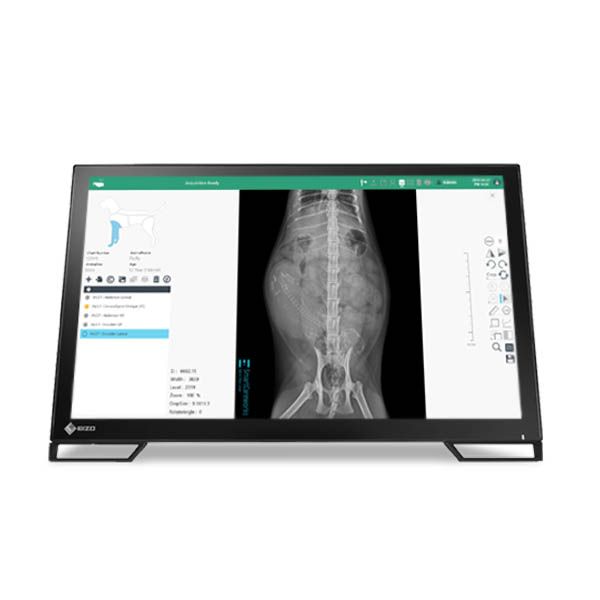

- Eizo Medical Grade 24" Touch screen
- Industrial Computer
- Local Backup Drive
- 3m Network Cable
- UPS (Battery backup)
- Industrial Surge Filter
- Configured and tested ready to go
Optional:
- Extra workstation for separated image review station
GoDR Radmedix Acuity 17x17" Vet Small Animal DR System
Radmedix Acuity 1717 Flat Panel Detector
Model: 1717 Wireless & Tethered
Detector Type: CsI or Gadox
Wireless Detector Weight: 3.4kg
Tethered Detector Weight: 4.3kg
Active Area: 430 x 430mm
Pixel Pitch: 140 micron
Resolution: 3,072 x 3,072
A/D Conversion: 14 bit
Input Voltage: DC 12V, 5A
Communication: Giga Ethernet / IEEE 802.11n (5GHz)
Transfer: Wireless or Wired
Image Acquisition:
Wired: Preview 2 sec/Full 4.5 sec
Wireless: Preview 2 sec/Full 6 sec
X-ray I/F: Lossless AED / Sync Trigger
ARO i5 Workstation DR Workstation
- Intel Core i5 Processor
- 8GB RAM
- 250GB SSD main drive + 1TB Image Store + 1TB Backup Hard Drive
- Windows 10 Professional
- Antivirus Software
- Remote Access Support Software
- 24" Monitor, DICOM Gray Scale Calibrated
- UPS (Battery Backup) and Grade Surge Protector
- 3 Year Parts Warranty (Conditions apply)
Note: Specifications subject to change without notice
