As a super compact workstation with dual ethernet ports, this is suitable for very specific tasks such as supporting our GoDR Acquisition Solution, other DR Workstations and other applications. Available with multiple drive configurations.

Experience the 10th Gen Power Full-sized PC Performance in a tiny footprint
Shuttle DH-series is one of the most popular line-ups of XPC, now is adding a new member of DH470 supporting 10th generation Intel LGA1200 Comet Lake 65W CPU technology. Compact and rugged design, the small footprint desktop provides up to 10 core of performance boost for effortless multitasking and smooth video playback. With built-in HDMI 2.0a and DisplayPort ports, users can configure two 4K displays easily. This compact model also includes eight USB ports and two serial ports for convenient, flexible peripheral options. Measuring just 43 mm in height, there’s still room for 2.5” hard drive as well as dual M.2 expansion cards and support for up to 64GB of DDR4 memory. The DH470 is the perfect choice as a solid PC for digital signage, POS, kiosk, Office Desktop and many more.

Intel® 10th Gen Processor
Based on the new H470 chipset, the DH410 is ready for 10th Gen Intel processors in the LGA 1200 package. With up to 10 cores of processing power, the platform supports up to 64GB (32GB x 2) of DDR4 memory, integrated UHD graphics and PCIe controllers to deliver outstanding performance onboard.

Dual Display Productivity
With HDMI 2.0a and DisplayPort outputs built-in, the DH470 supports two independent displays, providing productivity benefits and dynamic visualization for multitasking and digital signage applications. The HDMI 2.0a specification is able to support 4K@60Hz resolution (4096x2160) at a maximum of 60FPS as well as transmission of high dynamic range (HDR) video, which allows viewers to enjoy the vivid streaming, higher contrast ratio, and more accurate colour from HDR-compatible display and TVs.

Strong Expansion Capacity with M.2
With native M.2 2280/2260/2242 Type M and one M.2 2230 Type E slot, the DH470 offers considerably faster storage performance and expansion capacity for M.2 SSD and Wi-Fi modules.
*M.2 supports both SATA and PCIe storage interfaces

Excellent Connectivity
In addition to two video outputs for dual displays, the DH470 also features four USB 3.2 Gen 1 ports, four USB 2.0 ports, two RS232 interfaces as well as SDXC card reader for convenient, flexible connectivity options.

High-Speed Dual Gigabit LAN
The DH470 has built-in dual Intel® i210AT Gigabit LAN and supports Wake On LAN and Teaming Mode function to provide high-speed data transfer capability and thus a better business networking integration.

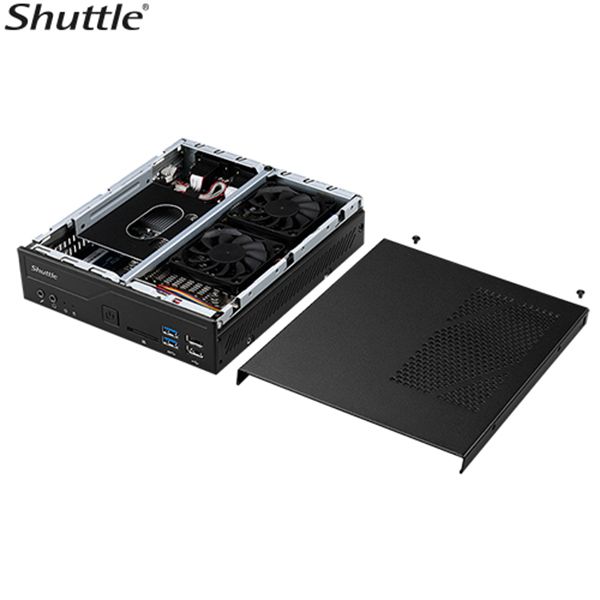

Exclusive Cooling Technology
The DH470 features Shuttle’s exclusive heat-pipe cooling system with smart fan design. The clever ventilation design allows for constant air circulation between the inside and outside of the machine resulting in high stability and low noise for long-term operation.

Operable in 0-50°C
The DH470 uses industrial capacitors to meet the environmental operation demands of commercial applications.
*With wide temperature range SoDIMM and SSD

VESA Mount-Ready
The DH410 is VESA mount compliant and allows for versatile integration into hardware systems. This space-saving capability is well-suited for digital signage and kiosk applications with limited space.

24/7 Nonstop Operation
Officially approved for 24/7 permanent operation. Thanks to Shuttle’s low power consumption design and stable operation, the DH470 runs highly reliable and meets the long-run demands of computing work.

Support Power on by RTC
Save energy costs as well as the cost of on-site service with Power-On by RTC function. Set automatic ‘Power On’ and ‘Power Off’ times by RTC via BIOS. Power on by RTC can also be turned on and off with the Windows task scheduler.

The Watchdog
Watchdog Timer provides excellent security protection for systems that need to operate continuously for a long period of time. Use Shuttle’s Watch Dog utility to maintain normal operation and stability of the system at all times.

Operating System Support
- Windows 10 64bit
- Linux

Click here for Warranty Information

ARO Shuttle DH470 i5 Workstation

FORM FACTOR
- 1.3L chassis

PROCESSOR
- Intel i5-10400 CPU 2.9GHz (4.3GHz Turbo) LGA1200 10th Gen, 6-Cores, 12-Threads, 12MB, 65W

CHIPSET:
- Intel H470 Express chipset

MEMORY
- Crucial 8GB (1x8GB) DDR4 SODIMM 2666MHz CL19 Single Stick RAM

VIDEO OUTPUT
- HDMI 2.0 + DisplayPort, Dual video output
- 4K playback (Dual channel memory recommended)
- Integrated in CPU

AUDIO
- Realtek ALC662 High Definition Audio

ETHERNET
- Intel I210AT*2 Dual Lan
- 10Mb/s,100Mb/s,1Gb/s operation
- Support Wake-On-LAN function
- Support Teaming function

Wi-Fi
- Intel Wi-Fi 6 AX200 (Optional)

BLUETOOTH COMPATIBLE
- Yes

STORAGE
Optional Configuration
- 250GB or 500GB M.2 NVMe SSD for OS
- 1TB, 2TB, 4TB Sata SSD for Data

ONBOARD CONNECTORS
(1) 4pin fan connector
(1) VGA(For PVG01 use)
(1) 1x4 pin USB header(For WWN03 use)
(1) SATA connector w/power
(1) Front audio header
(1) Auto power on header
(1) RS232 voltage switch

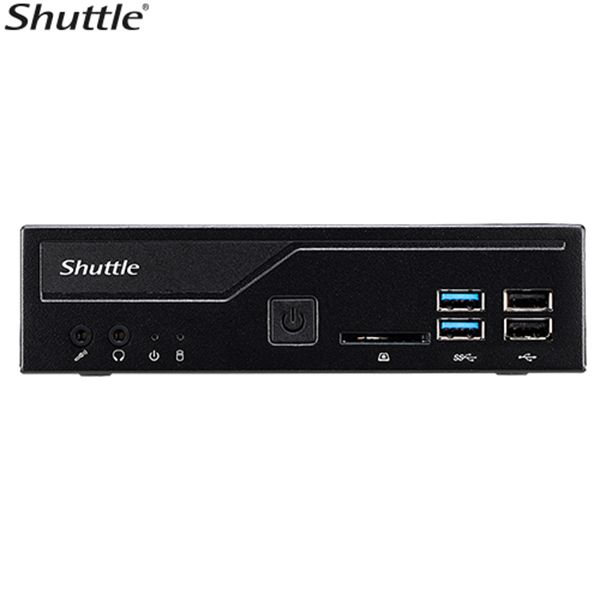

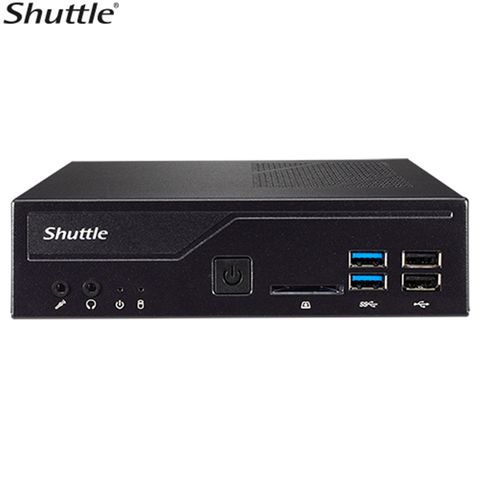

FRONT PANEL
(2) USB 2.0 ports
(2) USB 3.2 Gen1 ports
(1) Microphone-In
(1) Earphone-Out
(1) Power-On button
(1) Power LED
(1) HDD LED
(1) SD Card reader

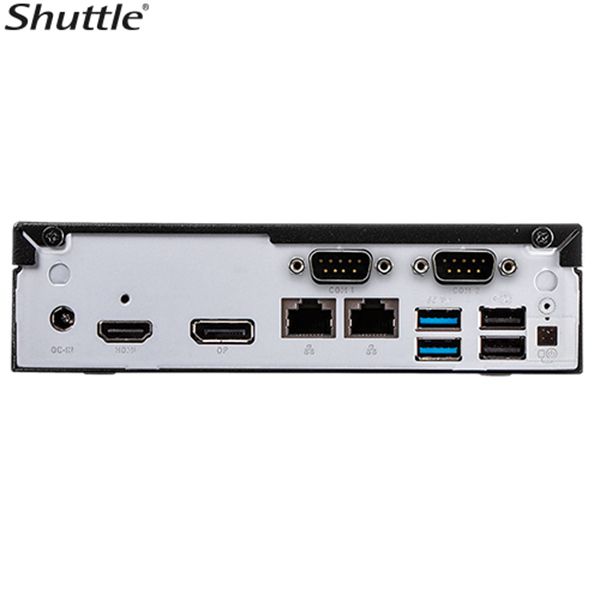

BACK PANEL
(2) RJ45 Gigabit LAN port w/LED
(Green-link/Yellow-active)
(1) HDMI port
(1) Display port
(2) USB 2.0 ports
(2) USB 3.2 Gen1 ports
(1) RS232
(1) RS232/RS422/RS485
(1) External 4pin header
(1) DC-in
(2) Wireless Antenna fixture
(1) Kensington lock

DRIVE BAYS
(1) 2.5" HDD / SSD bay

DIMENSIONS
- 190(L) x 165(W) x 43(H) mm

POWER
- 90W Power Adapter
- Input:100- 240V AC
- 19V 4.74A DC or Output:12V/7.5A DC

ACCESSORIES
- XPC multi-language Quick User Guide
- XPC DVD Driver
- VESA mount
- VESA Screw pack
- Power cord
- Thermal Grease
- HDD Screw pack
- 90W adapter

EXPANSION SLOT
(1) M.2 2280 Type M key socket
(1) M.2 2230 Type E key socket

OS SUPPORT
- Windows 10 64 bit O.S
- Linux
