As a super compact workstation with dual ethernet ports, this is suitable for very specific tasks such as supporting our GoDR Acquisition Solution, other DR Workstations and other applications. Available with multiple drive configurations.

Experience the 12/13th Gen Power Full-sized PC Performance in a tiny footprint
Shuttle XPC Slim series DH610 supports Intel® 13th/12th Gen LGA1700 processors. With Intel® new performance hybrid architecture and UHD graphics 700 series integrated, the model computes performance along with the potential for powering AI deployment. Support up to three displays via one HDMI 2.0b and two DisplayPort for display productivity and flexibility. Moreover, the model provides comprehensive connectivity with multiple ports, including four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, two RS232, Intel® 2.5GbE + Intel® 1GbE LAN, and two M.2 expansion slots. DH610 can perform a reliable operation suitable for Office, Digital Signage, Kiosks, and other Multi-platform AI deployment.

Intel® 13th Gen Processor

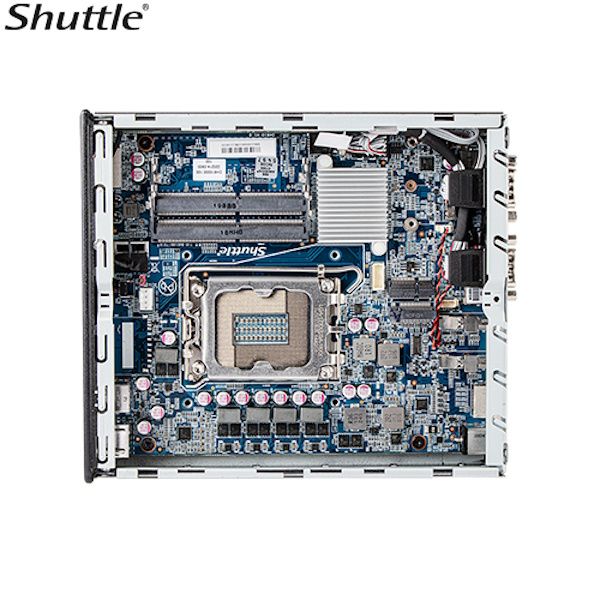

Based on the H610 chipset, DH610 is designed for 13th/12th Gen Intel® processors in the LGA1700 socket and supports up to 64GB (32GBx2) of DDR4-3200 memory, which delivers a performance improvement uplift of up to 28%, providing powerful computing capacity. In addition, with Intel® UHD Graphics 700 series integrated, DH610 is potential for multi-platform AI deployment.

Triple-Display Productivity
With one HDMI 2.0b and two DisplayPort outputs built-in, DH610 supports three independent displays, providing productivity benefits and dynamic visualization for multitasking and digital signage applications.

Strong Expansion Capacity with M.2
With a native M.2 2280/2260/2242 Type M slot and an M.2 2230 Type E slot, DH610 offers considerably faster storage performance and expansion capacity for M.2 SSD and Wi-Fi modules.
*M.2 2280 key M supports SATA 3.0 and PCIe 3.0 x 4 storage interfaces.

Rich Connectivity and High-speed Intel® 2.5GbE LAN
DH610 provides four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, and two RS232 for flexible connectivity options. In addition, Intel® 2.5 GbE and Intel® 1GbE Lan are equipped to support Wake on LAN functions to provide high-speed data transfer capability.

Exclusive Cooling Technology

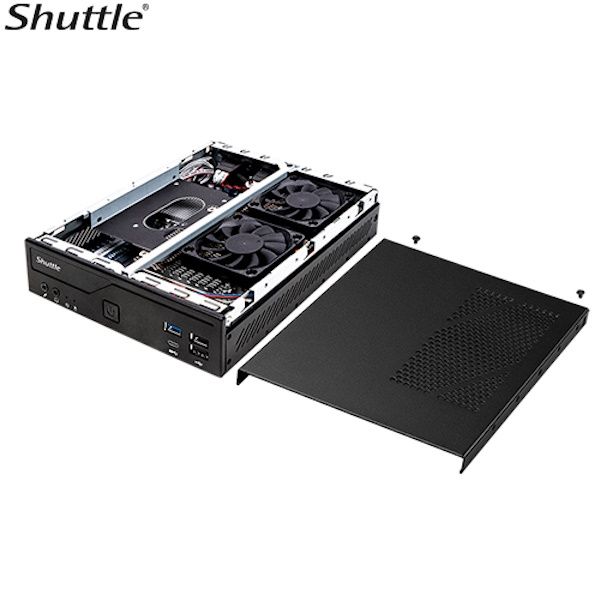

DH610 features Shuttle’s exclusive heat-pipe cooling system with an intelligent fan design. The clever ventilation design allows constant air circulation between the inside and outside of the machine resulting in high stability and low noise for 24/7 long-term operation.

Operable in 0-50°C
The DH610 uses industrial capacitors to meet the environmental operation demands of commercial applications.
*With wide temperature range SoDIMM and SSD

VESA Mount-Ready
The DH610 is VESA mount compliant and allows for versatile integration into hardware systems. This space-saving capability is well-suited for digital signage and kiosk applications with limited space.

24/7 Nonstop Operation
Officially approved for 24/7 permanent operation. Thanks to Shuttle’s low power consumption design and stable operation, the DH610 runs highly reliable and meets the long-run demands of computing work.

Support Power on by RTC
Save energy costs as well as the cost of on-site service with Power-On by RTC function. Set automatic ‘Power On’ and ‘Power Off’ times by RTC via BIOS. Power on by RTC can also be turned on and off with the Windows task scheduler.

The Watchdog
Watchdog Timer provides excellent security protection for systems that need to operate continuously for a long period of time. Use Shuttle’s Watch Dog utility to maintain normal operation and stability of the system at all times.

Operating System Support
- Windows 11 64bit
- Windows 10 64bit
- Linux

Click here for Warranty Information

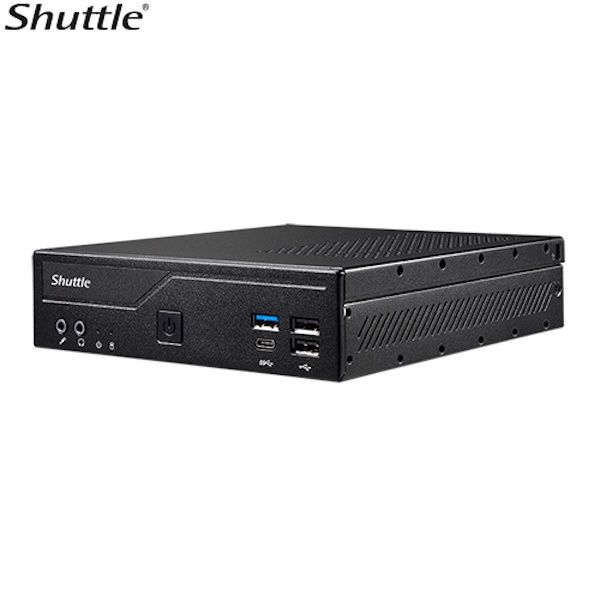

ARO Shuttle DH610 i5 Workstation

FORM FACTOR
- 1.3L chassis

PROCESSOR
- Support Intel 12/13th LGA1700 socket Core i3/i5/i7/i9, Pentium, Celeron 65W processor
* BIOS v2.02 and updated version support Raptor Lake (13th) CPU

CHIPSET
- Intel H610 Express chipset

MEMORY
- 2 x DDR4 SODIMM slots,32GB per DIMM (Max 64GB) DDR4 up to 3200 MHz

VIDEO OUTPUT
- HDMI 2.0 x 1+ DisplayPort x 2, Triple video outputs
- 4K playback (Dual channel memory recommended)
- Integrated in CPU

AUDIO
- Realtek High Definition Audio

ETHERNET
- (1)Intel GbE Lan / (1)2.5 GbE Lan
- 10Mb/s,100Mb/s,1Gb/s operation
- Support Wake-On-LAN function

Wi-Fi
- Intel Wi-Fi 6 AX200 (Optional)

BLUETOOTH COMPATIBLE
- Yes

STORAGE
Optional Configuration
- 250GB or 500GB M.2 NVMe SSD for OS
- 1TB, 2TB, 4TB Sata 6.0Gb/s SSD for Data

ONBOARD CONNECTORS
- 1x 4pin fan connector
- 1x VGA(For PVG01 use)
- 1x 1x4 pin USB header(For WWN03 use)
-1x SATA connector w/power
- 1x Front audio header
- 1x Auto power on header
- 1x RS232 voltage switch

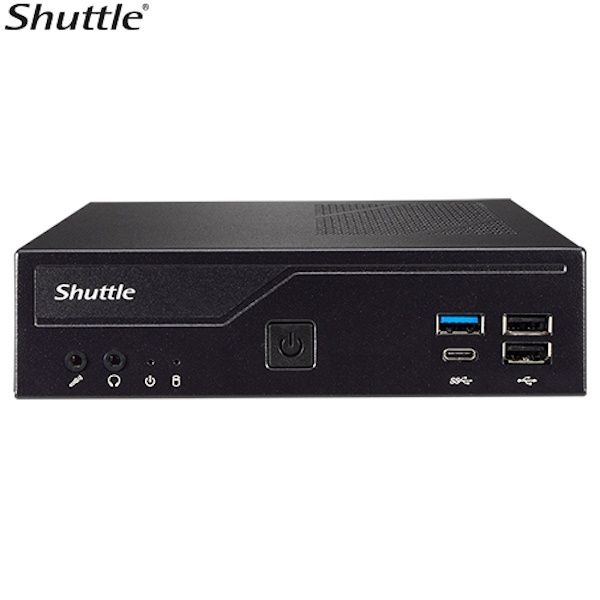

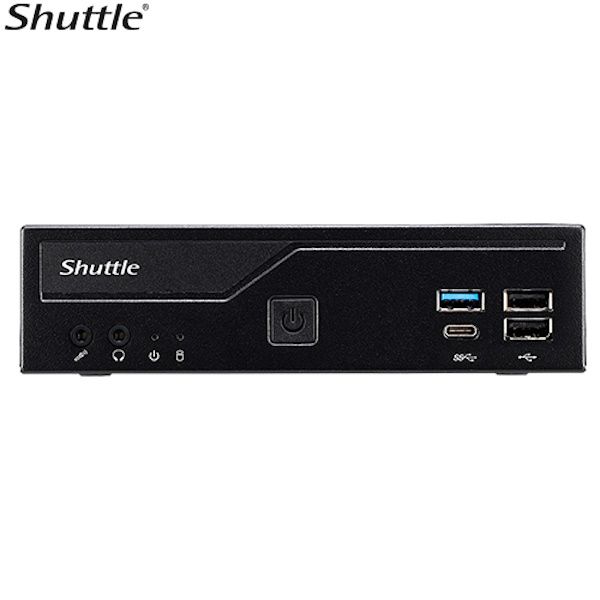

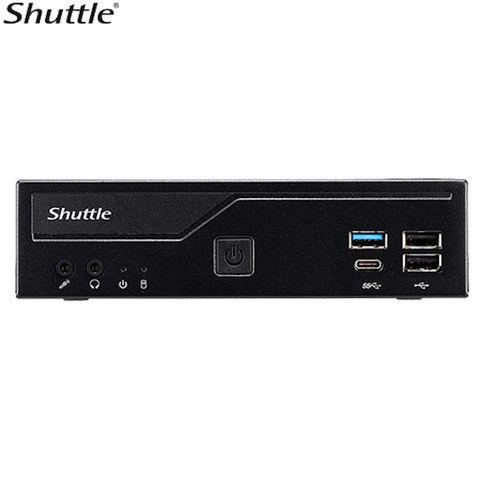

FRONT PANEL
- 2x USB 3.2 Gen1 ports (Include Type C x1)
- 2x USB 3.2 Gen1 ports
- 1x Microphone-In
- 1x Earphone-Out
- 1x Power-On button
- 1x Power LED
- 1x HDD LED
- 1x SD Card reader

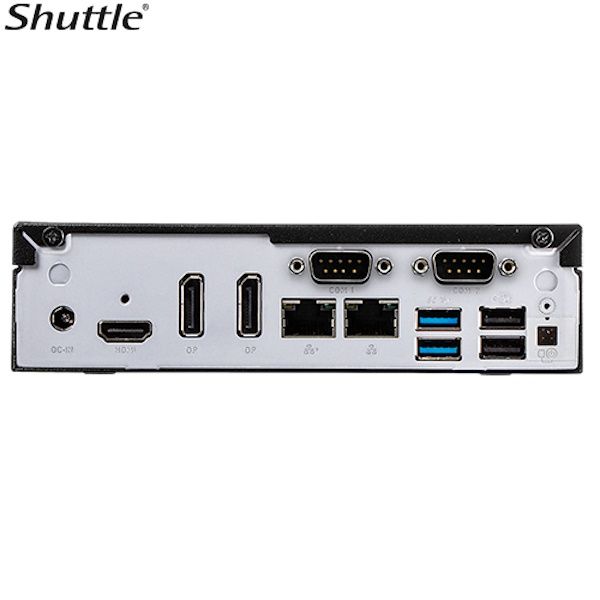

BACK PANEL
- 2x RJ45 Gigabit LAN port w/LED (Green-link/Yellow-active)
- 1x HDMI port
- 2x Display port
- 2x USB 3.2 Gen1 ports
- 2x USB 2.0 ports
- 1x RS232
- 1x RS232/RS422/RS485
- 1x External 4pin header
- 1x DC-in
- 2x Wireless Antenna fixture
- 1x Kensington lock

DRIVE BAYS
- 1x 2.5" HDD / SSD bay

DIMENSIONS
- 190(L) x 165(W) x 43(H) mm

POWER
- 120W Power Adapter
- Input:100 - 240V AC
- 19V 6.32A
- DH610 support 12V DC input

ACCESSORIES
- XPC multi-language Quick User Guide
- XPC DVD Driver
- VESA mount
- VESA Screw pack
- Power cord
- Thermal Grease
- HDD Screw pack
- 120W adapter

EXPANSION SLOT
- 1x M.2 2280 Type M key socket
- 1x M.2 2230 Type E key socket

OS SUPPORT
- Windows 10/11 64 bit OS
- Linux

Remark
- RS232/422/485 ports support 0/5/12V output. Voltage setting please refer to Quick Guide.

Operating Temperature
- 0? ~ 50?
