RC Imaging Weight Bearing Protective Cover
Stock Code:
WB.C1012-SL
Stock Code:
WB.C1012
Stock Code:
WB.C1417CF
Stock Code:
WB.C1717CF
Stock Code:
WB.C1417-SL
Stock Code:
WB.C1417
$0.00 (inc GST)
$0.00 (inc GST)
$1,463.00 (inc GST)
$1,705.00 (inc GST)
$1,166.00 (inc GST)
$1,518.00 (inc GST)
Downloads
Description

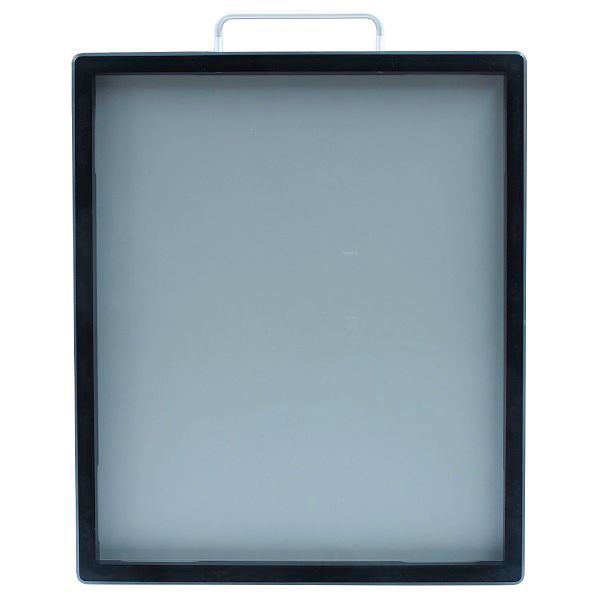

RC Imaging Weight Bearing Protective Cover
Easy to carry, hard to break
Our new Weight Bearing Protective Cover has been designed to accommodate Digital (DR) Panels, CR Cassettes, and traditional X-Ray Cassettes. Our covers are strong yet light-weight, offering a high degree of protection during weight bearing studies or procedures.

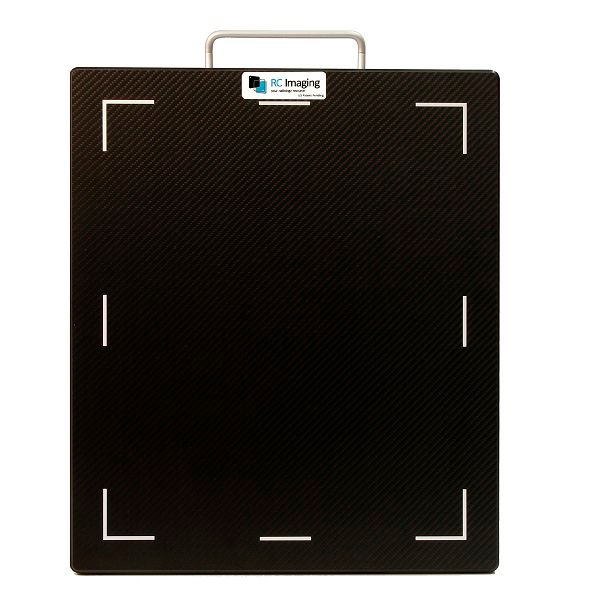

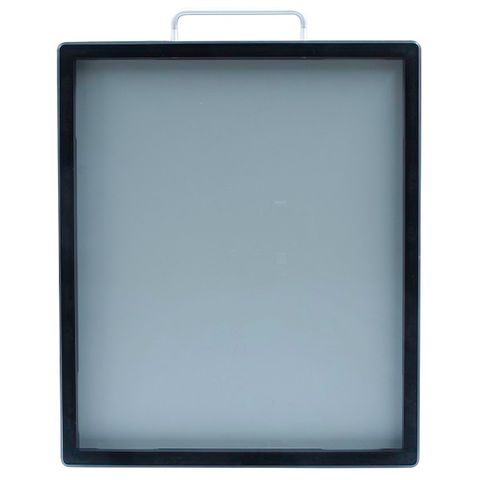

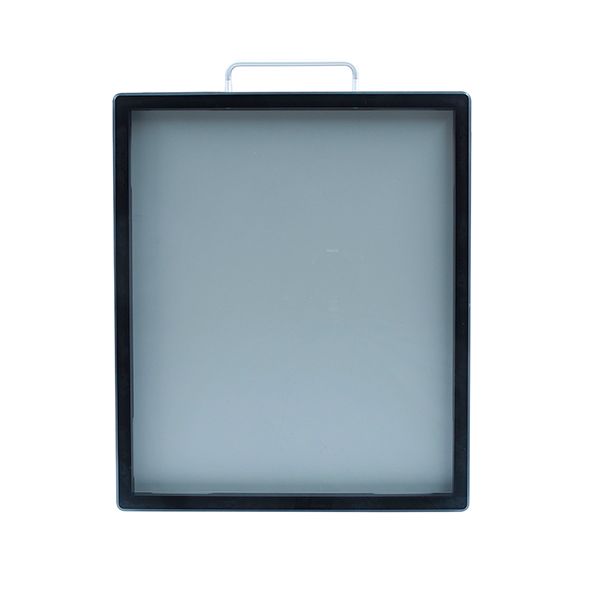

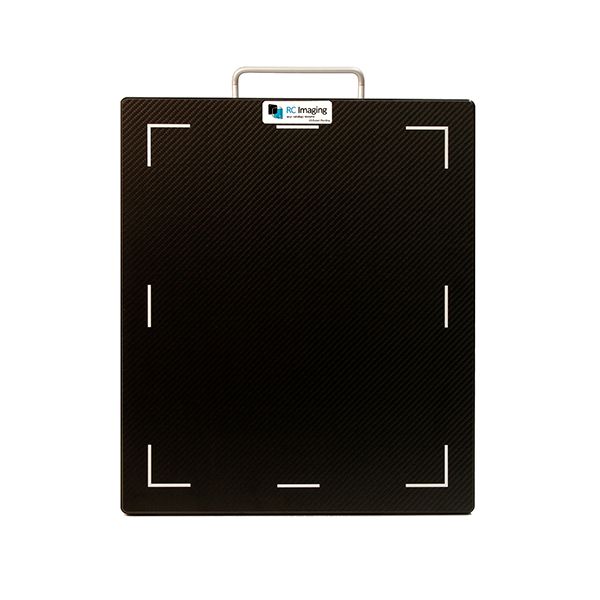

Our latest panel and cassette protectors are constructed of a high density polyethylene frame and either a carbon fibre or smoked polycarbonate top, offering protection up to 589kg (1300 lbs). Our easy list handle makes removal and carrying a breeze.
Each includes non-skid rubber feet that maintain the correct placement even on hard surfaces, which provides safety for all patients during procedures. The handle offers easy lifting and removal.
Weight Bearing Test Results.
A controlled mechanical test of our product was conducted by a certified independent lab. The test applied a centre downward distributed load to the Weight Bearing Cover panel. The measurement shown is the amount of force induced to the point where the deflecting panel just makes contact with the detector. After testing, neither panel assembly showed any sign of damage or stress.
Key Features:

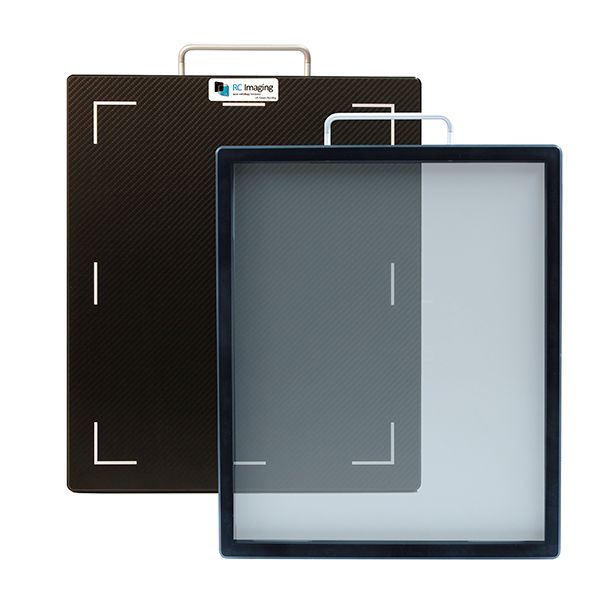

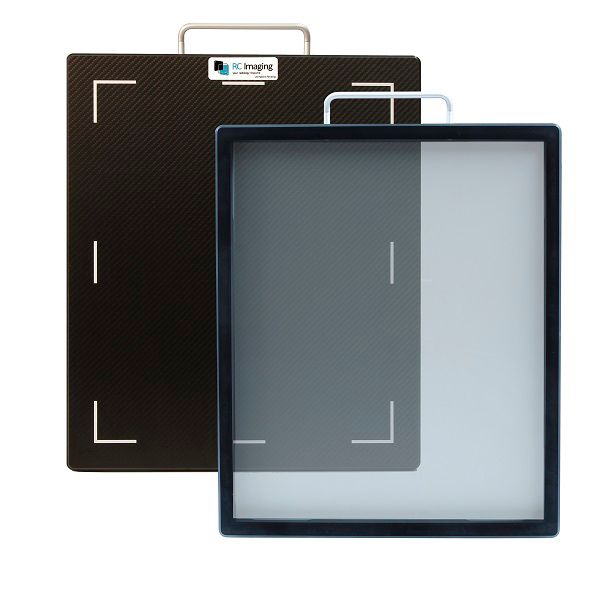

- 2 options, Polycarbonate (10" x 12" and 14" x 17") or Carbon Fibre (14" x 17" and 17" x 17")

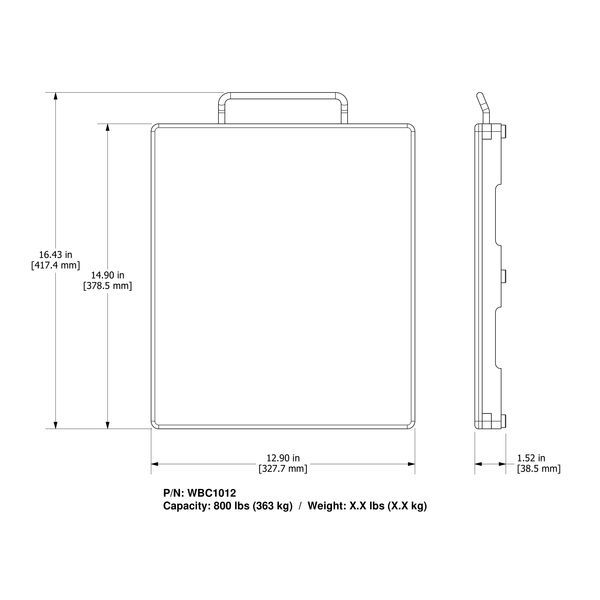

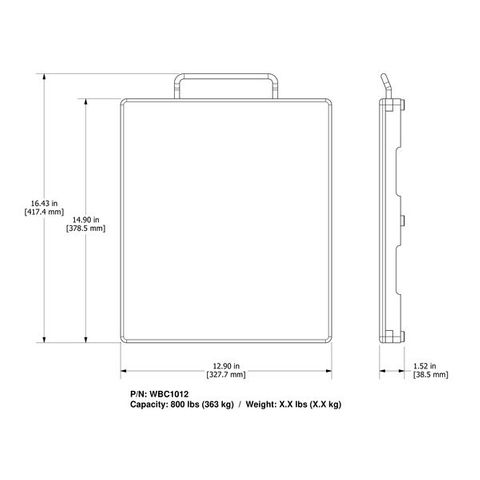

- 10x12" Polycarbonate weight rating: 363 kg (800 lbs)

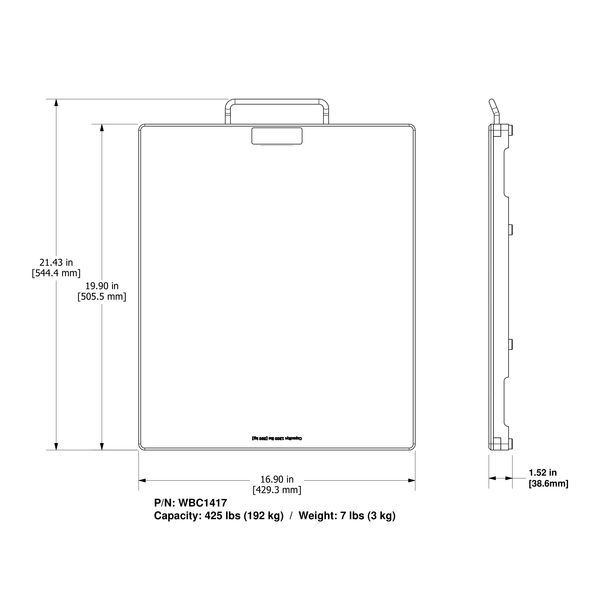

- 14x17" Polycarbonate weight rating: 192 kg (425 lbs)

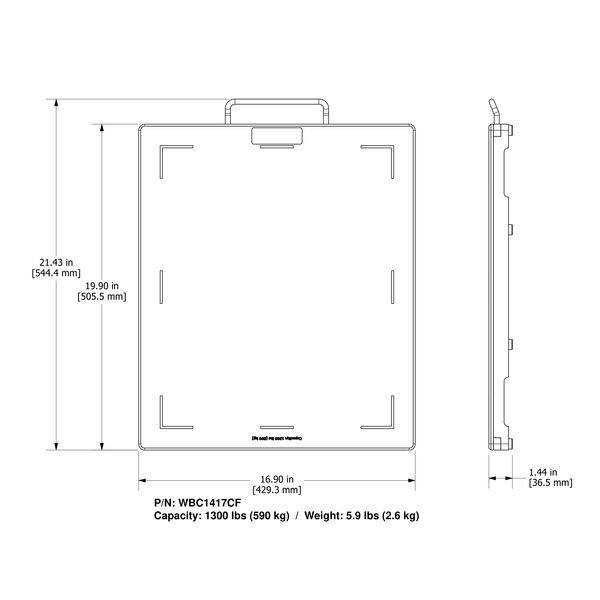

- 14x17" Carbon Fibre weight rating: 589 kg (1300 lbs)

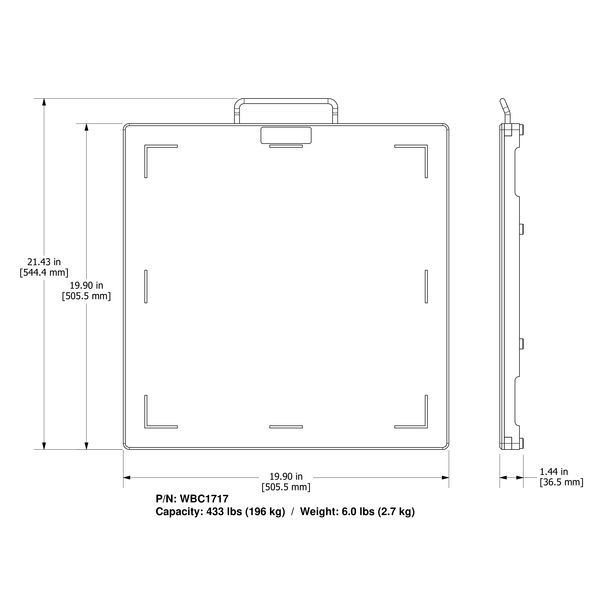

- 17x17" Carbon Fibre weight rating: 196 kg (433 lbs)
- Slots for lateral views on 10"x 12" and 14" x 17"
Note: This does not include international or domestic freight
