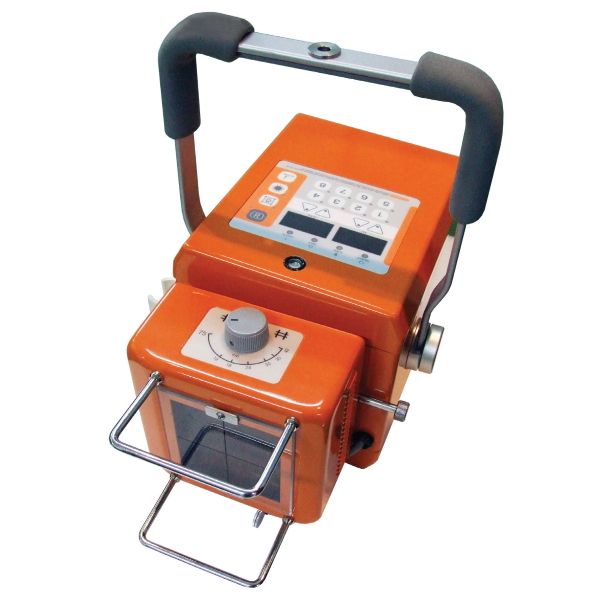

EcoRay Orange 1040HF Portable X-Ray Generator with Skin Guards for Medical Use
Stock Code:
ORANGE-1040HF-MED
POA
Description
EcoRay Orange 1040HF Portable X-Ray Generator with Skin Guards
ECORAY Orange 1040HF is a portable x-ray generator with skin guards and is a Medical device and radiological machine for Human use.
ECORAY’s high frequency inverter technology is heading to more valuable, durable and powerful to produce the high quality of images with every imaging solution.
It is used for the radiographic investigation, performed by a qualified operator, in compliance with the effective safety and health regulations concerning the ionizing protection and the electrical and mechanical safety of the medical devices.
Key Features
- Powerful & Stable output with unique features for user convenience
- Portable X-ray generators for veterinary purposes
- It is light, compact and powerful X-ray machine that you can easily carry from one place to another
- The Best seller in the line !
- Compact size but powerful output 100kV/40mA
- Outstanding & Stable imaging capability
- Ergonomic & Soft OP panel layout
- Easy access to DR systems with FPD
- Convenient handling for advanced image quality
EcoRay Orange 1040HF Portable X-Ray Generator with Skin Guards
Specifications:
Generator Type: Monobloc design, High Frequency Inverter
HV Generator: 2.4kW (80kv@30mA)
Max kV / mA: 100kV / 40mA
Increments: 40 - 100kV in 1kV Steps
X-Ray Tube Focal Spot: 1.2mm x 1.2mm
Increments: 0.32 - 100 mAs (26 Steps)
mA Available: 20, 26, 30, 35, 40mA
SID measurement: Tape & Laser Pointer
Memory: 8 APR (Extendible to 16)
Weight: 11.7 kg
Power requirements: 2.4kVa, 230VAC, 10A, 50Hz
Size: 344x191x188mm
Warranty: 2 Year Warranty
In the box: Aluminium Carry Case, Spare Globe, Spare Fuse
Specifications subject to change without notice
