Battery - Yuasa REW45-12 Industrial VRLA
Stock Code:
REW45-12
$70.40 (inc GST)
Downloads
Description

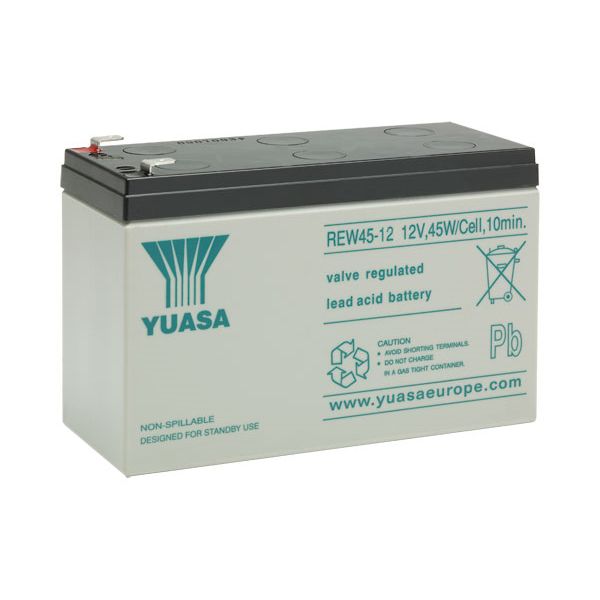

Yuasa REW45-12 Industrial VRLA Battery
The Yuasa REW45-12 Industrial VRLA Battery is designed as a premium replacement battery for UPS's, Alarm Systems and other applications.
Also suitable for Powershield Commander & Defender UPS range, Eaton PowerWare UPS range and Shimadzu Mobile Art range of x-ray machines.
Yuasa REW45-12 Industrial VRLA Battery
Specifications
Nominal voltage (V): 12
10m rate Constant Power (Typ) to 9.6V at 20°C (W/Block): 252
10m rate Constant Power (Typ) to 1.6V/cell at 20°C (W/Cell): 42
20-hr rate Capacity to 10.5V at 20°C (Ah): 8
10-hr rate Capacity to 10.8V at 20°C (Ah): 6.96
Dimensions
Length (mm): 151 (±0.5)
Width (mm): 64 (±0.5)
Height (mm): 94 (±0.5)
Height over terminals (mm): 97,5 (±0.5)
Mass (kg): 2.7
Terminal Type
FASTON - Quickfit / release (JST where stated): 6.35
Operating Temperature Range
Storage (in fully charged condition): -20°C to +60°C
Charge: -15°C to +50°C
Discharge: -20°C to +60°C
Storage
Capacity loss per month at 20°C (% approx.): 3
Case Material
Standard ABS (UL94:HB)
Charge Voltage
Float charge voltage at 20°C (V)/Block: 13.65 (±1%)
Float charge voltage at 20°C (V)/Cell: 2.275 (±1%)
Float Chg voltage tmp correction factor from std 20°C (mV):-3
Cyclic (or Boost) charge Voltage at 20°C (V)/Block: 14.5 (±3%)
Cyclic (or Boost) charge Voltage at 20°C (V)/Cell: 2.42 (±3%)
Cyclic Chg voltage tmp correction factor from std 20°C (mV): -4
Charge Current
Float charge current limit (A): No limit
Cyclic (or Boost) charge current limit (A): 2
Maximum Discharge Current
1 second (A): 105
1 minute (A): 42
Impedance
Measured at 1 kHz (mÙ): 24
Design Life & Approvals
EUROBAT Classification: General Purpose: 6 to 9
Yuasa design life at 20°C (yrs): up to 10
