Eizo ColorEdge CG2420 24.1" Creative Monitor
Stock Code:
CG2420
$2,552.00 (inc GST)
Downloads
Description
Eizo ColorEdge CG2420 24.1" Creative Monitor
Hassle-free maintenance and optimal color reproduction for professionals to express their vision.
Let your imagination soar with this professional-level model for use in photography, design, print, and post production. It features a built-in self calibration sensor for hassle-free monitor maintenance, vivid colors reproduced to industry standards, and exceptionally high contrast for producing true blacks.
Simple and Precise Colour Management
Built-in Sensor to Automate Your Workflow

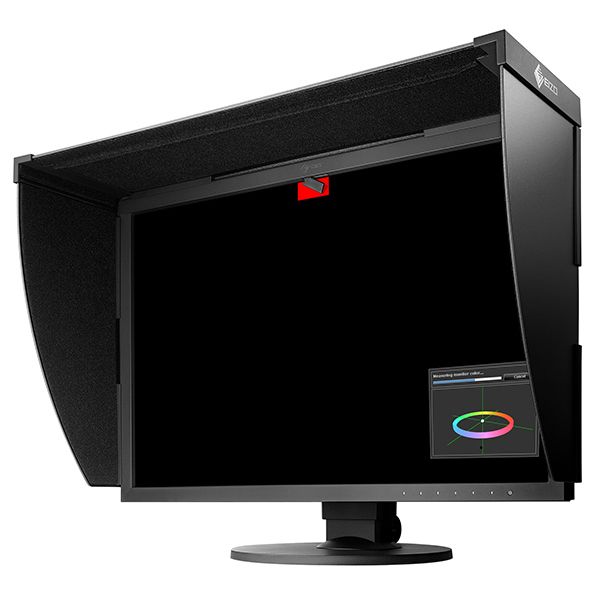

Automate your calibration with the sensor that is housed within the front bezel. The sensor swings onto the screen only when calibrating, eliminating the need for a third-party calibration device. It even operates while the monitor is in portrait mode.
ColorNavigator 7 Colour Management Software
ColorNavigator 7 is the latest calibration and quality control software for ColorEdge colour management monitors. It combines all the features of EIZO's previous colour management software, ColorNavigator 6 and ColorNavigator NX, to create a new and improved solution for creatives in a range of fields. The proprietary software makes calibration simple and produces predictable results for photography, design, print, and video creation.
ColorNavigator Network Quality Control Software
ColorNavigator Network provides centralized quality control of ColorEdge monitors that have ColorNavigator 7 or NX installed. Administrators can set colour modes, schedule self-calibration, register or adjust asset management settings, and other tasks whether the monitors are local or remote. ColorNavigator Network is hosted on a secure cloud server to free you from the initial investment and running costs of providing your own server.
Features for Creative Work
Vivid Colours Reproduced to Industry Standards
The wide colour gamut of the ColorEdge CG2420 reproduces almost the entire Adobe RGB colour space so images shot in Adobe RGB will be displayed correctly. Photos of vibrant blue skies and lush green forests are reproduced faithfully in a way that monitors limited to an sRGB colour space cannot display. The wide colour gamut also ensures reproduction of almost the entire ISO-coated and US web-coated CMYK colour spaces used in printing.
10-bit Simultaneous Display
Using the DisplayPort or HDMI inputs, the ColorEdge CG2420 offers 10-bit simultaneous display* from a 16-bit look-up-table (LUT) which means it can show more than one billion colours simultaneously. This is 64 times more colours than you get with 8-bit display, resulting in smooth colour gradations and reduced Delta-E between two adjacent colours.
Adjusted at the Factory for Smooth Colour Gradations
The gamma level for each ColorEdge monitor is adjusted at the factory by measuring the R, G, and B gamma values from 0 - 255, then using the monitor's 16-bit look-up-table (LUT) to select the most appropriate tones and achieve the desired value. This ensures the smoothest colour gradations in your images.
Stable Display Technology for Unrivalled ColorEdge Quality
The color and brightness of an LCD monitor can shift due to changes in ambient temperature and the temperature of the monitor itself. ColorEdge monitors are equipped with a temperature sensor for accurately measuring the temperature inside the monitor, as well as estimating the temperature of the surrounding environment. With this temperature sensing and estimation technology, the monitor adjusts in real-time so gradations, color, brightness, and other characteristics continue to be displayed accurately. Read more about image quality stabilization in EIZO's White Paper.
Stable Color in Just 3 Minutes
A typical monitor takes 30 minutes or more for its brightness, chromaticity, and tone characteristics to stabilize. The ColorEdge CG2420 takes a mere 3 minutes. Whether you are working in a studio or taking the monitor with you on location, you get reliable color display soon after turning the monitor on.
Uniformity Across the Screen
LCD monitors commonly exhibit fluctuations in brightness and chromaticity across the screen, affecting color accuracy. To counter this, ColorEdge monitors are equipped with EIZO's patented digital uniformity equalizer (DUE) technology which corrects deviations in every tone across the screen to ensure stable display.
Wide Viewing Angles with IPS Panel
The 178° wide viewing angles afforded by the IPS panel technology allow two or more people to view the screen at once with little change in color or contrast.
Feature for Video Editing and Post Production
True Black Display
In compliance with the DCI standard, the ColorEdge CG2420 offers a high contrast ratio of 1500:1* for producing true blacks that are otherwise difficult to display on a typical LCD monitor. When viewing the screen from an angle in a dimly lit room, dark tones typically appear washed out due to the display characteristics of LCD backlights. The CG Series is equipped with a retardation film which allows tones to retain their depth even when viewed from an angle.
Sleek, User-Friendly Design
Slimmer Bezels
The slim cabinet features unobtrusive frames that are 39% slimmer than its predecessor's so you can focus more on the screen.
Seamless Electrostatic Switches
The flat design uses electrostatic switches on the front bezel in place of traditional buttons for seamless access to monitor settings.
Built-in Carrying Handle

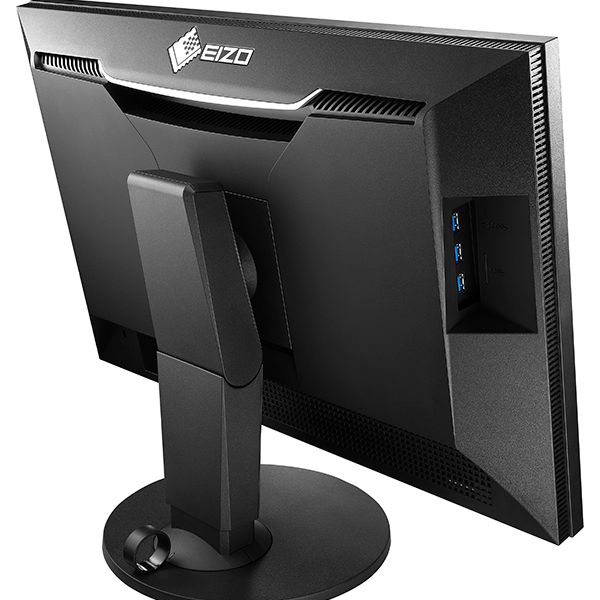

A carrying handle on the back of the monitor allows you to easily move it from one location to another.
Easy-Access USB Ports
The monitor is equipped with three easy-to-access USB 3.0 ports, including one port for battery charging devices such as a smartphone.
Features for Comfort and Ease-of-Use
Minimized Reflections with Non-Glare Panel
The monitor is equipped with an IPS non-glare panel for high visibility. It also uses dimming technology to minimize flicker and help prevent eye fatigue for a more comfortable working environment.
I/P Conversion for Flicker-Free Display
The HDMI input of the ColorEdge CG2420 supports I/P (interlace/progressive) conversion for converting the interlace signals from TV and video into progressive signals for flicker-free display.
Light-Shielding Hood

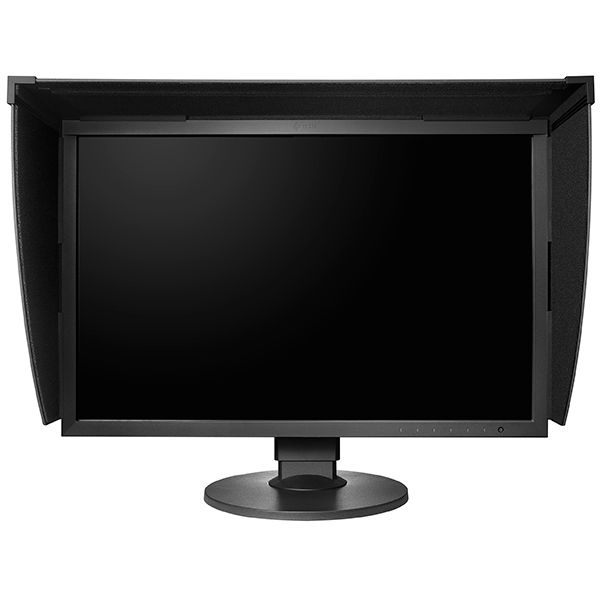

The CG Series comes bundled with a shading hood that effectively prevents glare on the monitor's screen caused by ambient lighting. The ColorEdge CG2420's shading hood is newly designed and attaches to the monitor magnetically. This allows the users to attach the hood quickly and easily without needing to connect separate parts.
Ergonomic Stand for Comfort and Convenience
Adjust the screen to the most comfortable angle and reposition it to show your work to a colleague or client. The monitor comes with a versatile stand that offers height, tilt, and swivel adjustments as well as portrait display.
Multiple Inputs
DisplayPort, HDMI, and DVI-D inputs are included and support various types of graphics boards. The HDMI input also offers direct connection with digital cameras.
Commitment to Quality
Zero Bright Pixels
EIZO guarantees its ColorEdge monitors will be free from bright sub-pixels for six months from the date of purchase.
Brightness and Color Warranty
The brightness and color of the ColorEdge CG2420 is warranted for up to 10,000 hours from the date of purchase. When used at a color temperature of 5000 - 6500K, a brightness level of at least 120 cd/m2 is warranted.
Certified for Quality and Performance
The monitor has obtained TUV Reinland's Color Accuracy (Quick Stability grade) certification. Color Accuracy is the first quality and performance criterion to measure the color accuracy of display devices for multiple graphics fields such as photography, post production, design, and printing.
It is also recognized by Fogra as a Class A FograCert Softproof Monitor. Using it in a FograCert Softproofing System ensures designers, print specifiers, and print producers can rely on the soft proof for predictable and consistent results.
Used by ColorEdge Ambassadors
The ColorEdge Ambassador Program showcases professional photographer, designers, filmmakers, and other creatives who are committed to inspiring and educating artists around the world of all levels. The ColorEdge CG2420 is used by ColorEdge Ambassador Marco Olivotto from Italy in retouching and color correction.
Color Simulation Software
EIZO's UniColor Pro software simulates color blindness when used with select EIZO LCD monitors. It allows designers to see how their printed materials, signs, web contents, videos, etc. will appear to those with color blindness.
Used by Professional Creatives Worldwide
In 2015, EIZO established the ColorEdge Ambassador Program which showcases professional photographers, designers, filmmakers, and other creatives who are committed to inspiring and educating artists around the world. EIZO's Ambassadors – all of them ColorEdge users – are passionately dedicated to their craft and prepare the best equipment for realizing their creative vision.
Click Here to view Les Walkling's ColorEdge Ambassador Profile
Warranty with Safety and Trust
Click here for Warranty Information
Eizo ColorEdge CG2420 24.1" Creative Monitor
Model Variations: CG2420-BK
Panel
Type: IPS
Backlight: Wide-Gamut LED
Size: 24.1" / 61.1 cm
Native Resolution: 1920 x 1200 (16:10 aspect ratio)
Viewable Image Size (H x V): 518.4 x 324.0 mm
Pixel Pitch: 0.270 x 0.270 mm
Pixel Density: 94ppi
Grayscale Tones: DisplayPort, HDMI: 1,024 tones (a palette of 65 thousand tones), DVI: 256 tones (a palette of 65 thousand tones)
Display Colours: DisplayPort, HDMI: 1.07 billion from a palette of 278 trillion, DVI: 16.77 million from a palette of 278 trillion
Viewing Angles (H / V, typical): 178°, 178°
Brightness (typical): 400 cd/m2
Recommended Brightness for Calibration: 120 cd/m2 or less
Contrast Ratio (typical): 1500:1
Response Time (typical): 10 ms (Gray-to-gray)
Wide Gamut Coverage (typical): Adobe RGB: 99%, DCI-P3: 98%
Video Signals
Input Terminals: DisplayPort (HDCP 1.3), HDMI (Deep Colour, HDCP 1.4), DVI-D (HDCP 1.4)
Digital Scanning Frequency (H / V): DisplayPort, DVI: 26 - 78 kHz, 24 - 61 Hz
HDMI: 15 - 78 kHz, 24 - 61 Hz
USB
Upstream: USB 3.1 Gen 1: Type-B
Downstream: USB 3.1 Gen 1: Type-A x 3 (Battery Charging 10.5 W max. x1)
Power
Power Requirements: AC 100 - 240 V, 50 / 60 Hz
Maximum Power Consumption: 79W
Typical Power Consumption: 20W
Power Save Mode: 0.7W or less
Standby Mode: 0.6W or less
Built-in Calibration Sensor: Yes
Features & Functions
Brightness Stabilization: Yes
Digital Uniformity Equalizer: Yes
Preset Modes: Colour Mode (Custom, Adobe RGB, sRGB, Calibration)
OSD Languages: English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Others: Colour Adjustment (Brightness, Temperature, Gamma, Colour Gamut, Hue, Saturation, Clipping, Gain, Independent 6-Colour Control, Reset), Picture Expansion (Auto, Full Screen, Aspect Ratio, Dot by Dot), Input Colour Format, Input Range, Noise Reduction, Auto Input Detection, Menu Rotation, USB CHARGE Port, Power Save, Indicator, Beep, Input Skip, Mode Skip, Signal Info, Monitor Info, Key Lock, DP Power Save, DUE Priority, Signal Format, Monitor Reset, I/P Conversion
Physical Specifications
Dimensions (Landscape, W x H x D): 554.4 x 396 - 551 x 245 mm
Dimensions (Portrait, W x H x D): 362 x 565.4 - 647.2 x 245 mm
Dimensions (Without Stand, W x H x D): 554.4 x 362 x 64 mm
Dimensions (Landscape with Hood, W x H x D): 572.4 x 405 - 560 x 336 mm
Net Weight: 7.8 kg / 17.2 lbs
Net Weight (Without Stand): 5.0 kg / 11.0 lbs
Net Weight (With Hood): 8.5 kg / 18.7 lbs
Height Adjustment Range: 155 mm
Tilt: 35° Up, 5° Down
Swivel: 344°
Pivot: 90°
Hole Spacing (VESA Standard): 100 x 100 mm
Environmental Requirements
Operating Temperature: 0 - 35 °C
Operating Humidity (R.H., non condensing): 20 - 80 %
Certifications & Standards (Please contact EIZO for the latest information.): CB, CE, TUV/GS, cTUVus, FCC-B, CAN ICES-3 (B), VCCI-B, TUV/Ergonomics, TUV/Color Accuracy (Quick Stability), RCM, RoHS, WEEE, EAC, China RoHS, CCC, FograCert Softproofing System (class A)
Dedicated Software
Easy Screen-to-Print Colour Matching Tool Quick Colour Match: Supported
Proprietary Software
Colour Management Software ColorNavigator 7: Supported
Colour Management Software ColorNavigator 6: Supported
Dedicated Software
Monitor Management Software ColorNavigator NX Supported
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables: Mini DisplayPort - DisplayPort (2 m), DVI-D (2 m)
Others: AC power cord, USB cable, Setup guide, EIZO LCD Utility Disk (ColorNavigator software, PDF user's manual), Adjustment certificate, ScreenCleaner, Monitor hood, Mounting screw, Quick reference, Warranty card
