Eizo Radiforce GX240 21.3" 2MP Monochrome LCD Monitor
Stock Code:
GX240
POA
Downloads
Description

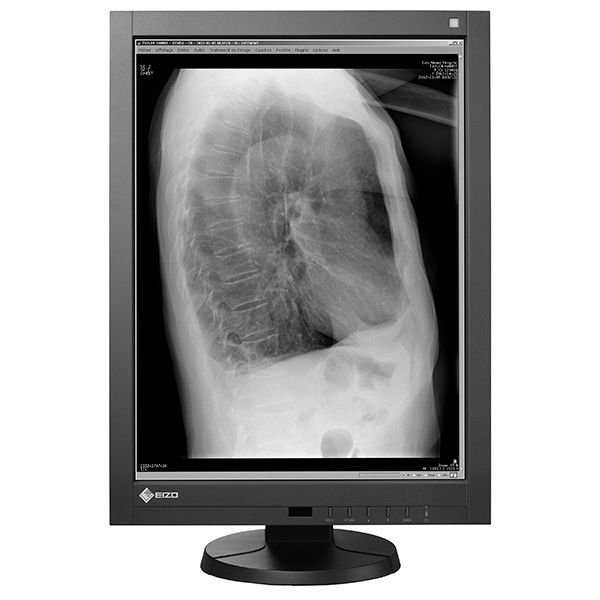

Eizo Radiforce GX240 21.3" 2MP Monochrome LCD Monitor
2 megapixel high-resolution diagnostic monochrome monitor ideal for a wide variety of tasks from viewing CR, DR, MRI and CT images to use as a PACS/HIS/RIS terminal. High-definition and multifunctional model featuring precise calibration compliant with the DICOM Part 14 standard.
Environmentally-Friendly LED Backlight
By utilizing an energy-efficient LED as a backlight, the monitor achieves a high-brightness and low power consumption at the same time. Unlike conventional CCFL backlights, LED backlights deteriorate more slowly and thus the monitor offers a longer service life. Since the LED backlight is mercury free, it will reduce any potential impact on the environment when it is disposed of.
Displaying with Separate Brightness Levels
For monochrome monitors, Hybrid Gamma function automatically distinguishes the medical images from the non-medical areas such as the tool palettes and displays each one at its optimum brightness. Decreasing the tool palette area's brightness leads to less eye fatigue.
Consistency with DICOM Part 14 Calibration
With the bundled RadiCS LE quality control software, a simplified calibration compliant with the DICOM Part 14 standard can be performed to correct the brightness and grayscale tones of the monitor ensuring the most accurate and consistent shadings possible over time.
Diagnostic Precision with DICOM Part 14 Factory Adjustment
To ensure the most accurate and consistent shadings possible, EIZO carefully measures and sets every grayscale tones on the production line to produce a monitor compliant with DICOM Part 14.
Easy Calibration with Integrated Front Sensor
An Integrated Front Sensor (IFS) housed within the front bezel measures brightness and grayscale tones and calibrates to the DICOM Part 14 standard. Without having to connect and disconnect, an IFS performs QC tasks and does not interfere with the viewing area. This dramatically cuts monitor quality control workload and maintenance costs.
Presence Sensor for Power Savings
The presence sensor feature unites convenience with savings by ensuring that the monitor conserves power when it is not in use. The presence sensor prompts the monitor to switch to power save mode when it detects the user is away from the monitor, and then resume normal operation when the user returns.
10-Bit Simultaneous Grayscale Display
10-bit (1,024 tones) simultaneous grayscale display extends grayscale fidelity to the boundaries of human visual perception abilities and helps radiologists discern the finest nuances within an image.
Brightness Uniformity for a Steadier Image Across the Screen
The Digital Uniformity Equalizer (DUE) function provides optimum brightness uniformity which is difficult to attain due to the characteristics of LCD monitors.
Mode Selection for Optimum Viewing
Selectable with the front panel buttons, the CAL Switch function allows for various imaging modes of different modalities such as CR, CT, and endoscope images. Furthermore, auto mode settings can be made with the Auto CAL Switch function.
Wide Viewing Angles for Multiple People Use
Wide Viewing angles with minimal color shift when viewed from the side.
Quick Brightness Stabilization for Instant Viewing
At startup or upon wakeup, the EIZO patented drift correction function quickly stabilizes the brightness level. In addition, a sensor measures the backlight brightness and compensates for brightness fluctuations caused by the ambient temperature and the passage of time.
Versatile Positioning for Improved Operability
EIZO's highly versatile stand offers tilt, swivel and a wide height adjustment range enabling you to use the monitor with greater comfort.
Brightness Stability Within Usage Time Guaranteed
EIZO's confidence in its product quality extends to brightness stability which is also covered during the usage time specified in the warranty.
Customer Assurance with Medical Standards
Meets the strictest medical, safety, and EMC emission standards.
Supporting a Healthy Life
Starting with our message “Making Each Life Visual”, we aim to support optimal medical care for each and every individual through accurate diagnosis and treatment afforded by our innovative healthcare technologies.
Environmentally Friendly
Our healthcare products are designed to promote energy efficiency for reduced power consumption and CO2 emissions, while maintaining the high performance and functionality needed in healthcare. We also implement a responsible after-service recycling system.
Warranty with Safety and Trust
Click here for Warranty Information
Eizo Radiforce GX240 21.3" 2MP Monochrome LCD Monitor
Model Variations:
GX240-CL-BK: Clear Base, with stand, black
GX240-CL-BK-P: Pairing, with stand, black
Panel
Type: Monochrome (IPS)
Backlight: LED
Size: 54 cm / 21.3"
Native Resolution: 1200 x 1600 (3:4 aspect ratio)
Viewable Image Size (H x V): 324.0 x 432.0 mm
Pixel Pitch: 0.270 x 0.270 mm
Grayscale Tones: 10-bit (DisplayPort): 1,024 from a palette of 16,369 tones
8-bit: 256 from a palette of 16,369 tones
Viewing Angles (H / V, typical) :176° / 176°
Brightness (typical): 1200 cd/m2
Recommended Brightness for Calibration : 500 cd/m2
Contrast Ratio (typical): 1400:1
Response Time (typical): 40 ms (on / off)
Video Signals
Input Terminals: DisplayPort, DVI-D
Digital Scanning Frequency (H / V): 31 - 100 kHz / 59 - 61 Hz
USB
Upstream USB 2.0: Type-B
Downstream: USB 2.0: Type-A x 2
Power
Power Requirements: AC 100 - 120 V, 200 - 240 V: 50 / 60 Hz
Maximum Power Consumption: 76 W
Typical Power Consumption: 29 W
Power Save Mode: 1.6 W or less
Sensor: Backlight Sensor, Integrated Front Sensor, Presence Sensor, Ambient Light Sensor
Features & Functions
Brightness Stabilization: Yes
Digital Uniformity Equalizer: Yes
Preset Modes: CAL Switch
OSD Languages: English, German, French, Italian, Japanese, Simplified
Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Net Weight: 10.2 kg
Net Weight (Without Stand): 7.5 kg
Hole Spacing (VESA Standard): 100 x 100 mm
Certifications & Standards (Please contact EIZO for the latest information.):
CE (Medical Device Directive), EN60601-1, ANSI/AAMI ES60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, CAN ICES-3 (B), RCM, RoHS, China RoHS, WEEE, CCC, EAC
FDA: 510(k) Clearance for General Radiography
Dedicated Software
Monitor Quality Control Software RadiCS: Supported
Supplied Accessories: (May vary by country. Please contact EIZO for details.)
Signal Cables: DVI-D (3 m), DisplayPort (3 m)
Others: AC power cord (3 m), USB cable (3 m), Utility Disk (RadiCS LE, ScreenManager Pro for Medical, user's manual)
