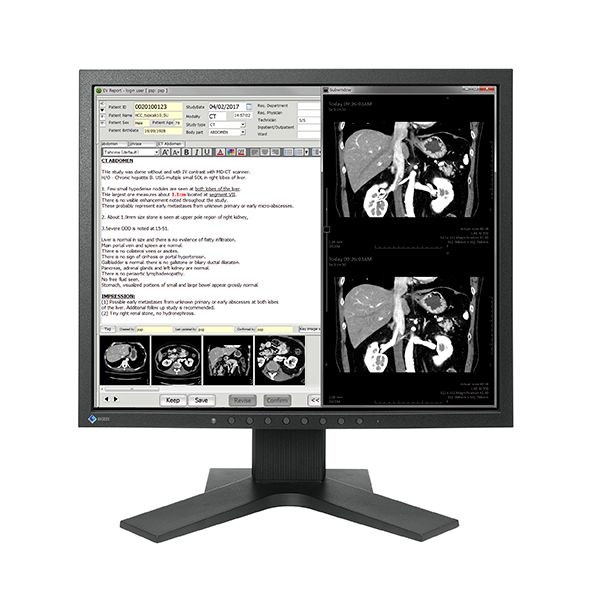

Eizo Radiforce MX194 19.0" 1MP Colour LCD Monitor
Stock Code:
MX194
POA
Downloads
Description
Eizo Radiforce MX194 19.0" 1MP Colour LCD Monitor
19-inch, 1 megapixel monitor with DICOM Part 14 calibration for viewing DSA, CT, and MRI.
Attain Steady Images Across the Screen
The Digital Uniformity Equalizer (DUE) function helps to even out fluctuations in brightness and chroma on different parts of the screen to provide smoother images.
Long-Term Brightness Stability
EIZO guarantees 10,000 hours of use when the brightness is maintained at the recommended 180 cd/m2 (maximum 350 cd/m2). As the monitor is compliant with DICOM Part 14, it can faithfully reproduce medical images such as DSA, CT, and MRI, even over long-term use.
Make the Precise Diagnosis
EIZO carefully measures and sets each grayscale tone for compliance with DICOM Part 14. Furthermore, at startup or upon wakeup, the EIZO-patented drift correction function quickly stabilizes the brightness level and compensates the brightness fluctuations caused by the ambient temperature and the passage of time, allowing medical images to be faithfully reproduced with stable brightness and grayscale.
Simplified Calibration to DICOM Part 14
Perform a simplified calibration compliant with DICOM Part 14 using the bundled RadiCS LE quality control software. RadiCS LE corrects the brightness and grayscale tones of the monitor to maintain image accuracy and consistency over time.
Image Clarity with High Contrast
The MX194 adopts a high contrast VA panel allowing images to be viewed with clarity. With deep blacks, contrast between colors is significant for clear reproduction of color images.
Gain Smooth Color Reproduction
The monitor can support 10-bit input for each RGB color, displaying more than one billion colors simultaneously. This ensures accurate reproduction of color tones for 3D color rendering and image fusion.
10-bit color graphics board and 10-bit color viewer software needed for 10-bit color display.
Select the Ideal Mode for Modalities
Choose various modes for different modalities such as CR, CT, and endoscopy with the CAL Switch function. Using the bundled RadiCS LE software, modes can be set to automatically switch to optimal image viewing conditions.
Improve Operability
EIZO's highly versatile stand offers, tilt, swivel, and a wide height adjustment range, enabling you to use the monitor with greater comfort.
Rest Assured with Medical Qualifications
The monitors meet the strictest medical, safety, and EMC emission standards.
Supporting a Healthy Life
Starting with our message “Making Each Life Visual”, we aim to support optimal medical care for each and every individual through accurate diagnosis and treatment afforded by our innovative healthcare technologies.
Environmentally Friendly
Our healthcare products are designed to promote energy efficiency for reduced power consumption and CO2 emissions, while maintaining the high performance and functionality needed in healthcare. We also implement a responsible after-service recycling system.
Warranty with Safety and Trust
Click here for Warranty Information
Eizo Radiforce MX194 19.0" 1MP Colour LCD Monitor
Model Variations:
MX194-BK: with stand, black
Panel
Type: Color (VA)
Backlight: LED
Size: 48.1 cm / 19.0"
Native Resolution: 1280 x 1024 (5:4 aspect ratio)
Viewable Image Size (H x V): 376.3 x 301.0 mm
Pixel Pitch: 0.294 x 0.294 mm
Display Colors: 10-bit (DisplayPort): 1.07 billion from a palette of 543 billion (13-bit) colors
8-bit: 16.77 million from a palette of 543 billion (13-bit) colors
Viewing Angles (H / V, typical): 178° / 178°
Brightness (typical): 350 cd/m2
Contrast Ratio (typical): 2000:1
Response Time (typical): 20 ms (black-white-black)
Video Signals
Input Terminals: DisplayPort, DVI-D, D-Sub mini 15 pin
Digital Scanning Frequency (H / V): 31 - 64 kHz / 59 - 61 Hz
Analog Scanning Frequency (H / V): 24.8 - 80 kHz / 50 - 75 Hz
Sync Formats: Separate
USB
Upstream: USB 2.0: Type-B
Power
Power Requirements: AC 100 - 240 V: 50 / 60 Hz
Typical Power Consumption: 15 W
Maximum Power Consumption: 28 W
Power Save Mode: 0.6 W or less
Sensor: Backlight Sensor
Features & Functions
Brightness Stabilization: Yes
Digital Uniformity Equalizer: Yes
Preset Modes: CAL Switch (DICOM, CAL1, CAL2, Custom, sRGB, Text)
OSD Languages: English, German, French, Italian, Japanese, Simplified
Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Net Weight: 6 kg
Net Weight (Without Stand): 4.2 kg
Hole Spacing (VESA Standard): 100 x 100 mm
Certifications & Standards (Please contact EIZO for the latest information.):
CE (Medical Device), EN60601-1, ANSI/AAMI ES60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, CAN ICES-3 (B), RCM, RoHS, China RoHS, WEEE, CCC, EAC
FDA: 510(k) Clearance for General Radiography
Dedicated Software
Monitor Quality Control Software RadiCS Supported
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables: DisplayPort (3 m)
Others: AC power cord (3 m), USB cable (3 m), Utility Disk (RadiCS LE, PDF installation manual), instructions for use
