Ecotron EPX-1600B Battery Portable X-Ray Generator
Stock Code:
EPX-F1600B
POA
Downloads
Description

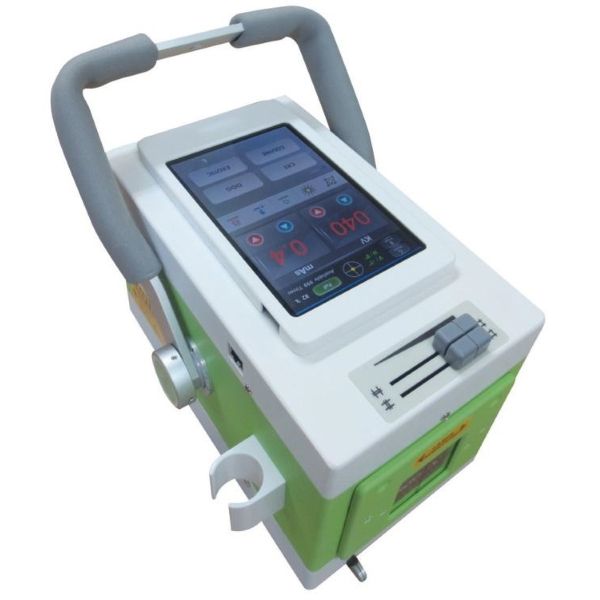

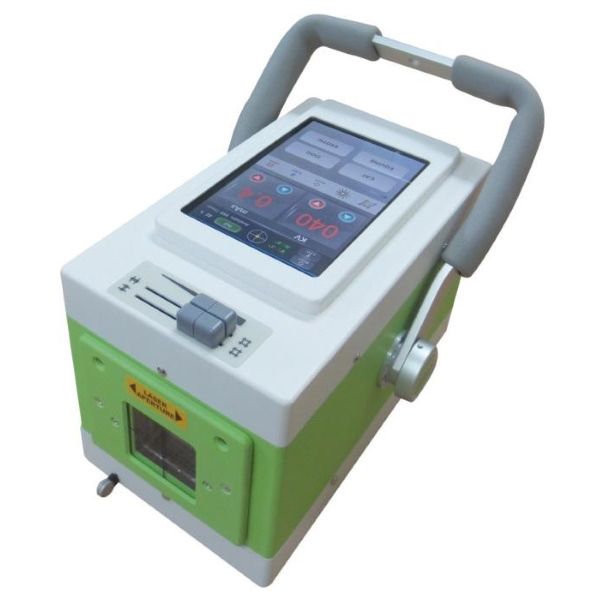

Ecotron EPX-1600B Battery Portable X-Ray Generator
The EFX-F1600B is compact battery operated portable x-ray generator suitable for veterinary mobile use, weighing in at only 8.2kG and with 90kV and 20mA range puts it ahead of most of the competition in this weigh range.
Key Features:
- Provide high resolution imaging at lower dosages.
- Durable design with solid body.
- Touch screen console
- Calibrated cassette size indicator dials
- Available with Inverted control panel for table use.
- Two stage dynamic, Auto line compensation.
- Easy access to DR systems.
- Collimator with High Lux LED light and Dual Integrated Laser Pointers
- Wired handswitch
- Battery with Super Capacitor Technology
- Wireless/Wire PC interface(Optional)
- EMS-1000 or EMS-H Stand (Optional)
- Podoblock Stat-X Stand Range (Optional)
- Podoblock JiXtr Portable X-Ray Generator(Optional)
Click here for Warranty Information
Ecotron EPX-1600B Battery Portable X-Ray Generator
- Maximum Output Power: 1.6kW
- Generator Frequency: 100kHz
- kV Range: 40-90kV in 1kV steps
- mA Range: 10-20mA
- mAs Range: 0.4-100mAs
- Focal Spot: 0.8mm x 0.8mm
- Target Angle: 16 Deg
- Anode Heat Storage: 7kHU
- Input Voltage: 110V/230V
- Phase/Frequency: Single/50-60Hz
- Battery Voltage: 29.4VDC
- Battery Life: 999 exposures with one charge (typical)
- Battery Type: Lithium Ion Capacitor
- Dimensions: 335x153x170mm
- Machine Weight: 8.2kG
- Shipping Weight: 20kG
