Eizo RadiForce MX242W 24.1" 2MP Clinical Review Monitor, Black
Downloads
Description

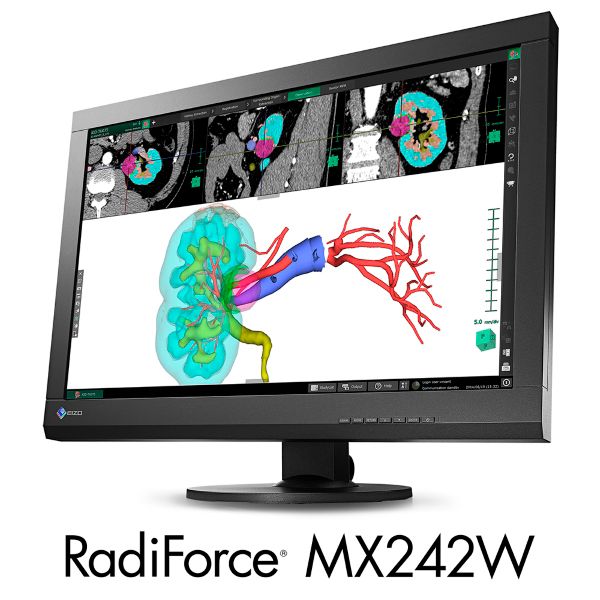

RadiForce MX242W 24.1" 2MP Clinical Review Monitor
A 24.1-inch widescreen monitor with DICOM Part 14 calibration support, smooth color reproduction, and screen management for increased work efficiency.
Make the Precise Diagnosis
EIZO carefully measures and sets each grayscale tone to create a monitor compliant with DICOM Part 14. This ensures the most consistent shading possible, allowing for the most accurate diagnosis.
Maintain the Precision
Perform a simplified calibration compliant with DICOM Part 14 using the bundled RadiCS LE quality control software. RadiCS LE corrects the brightness and grayscale tones of the monitor to maintain image accuracy and consistency over time.
Keep Your Monitor Lit Longer
The LED backlight offers a significantly longer service life over conventional CCFL backlights. In addition, you can maintain high brightness while simultaneously lowering power consumption. Since the LED backlight is mercury-free, it will also reduce any potential impact on the environment when disposed of.
View More with Widescreen
The widescreen 16:10 aspect ratio provides significantly more horizontal space than the aspect ratios of conventional square monitors so that you can keep tool palettes open without covering the window you are working on.
Comfortably View from Any Angle
The wide viewing angles of the IPS panel allow you to view the sreen from the side with minimal color shift, also permitting more than one person to view the monitor comfortably at the same time.
View Accurate Images in Moments
The EIZO-patented drift correction function quickly stabilizes the brightness level of the monitor upon startup or wakup from sleep mode, giving you the most accurate images quickly ready for viewing. In addition, a sensor measures the backlight brightness fluctuations caused by ambient temperature and aging for a consistently stable display.
Attain Steady Images Across the Screen
The Digital Uniformity Equalizer (DUE) function helps to even out fluctuations in brightness and chroma on different parts of the screen to provide smoother images.
Gain Smooth Color Reproduction
The monitor can support 10-bit input for each RGB color, displaying more than one billion colors simultaneously. This ensures accurate reproduction of color tones for 3D color rendering and image fusion.
10-bit color graphics board and 10-bit color viewer software needed for 10-bit color display.
Select the Ideal Mode for Modalities
The CAL Switch function allows you to choose various modes for different modalities such as CR, CT, and endoscopy and can be conveniently accessed using the monitor's front panel buttons.
Stay Confident with Stable Brightness
EIZO's confidence in its product quality extends to brightness stability. 5 years or 15,000 hours of usage time is guaranteed when used at the recommended brightness of 180 cd/m2.
Improve Operability
EIZO's highly versatile stand offers, tilt, swivel, and a wide height adjustment range, enabling you to use the monitor with greater comfort.
Rest Assured with Medical Qualifications
The monitors meet the strictest medical, safety, and EMC emission standards.
Supporting a Healthy Life
Starting with our message “Making Each Life Visual”, we aim to support optimal medical care for each and every individual through accurate diagnosis and treatment afforded by our innovative healthcare technologies.
Environmentally Friendly
Our healthcare products are designed to promote energy efficiency for reduced power consumption and CO2 emissions, while maintaining the high performance and functionality needed in healthcare. We also implement a responsible after-service recycling system.
Warranty with Safety and Trust
Click here for Warranty Information
RadiForce MX242W 24.1" 2MP Clinical Review Monitor
Model Variations:
MX242W-BK: with stand, black
Panel
Type: Color (IPS)
Backlight: LED
Size: 61 cm / 24.1"
Native Resolution: 1920 x 1200 (16:10 aspect ratio)
Viewable Image Size (H x V): 518.4 x 324.0 mm
Pixel Pitch: 0.270 x 0.270 mm
Display Colours: 10-bit (DisplayPort): 1.07 billion from a palette of 543 billion (13-bit) colors
8-bit: 16.77 million from a palette of 543 billion (13-bit) colors
Viewing Angles (H / V, typical): 178° / 178°
Brightness (typical): 350 cd/m2
Contrast Ratio (typical): 1000:1
Response Time (typical): 12 ms (black-white-black)
Video Signals
Input Terminals: DisplayPort, DVI-I
Digital Scanning Frequency (H / V): 31 - 76 kHz / 59 - 61 Hz
Analog Scanning Frequency (H / V): 26 - 76 kHz / 49 - 71 Hz
Sync Formats: Separate
USB
Upstream USB 2.0: Type-B
Downstream: USB 2.0: Type-A x 2
Power
Power Requirements: AC 100 - 240 V: 50 / 60 Hz
Typical Power Consumption: 31 W
Maximum Power Consumption: 68 W
Power Save Mode: 0.5 W or less
Sensor: Backlight Sensor
Features & Functions
Brightness Stabilization: Yes
Digital Uniformity Equalizer: Yes
Preset Modes: CAL Switch (DICOM, Custom, CAL, Text)
OSD Languages: English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Net Weight: 8.7 kg
Net Weight (Without Stand): 6 kg
Hole Spacing (VESA Standard): 100 x 100 mm
Certifications & Standards (Please contact EIZO for the latest information.): CE (Medical Device), EN60601-1, ANSI/AAMI ES60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, CAN ICES-3 (B), RCM, RoHS, China RoHS, WEEE, CCC, EAC, TGA Class I Medical Device, FDA: 510(k) Clearance for General Radiography
Dedicated Software
Monitor Quality Control Software RadiCS: Supported
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables: DVI-D (3 m), DisplayPort (3 m)
Others: AC power cord (3 m), USB cable (3 m), Utility Disk (RadiCS LE, ScreenManager Pro for Medical, PDF instructions for use, PDF installation manual), instructions for use
