Eizo RadiForce RX1270 30.9" 12MP Colour LCD Monitor
Stock Code:
RX1270
POA
Downloads
Description
RadiForce RX1270 12MP 30.9" Colour LCD Monitor
Compact 12 megapixel multi-modality monitor packed full of features to improve comfort and work efficiency.

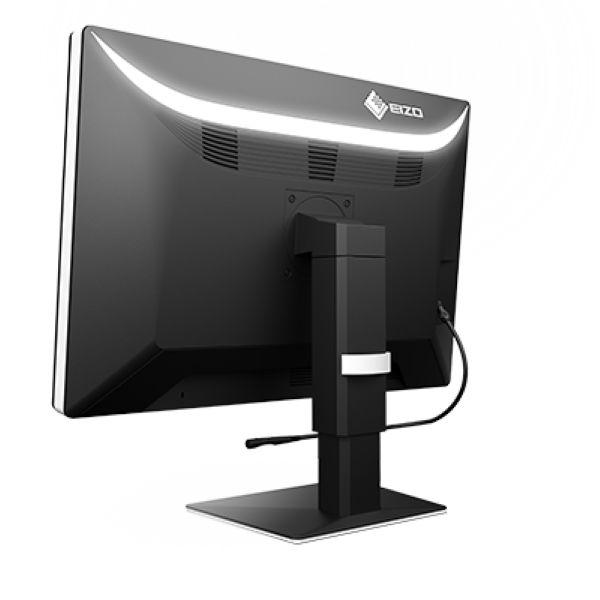

Eye Relief with Comfort Light
The built-in comfort light gently illuminates the wall behind the monitor without interfering with the low ambient lighting typical of reading rooms. This reduces the contrast between the wall and monitor to prevent eye fatigue without creating glare on the screen.
Easily Navigate Your Workspace
It is also equipped with a spotlight which allows you to see printed documents or your keyboard. The position can be easily adjusted in order to achieve the ideal lighting.
Streamline Your Workflow
Display various images on an ultra-high resolution 12 megapixel (4200 x 2800 pixels) single screen with the freedom of image layout. It provides streamlined visibility compared with multi-monitor environments, leading to greater efficiency.
Streamline Your Workflow
Display various images on an ultra-high resolution 12 megapixel (4200 x 2800 pixels) single screen with the freedom of image layout. It provides streamlined visibility compared with multi-monitor environments, leading to greater efficiency.
Evolve Your Image Reading
As more image modalities become digitalized, radiologists are viewing an increasing amount of information on their screens. EIZO's unique Work-and-Flow technology alleviates the complexity of the imaging workflow with new functions developed with the radiologist in mind. Users can take advantage of Work-and-Flow features with the RadiForce monitor and bundled RadiCS LE software.
Quickly Pinpoint Focus Areas
With the Point-and-Focus function, you can quickly select and focus areas of your concern with just your mouse and keyboard. Change the brightness and grayscale tones of certain points on the screen to make interpretation easier.
Quick Information Referencing
The Hide-and-Seek function enables users to easily hide the PinP (Picture in Picture) window not currently in use and reopen as needed by moving the mouse cursor to the edge of the screen. This eliminates the need for an extra monitor while still allowing quick and efficient viewing of reports or patient charts.
Barrier-Free Workstyle
The Switch-and-Go function allows USB switching through the monitor, enabling the use of a single keyboard and mouse across two connected PCs.This is convenient for dual-monitor/PC environments, or when changing inputs on a single monitor connected to two PCs.
Furthermore, you can use Switch-and-Go with Hide-and-Seek to display the screen of a notebook PC (connected via HDMI) as a separate window on the monitor. The window can be hidden or shown on command using a single mouse and keyboard for quick access to more information.
Display Both Monochrome and Colour
The Hybrid Gamma PXL function automatically distinguishes between monochrome and color images pixel by pixel, creating a hybrid display where each pixel has optimum grayscale. This ultimately improves efficiency by allowing both monochrome and color images to be viewed on one screen.
Achieve Clarity True to the Source Data
A medical monitor needs to be capable of high brightness in order to meet performance standards. However, in order to achieve high brightness in an LCD panel, the pixel aperture ratio has to be increased. This causes a typically unavoidable decline in sharpness. With EIZO's unique Sharpness Recovery technology, the decrease in sharpness (MTF) is restored . This allows you to display an image safely on the monitor that is true to the original source data, even at high brightness levels.
MTF measures numerically how faithfully the panel transfers detail from the original image data for viewing. When Sharpness Recovery is turned on, in the case of a 2 pixel line pair (spatial frequency of 1.609 cycles/mm) the MTF increases by approximately 56%.
Variations for Specific User Needs
EIZO offers anti-glare (AG) and anti-reflection (AR) screen variations to suit user environments. AG treatment is ideal for exceptionally bright environments and drastically reduces glare from ambient lighting. AR treatment is ideal for moderately-lit environments to reduce mild screen glare while maintaining crisp text and images.
Clear, High Density Images
With 0.1554 mm pixel pitch, high-density, high-definition image is achieved without appearing grainy.
One-Cable Connection
With DisplayPort 1.4, a 12 megapixel signal can be supported at 60 frames per second using a single cable between the monitor and the workstation.
Stable Display Using AI
The color and brightness of an LCD monitor can shift due to changes in ambient temperature and the temperature of the monitor itself. Medical Imaging RadiForce monitors are equipped with a temperature sensor for accurately measuring the temperature inside the monitor, as well as estimating the temperature of the surrounding environment. With this technology, the monitor adjusts in real-time so gradations, color, brightness, and other characteristics continue to display accurately.
Furthermore, EIZO uses AI (artificial intelligence) in the estimation algorithm of the RX1270 so it can distinguish between changing temperature patterns to calculate an even more accurate correction.
Make the Precise Diagnosis
EIZO carefully measures and sets each grayscale tone to create a monitor compliant with DICOM Part 14. This ensures the most consistent shading possible, allowing for the most accurate diagnosis.
Manage Effortless Quality Control
With the RadiCS LE software (included) and Integrated Front Sensor (IFS) built into the front bezel, you can easily calibrate to DICOM Part 14 without having to mount and remove an external sensor.
Rest Assured with Medical Qualifications
The monitors meet the strictest medical, safety, and EMC emission standards.
Warranty with Safety and Trust
Click here for Warranty Information
RadiForce RX1270 12MP 30.9" Colour LCD Monitor
Model Variations
RX1270-BK: Anti-Glare coating, with stand, black
RX1270-ARBK: Anti-Reflection coating, with stand, black
Panel
Type: Colour (IPS)
Backlight: LED
Size: 78.4 cm / 30.9"
Native Resolution: 4200 x 2800 (3:2 aspect ratio)
Viewable Image Size (H x V): 652.7 x 435.1 mm
Pixel Pitch: 0.1554 x 0.1554 mm
Display Colours:10-bit (DisplayPort): 1.07 billion from a palette of 543 billion (13-bit) colors, 8-bit: 16.77 million from a palette of 543 billion (13-bit) colors
Viewing Angles (H / V, typical): 178° / 178°
Brightness (typical): 1200 cd/m2
Recommended Brightness for Calibration: 500 cd/m2
Contrast Ratio (typical): 1500:1
Response Time (typical): 12 ms (black-white-black)
Video Signals
Input Terminals: DisplayPort x 2, HDMI
Digital Scanning Frequency (H / V): 31 - 175 kHz / 29 - 61 Hz
USB
Upstream USB: 2.0: Type-B x 2
Downstream USB: 2.0: Type-A x 3
Power
Power Requirements: AC 100 - 240 V: 50 / 60 Hz
Typical Power Consumption: 77 W
Maximum Power Consumption: 188 W
Power Save Mode: 2 W or less
Sensor: Backlight Sensor, Integrated Front Sensor, Ambient Light Sensor
Features & Functions
Brightness Stabilization: Yes
Digital Uniformity Equalizer: Yes
Hybrid Gamma PXL: Yes
Work-and-Flow: Hide-and-Seek, Switch-and-Go, Point-and-Focus
Preset Modes: CAL Switch (DICOM, CAL1, CAL2, Custom, sRGB, Text)
OSD Languages: English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Net Weight: 15.6 kg
Net Weight (Without Stand): 11.5 kg
Hole Spacing (VESA Standard): 100 x 100 mm
Certifications & Standards
(Please contact EIZO for the latest information.)
CE (Medical Device), EN60601-1, ANSI/AAMI ES60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, CAN ICES-3 (B), RCM, RoHS, China RoHS, WEEE, CCC, EAC, TGA Class I Medical Device
FDA: Pending: 510(k) Clearance for Breast Tomosynthesis, Mammography, and General Radiography
Dedicated Software
Monitor Quality Control Software RadiCS Supported
Supplied Accessories
(May vary by country. Please contact EIZO for details.)
Signal Cables: DisplayPort (3 m) x 2, HDMI (2 m)
Others: AC power cord (3 m), USB cable (3 m) x 2, cable cover, Utility Disk (RadiCS LE, PDF installation manual), instructions for use
