EcoRay Ultra 100 High Powered (5kW) Portable X-Ray Generator with Skin Guards for Medical Use
Description

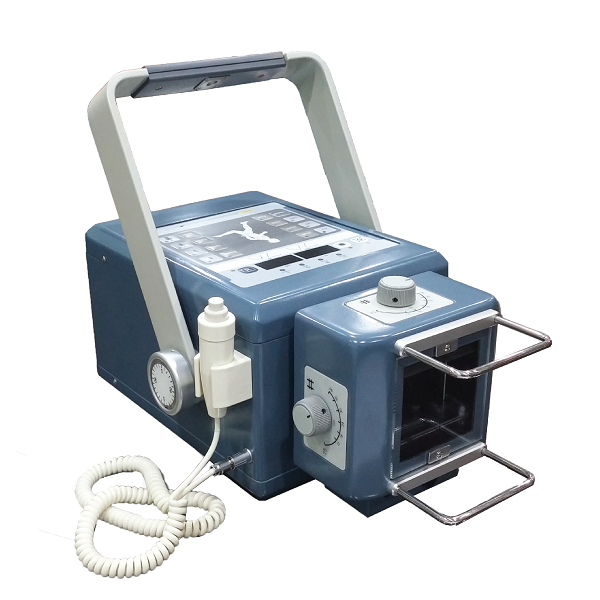

EcoRay Ultra 100 Portable X-Ray Generator
High Output Power
Ultra 100 provides up to 5kW and 100mA range. This conspicuous feature has sufficient capacity to exam the thickest part of the human body - e.g, Chest Position.
DAP Information
Pre-stored Dose Area Product (DAP) value of ULTRA 100 indicates entry radiation dose and allows reliable dose use for patient. DAP can be easily applied to assess and optimize patient dose.
Non-hazardous Laser Pointer
ULTRA 100 uses the safest collimator laser pointer, Class 1. Class 1 is verified as "NOT" hazardous to human eyes despite continues or frequent exposure to laser pointers.
Auto SID Measuring by Ultrasonic Sensor
The uniquely designed ULTRA 100 auto SID Ultrasonic Sensor is available in Max. 250cm SID (Source to Image Distance) with high measuring accuracy of +-1mm. The measured SID is automatically displayed in operation control panel.
Easy DR Configuration
ULTRA 100 is designed to meet your portable imaging DR application needs. The additional connection port for DR interface provides easy transition to digital radiography
Convenient Detector Connection
ULTRA 100 is connected directly to detector, so AGI box is NOT required for use with the detector. It provides more convenience to the user.
Key Features
- Auto SID
- Angle measurement by goniometer
- Compact design with reliable radiation output
- Infra-red light sensor for measuring SID
- Touchable embossing OP panel
- DR interface connector
- DAP (Dose Area Product) meter
- Mobile Stand as an optional item
EcoRay Ultra 100 Portable X-Ray Generator
Specifications:
- Generator Type: Monobloc design, High Frequency Inverter
- HV Generator: 5.0kW (100kv@50mA)
- Max kV / mA: 110kV / 100mA
- 40 - 110kV in 1kV Steps
- X-Ray Tube Focal Spot: 1.8mm x 1.8mm
- 0.32 - 200 mAs (26 Steps)
- mA Available: 25, 30, 35, 40, 50, 60, 80, 100mA
- SID measurement: Ultrasonic,Tape & Laser Pointer
- Memory: 128 APR
- 16 kg
- Power requirements: 230VAC, 10A, 50Hz
- Size: 396 x 203 x 227mm
- 2 Year Warranty
- In the box: Aluminium Carry Case, Spare Globe, Spare Fuse
- Specifications subject to change without notice
