Ecotron EPX-F2800 2.8kW Portable X-Ray Generator
Stock Code:
EPX-F2800
POA
Downloads
Description

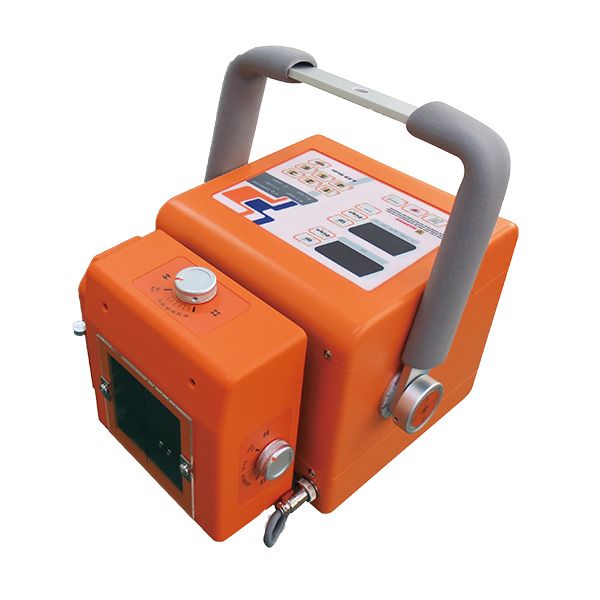

Ecotron EPX-F2800 2.8kW Portable X-Ray Generator
The EPX-F2800 is compact portable x-ray generator suitable for veterinary mobile use, weighing in at only 12kG and with 120kV and 40mA range puts it ahead of most of the competition in this weight range.
Key Features:
- Provide high resolution imaging at lower dosages.
- Durable design with solid body.

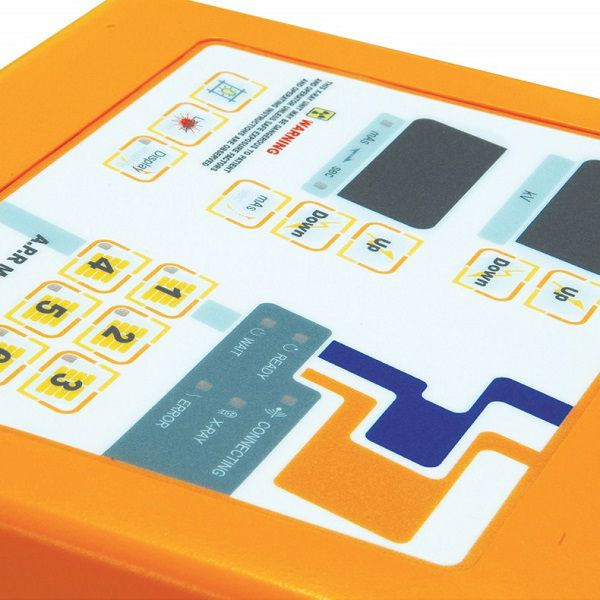

- Soft Touch Controls with Digital displays.

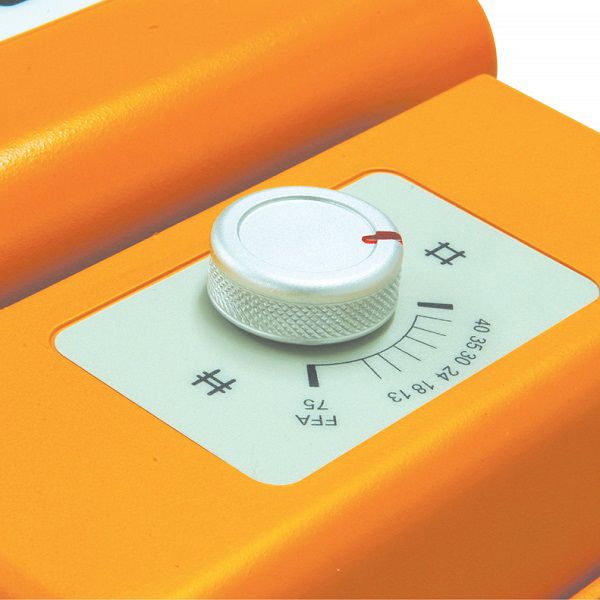

- Calibrated cassette size indicator dials
- Available with Inverted control panel for table use.
- Two stage dynamic, Auto line compensation.
- Easy access to DR systems.
- Dual Integrated Laser Pointer.
- Wired handswitch
- 6 metre power cord
- Wireless/Wire PC interface(Optional)
- EMS-1000 or EMS-H Stand (Optional)
- Podoblock Stat-X Stand Range (Optional)
- Podoblock JiXtr Portable X-Ray Generator(Optional)
Click here for Warranty Information
Ecotron EPX-F2800 2.8kW Portable X-Ray Generator
- Maximum Output Power: 2.8kW
- Generator Frequency: 70kHz
- kV Range: 40-120kV in 1kV steps
- mA Range: 12-40mA
- mAs Range: 0.4-100mAs
- Focal Spot: 1.2mm x 1.2mm
- Target Angle: 16 Deg
- Anode Heat Storage: 50kHU
- Input Voltage: 110V/230V
- Phase/Frequency: Single/50-60Hz
- Dimensions: 335x153x170mm
- Machine Weight: 12kG
- Shipping Weight: 22kG
