Ecotron EPX-F3200 3.2kW Portable X-Ray Generator
Stock Code:
EPX-F3200
POA
Downloads
Description

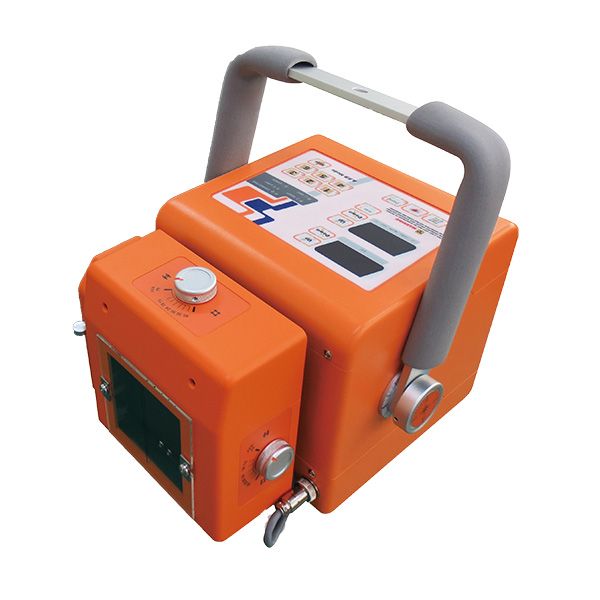

Ecotron EPX-F3200 3.2kW Portable X-Ray Generator
The EPX-F3200 is compact portable x-ray generator suitable for veterinary mobile use, weighing in at only 12kG and with 100kV and 60mA range puts it ahead of most of the competition in this weight range.
Key Features:
- Provide high resolution imaging at lower dosages.
- Durable design with solid body.

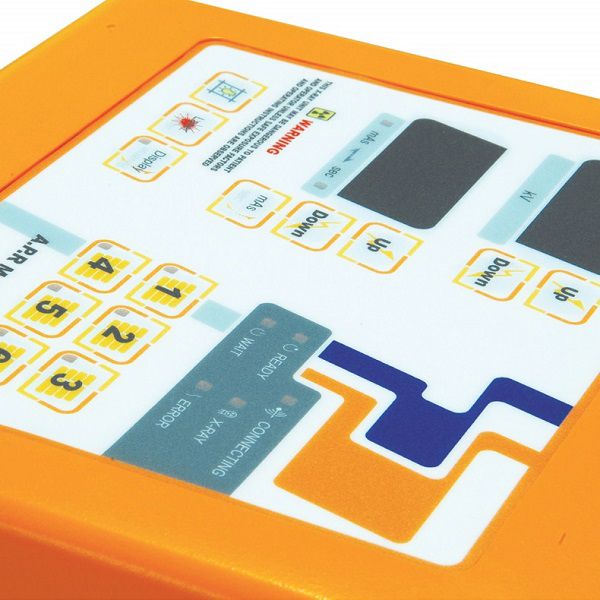

- Soft Touch Controls with Digital displays.

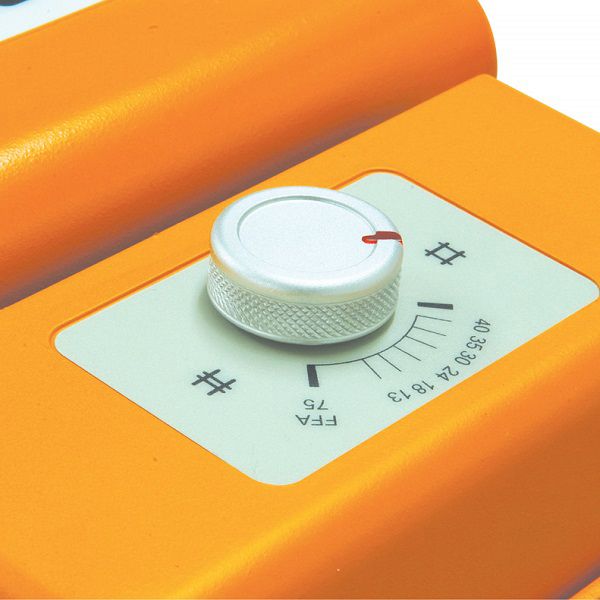

- Calibrated cassette size indicator dials
- Available with Inverted control panel for table use.
- Two stage dynamic, Auto line compensation.
- Easy access to DR systems.
- Dual Integrated Laser Pointer.
- Wired handswitch
- 6 metre power cord
- Wireless/Wire PC interface(Optional)
- EMS-1000 or EMS-H Stand (Optional)
- Podoblock Stat-X Stand Range (Optional)
- Podoblock JiXtr Portable X-Ray Generator(Optional)
Ecotron EPX-F3200 3.2kW Portable X-Ray Generator
- Maximum Output Power: 3.2kW
- Generator Frequency: 70kHz
- kV Range: 40-100kV in 1kV steps
- mA Range: 12-60mA
- mAs Range: 0.4-100mAs
- Focal Spot: 2.0mm x 2.0mm
- Target Angle: 16 Deg
- Anode Heat Storage: 40kHU
- Input Voltage: 200-240VAC
- Phase/Frequency: Single/50-60Hz
- Dimensions: 360x200x190mm
- Machine Weight: 12kG
- Shipping Weight: 22kG
Note: Does not include radiation certification certificates or approvals but this is a separate service we offer.
