Thames Medical CAT+ Companion Animal Doppler/Blood Pressure Monitor
Stock Code:
MAI-48515
$2,420.00 (inc GST)
Downloads
Description
Thames Medical CAT+ Companion Animal Doppler/Blood Pressure Monitor
Take the pressure out of blood pressure monitoring with the all British CAT+ Doppler Blood Pressure System.
Your patient’s beating pulse
The CAT+ Doppler is the heart of the CAT+ BP kit, but you don’t need to use the whole kit to benefit. As well as taking blood pressure in clinics many of our clients simply tape the CAT+ on and listen to their patients pulse during anesthesia.
Why choose the CAT+ Doppler Blood Pressure system?
Whether measuring blood pressure in a clinic, in surgical procedures or simply as a pulse quality monitor, the CAT+ gives you:
- Improved patient safety
- The reassurance to diagnose and prescribe
- An ability to track the efficacy of treatment
- Helps improve client compliance as they can see the effect of your treatment
- Helps generate profits either as part of an ongoing screening program or as part of an anesthetic fee
If your patient’s BP, pulse rate, or quality of pulse changes you will immediately hear it.
It’s as easy as 1 2 3...
Simply prepare the fur over the pulse you want to use; tail, brachial, radial or even femoral.
1. Swab the fur with alcohol (it gets the oil out), and apply a generous dollop of ultrasound gel
2. Lightly hold or tape the probe over the pulse
3. Switch on and adjust the volume to suit or use the enclosed headphones provided
The ability to measure and monitor blood pressure trends provides important data about patient cardiovascular status and may help define an approach to treatment. Blood pressure monitoring is a vital part of a small animal practice.
Thames Medical CAT+ Companion Animal Doppler/Blood Pressure Monitor
Ultrasound
Frequency: 8 MHz continuous wave Transducer: 2 crystal narrow beam Output Power: <50mW/cm2 SATA Audio Response: 300Hz – 4KHz
Unit Controls
Keys: 1 Key (for unit on / off) Controls: Rotary volume Indicators: Yellow battery low LED
Power Supply
Battery: MN1604 (PP3) 9V Alkaline Manganese Expected battery life:> 9 hours of use
Output
Headset: Audio output to optional headset. Recorder: Voltage output proportional to velocity of flow 1mV/KHz
Enclosure
Material: ABS Size: 150mm by 75mm Weight: 350g typically including transducer
SAFETY Classification: Class 1 Type B - IEC 60601-1

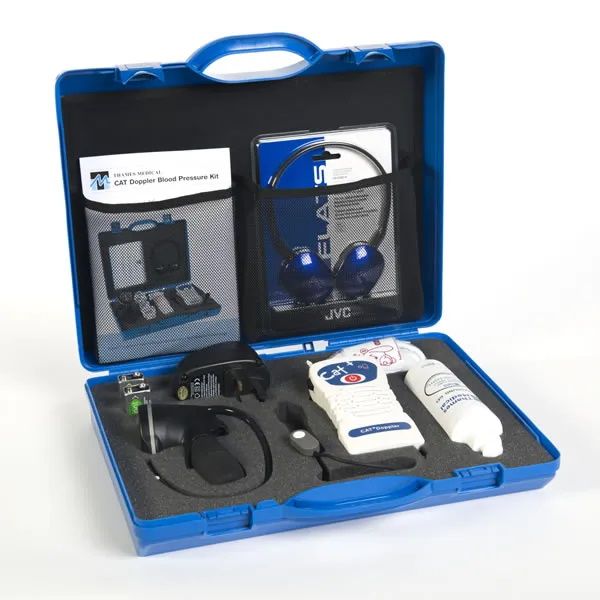

The CAT+ Doppler Blood Pressure Kit includes:
- CAT+ Doppler
- Manual
- 2 photocell rechargeable batteries
- Battery charger and appropriate cable
- 1 bottle of Ultrasound Gel
- Set of JVC headphones
- Set of wipe clean blood pressure cuffs (size 1-5, also suitable for dogs)
Note: The Cat+ Doppler system comes with a 3-year warranty on the unit, 1 year warranty on the probe and 10-year warranty on the sphygmomanometer.
