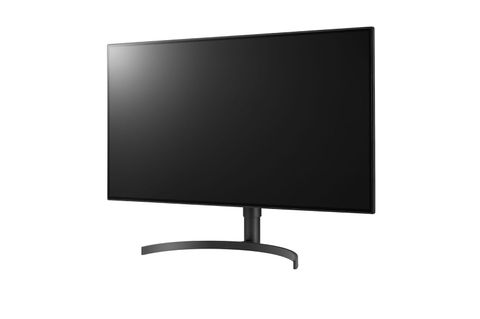

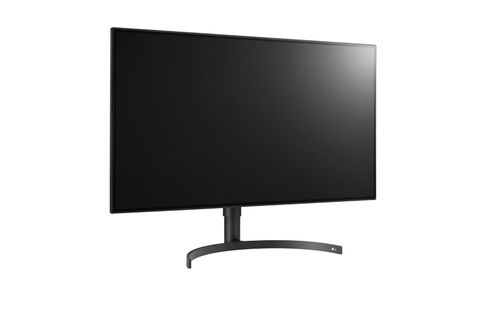

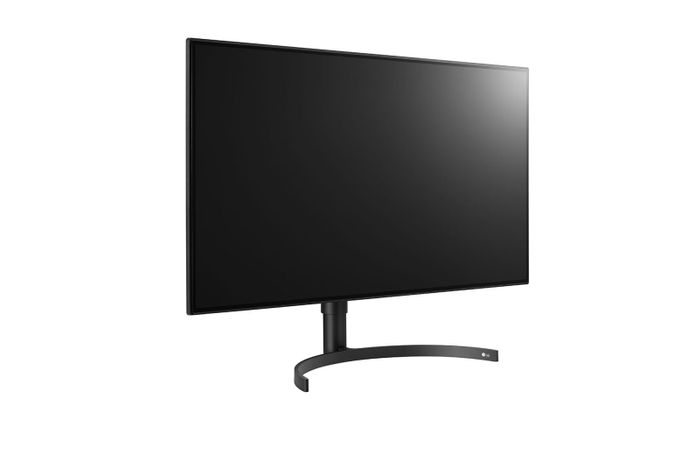

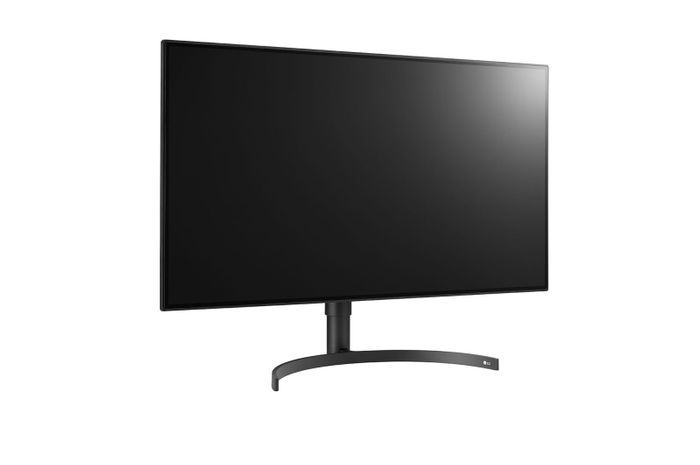

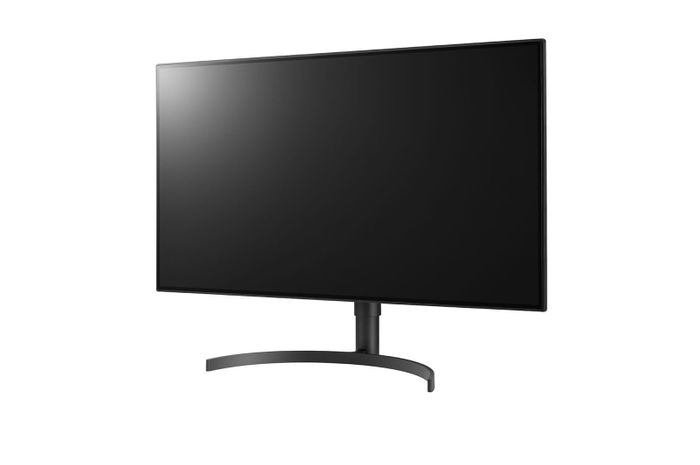

LG 32" 8MP Diagnostic Review Monitor
Stock Code:
32HL512D-B
POA
Description
LG 32" 8MP Diagnostic Review Monitor
31.5'' 8MP (3840x2160) Nano IPS Color Diagnostic Monitor with Multi Resolution and Clinical Pathology Modes, Auto Luminance Calibration, PBP/Dual Controller & Ergonomic Stand
Key Features:
- 32" 8MP (3840 x 2160) IPS Display
- 450 cd/m² with sRGB 99%
- DICOM Part 14
- Dynamic Sync Mode & Quick Response Time
- Brightness Stabilisation
- Separate external calibrator required
8MP IPS Display
The 31.5” 8MP display with IPS technology offers outstanding picture quality along with its wide viewing angle. Images can be viewed simultaneously by several people with high quality reproduction with minimised colour shift.
Compatible with Various Devices
The resolution of the 32HL512D-B diagnostic monitor can be adjusted so that the resolution best-suited to the connected device can be selected.
Realistic Colour Reproduction
This LG Diagnostic monitor with its 8MP IPS display generates vivid colour expression with minimal colour shift for more precise clinical review. Clinical Pathology Mode helps deliver images from microscopes with minimal colour distortion.
Enhanced Picture Quality
Built-in Auto Luminance Calibration helps to increase productivity and efficiency. It converts the medical images to a more suitable image to help medical staff make appropriate diagnosis.

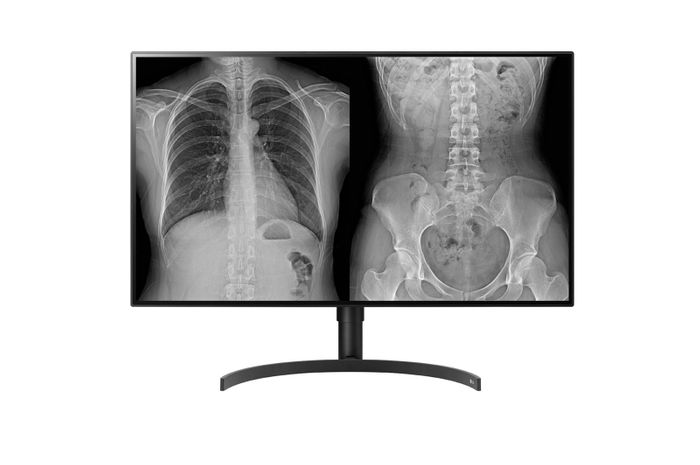

Multiple Inputs on One Screen
PBP (Picture By Picture) and Dual Controller software allow you to control multiple devices connected to one screen, using just one keyboard and mouse. This allows you to review information from multiple devices simultaneously and can make clinical review more convenient.
Designed for Comfort & Immersion

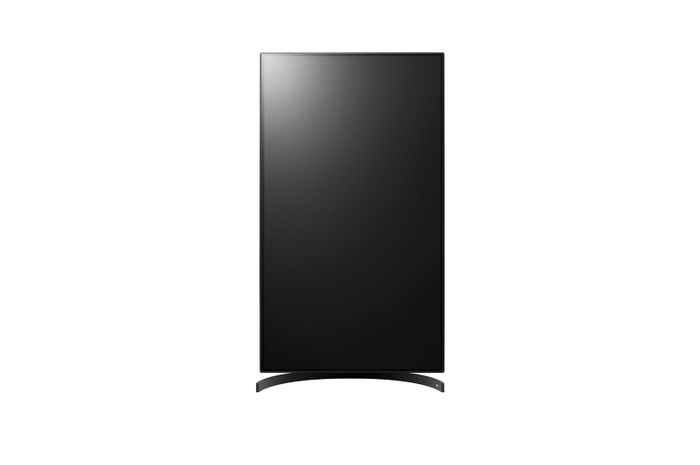

The Ergonomic Stand with two-way pivot adjustment and narrow bezels, allows the user to create a user-friendly diagnostic workspace. Rotating the monitor allows users to view documents, videos and images in either horizontal or vertical position.
LG 32" 8MP IPS Diagnostic Review Monitor
PANEL
Screen Size: 31.5'' (80 cm)
Panel Technology: IPS
Resolution: 3840 x 2160
Brightness: 450cd/m²
Contrast Ratio: 1400:1 (native)
Pixel Pitch: 0.18159(H) x 0.18159(V) mm
Response Time: 5ms (GtG at Faster)
Viewing Angle (H x V): 178° x 178°
Color Depth (Number of Colors): 10bit (8bit+FRC) / 1.07B
Gamma Selection: Delta E<5, Gamma, 1.8~2.6/DICOM curve
Colour Temp: 6500K/8500K/9300K Manual, (5000K ~ 10000K)
CONNECTIVITY

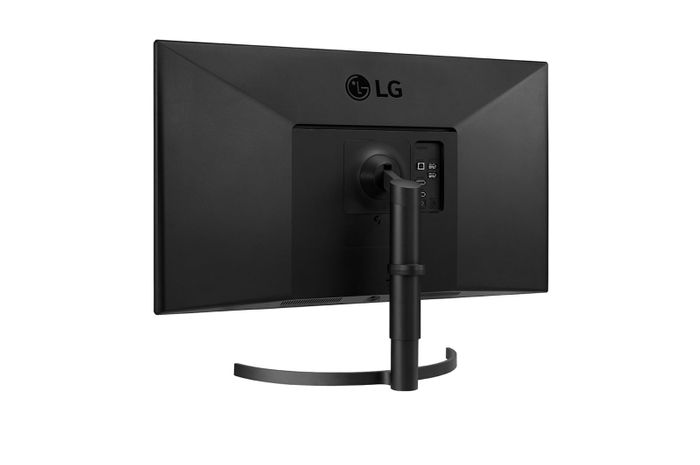

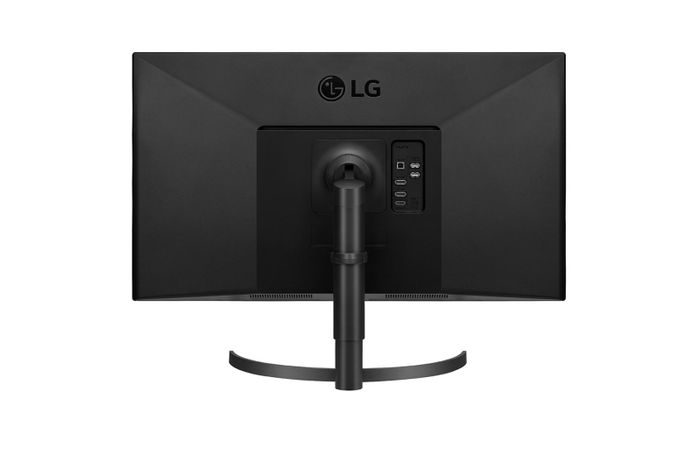

Input (Rear): Display Port 2ea (ver 1.4), HDMI 1ea (ver 2.0), USB2.0 (1up / 2 down)
ENVIRONMENT CONDITIONS
Operation Temperature: 0°C - 40°C
Operation Humidity: Less than 80%
ACCESSORIES
Power cable/DVI cable/DP cable: Black/1.8m
Adapter: Yes (Black)
Calibration Report (Paper): Yes
PHYSICAL SPECIFICATIONS
With stand (WxDxH):
718 X 598 X 231 mm (Up)
718 X 488 X 231 mm (Down)
Without stand (WxDxH): 718 X 414 X 45 mm
With stand Weight (kg): 7.3kg
Without stand Weight (kg): 5.9kg
VESA™ Standard Mount Interface: 100mm x 100mm
STANDARD (CERTIFICATION)
Safety: CB Scheme: IEC 60601
EMC: CISPR 11, EN60601--1-2:2015, (IEC 60601-1-2:2014)
SPECIAL FEATURES
Additional: HDR 10, HDR Effect, HW Calibration, Nano IPS™ Technology, Pathology PBP(2PBP), Reader Mode, Smart Energy Saving, Super Resolution+, Wide Colour Gamut, BLS (ALS), Black Stabiliser, Colour Calibrated, Dynamic Action Sync, Wide Colour Gamut, Dual Controller, Qubyx Uniformit\y
Picture Mode: (SDR) Custom, Mono, Pathology, Reader, Vivid, HDR Effect, DICOM (Clinical), DICOM (Diagnostic,<=10%), Calibration 1, Calibration 2, (HDR) Custom, Vivid, Standard

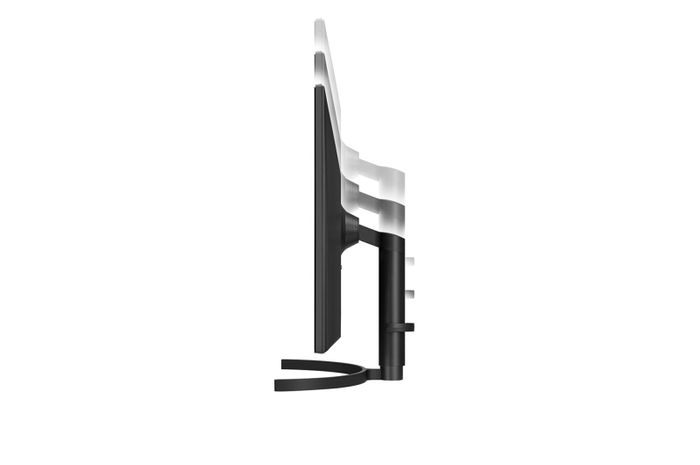

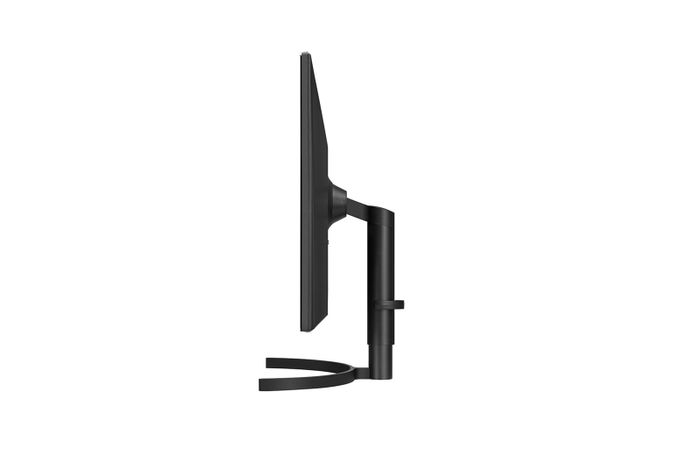

Stand (OneClick Stand):
Pivot: Bi-Direction
Tilt: Yes
Down Height: 85.3
Height Range: 0-110mm
POWER
Power Supply: 100~240 V, (50/60 Hz)
Power Consumption: 65W
DC Output: 19V, 3.42A
Sleep Mode: 1.2W
Off Mode: 0.3W
Power Type: External Power (Adapter)
SOUND
Speaker: No
