LG 21" 3MP Diagnostic Review Monitor
Stock Code:
21HK512D-B
POA
Description
LG 21" 3MP Diagnostic Review Monitor
3MP IPS Display
The 21.3” 3MP display with IPS technology offers outstanding picture quality along with its wide viewing angle. Images can be viewed simultaneously by several people with high quality reproduction with minimised colour shift.
DICOM Part 14 Compatible
In the medical field, monitors must display images accurately and consistently, especially the grayscale tones that may vary even between similar monitors. To ensure highly accurate and consistent shading for medical images, LG measures and sets every grayscale tone to produce a monitor compliant with DICOM Part 14.
Brightness Stabilisation
A sensor measures the monitor's backlight brightness and automatically compensates for brightness fluctuations caused by aging of the monitor, for consistently stable brightness during usage.
Built-in Colour Calibration
Built-in calibration allows the 21HK512D% to automatically adjust colours to accurately display medical imagery% such as MRI and CT scans.
Ergonomic Design

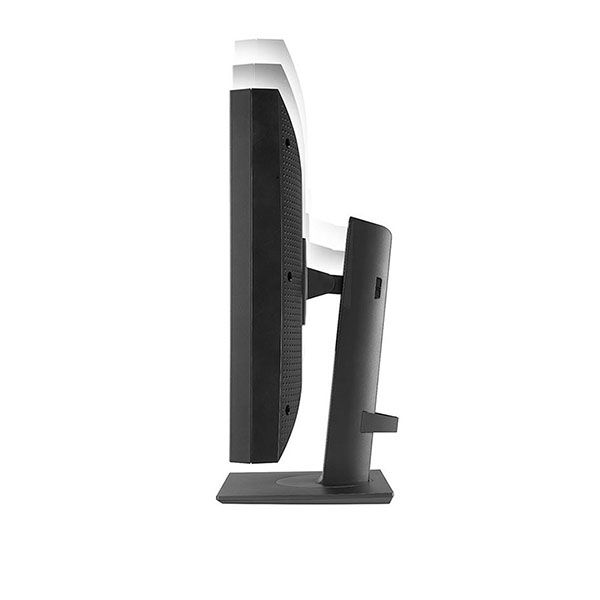

The Ergonomic Stand with pivot adjustment allows the user to create a user-friendly diagnostic workspace. Rotating the monitor allows users to view documents, videos and images in either horizontal or vertical position.
Key Features:
- 21.3" 3MP (2048 x 1536) IPS Display
- DICOM Part 14
- Brightness Stabilisation
- Ergonomic Stand with Pivot Adjustment
LG 21" 3MP IPS Diagnostic Review Monitor
PANEL
Screen Size: 21.3" (54cm)
Panel Technology: IPS
Resolution: 2048 x 1536
Brightness: 1000cd/m²
Contrast Ratio: 1400:1 (Typ.)
Pixel Pitch (mm): 0.2115 (H) x 0.2115 (V)
Response Time: 30mS
Viewing Angle (H x V): 178° x 178°
Colour Depth (Number of Colours): 10bit/1.07B
Gamma Selection: Delta E<10, Gamma 1.8~2.2/DICOM curve
Colour Temp: 6500K/7500K/9300K
CONNECTIVITY
Input (Rear):
Display Port 1ea (ver 1.1)
DVI-D 1ea
USB(ver 1.1) 1Up/2 Down
ENVIRONMENT CONDITIONS
Operation Temperature: 0°C - 40 °C
Operation Humidity: Less than 80%
ACCESSORIES
DVI-D/Display Port/Power Cord: Black/3m
Calibration Report (Paper): Yes
PHYSICAL SPECIFICATIONS
With stand (WxDxH): 377 X 606 X 248 mm
Without stand (WxDxH): 377 X 473 X 90 mm
With stand Weight (kg): 9.8kg
Without stand Weight (kg): 7kg

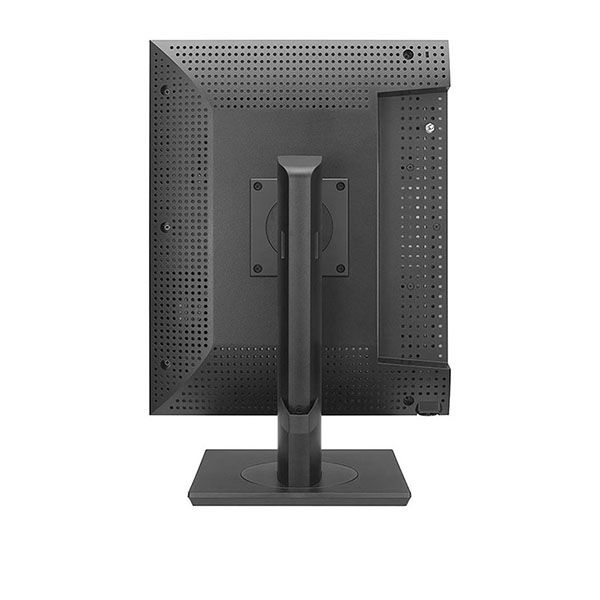

VESA™ Standard Mount Interface: 100mm x 100mm
STANDARD (CERTIFICATION)
Safety: CB Scheme/IEC 60601
EMC: CISPR 11, EN60601--1-2:2015
SPECIAL FEATURES
Special features: HW Calibration, Auto Brightness, Front/Backlight Sensor, Presence Sensor, Auto Lumince Stabilisation, Self Calibration Test (DICOM & Gamma), DICOM(<=10%), Light Box, Monochrome Mode, Anti-bacterial
Stand (OneClick Stand):
Pivot: ±90º
Swivel: ±45º
Tilt: -5~25°
Height Range: 150mm
POWER
Power Supply: 100 ~ 240V, (50/60Hz)
Power Consumption: 85W
DC Output: 24V, 4.17A
Sleep Mode: 6.5W
Off Mode: 6.5W
Power Type: Internal Power (LIPS)
SOUND
Speaker: No
