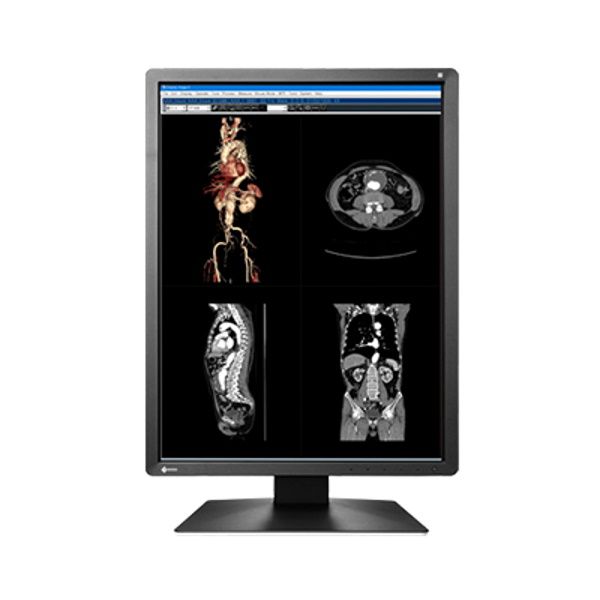

Eizo Radiforce MX216 2MP 54cm (21.3") Colour LCD Monitor
Stock Code:
MX216
POA
Downloads
Description
Eizo Radiforce MX216 2MP 21.3" Colour LCD Monitor
A monitor ideal for viewing MRI and CT medical images in clinical review environments with built-in calibration sensor for maintaining optimal user settings.
Easy Calibration with Integrated Front Sensor
Integrated Front Sensor, housed within the front bezel, is conveniently enabled and visible only when calibration is being performed. This dramatically reduces the time and effort needed for quality control.
Portrait Design
Portrait orientation is preferred when viewing medical images on 2 megapixel monitors. The RadiForce MX215 is designed so that the sensor and buttons are positioned according to this orientation.
Diagnostic Precision with DICOM Part 14 Factory Adjustment
To ensure the most accurate and consistent shadings possible, EIZO carefully measures and sets every grayscale tone on the production line to produce a monitor compliant with DICOM Part 14.
High Contrast Ratio
The high contrast ratio of 1500:1 allows the RadiForce MX215 to provide users with the high level of image quality and detail essential for viewing medical images in clinical environments.
Quick Brightness Stabilization for Instant Viewing
At startup or upon wakeup, the EIZO patented drift correction function quickly stabilizes the brightness level. In addition, a sensor measures the backlight brightness and counteracts brightness fluctuations caused by ambient temperature and the passage of time.
Wide Viewing Angles for Multiple People Use
Thanks to the wide viewing angles and high contrast ratios of the panel, images can be viewed simultaneously by several people with the highest quality reproduction and minimal color shift.
Steadier Image Across the Screen
The Digital Uniformity Equalizer (DUE) function provides optimum backlight luminance uniformity which is difficult to attain due to the characteristics of LCD monitors, especially with a larger screen size.
Mode Selection for Optimum Viewing
Selectable with the front panel buttons, the CAL Switch function allows for various imaging modes of different modalities such as CR, CT, and endoscope images.
Presence Sensor for Power Savings
The presence sensor prompts the monitor to switch to power save mode when it detects the user is away from the monitor, and then resumes normal operation when the user returns.
Versatile Positioning for Improved Operability
EIZO's highly versatile stand offers tilt, swivel and a wide height adjustment range for greater comfort.
Customer Assurance with Medical Standards
EIZO monitors meet the strictest medical, safety, and EMC emission standards. The RadiForce MX215 has obtained FDA 510(k) clearance for general radiography.
Supporting a Healthy Life
Starting with our message "Making Each Life Visual", we aim to support optimal medical care for each and every individual through accurate diagnosis and treatment afforded by our innovative healthcare technologies.
Environmentally Friendly
Our healthcare products are designed to promote energy efficiency for reduced power consumption and CO2 emissions, while maintaining the high performance and functionality needed in healthcare. We also implement a responsible after-service recycling system.
Warranty with Safety and Trust
Click here for Warranty Information
Eizo Radiforce MX216 2MP 21.3" Colour LCD Monitor
Model Variations:
MX216-BK: with stand, black
Panel
Type: Colour (IPS)
Backlight: LED
Size: 54 cm / 21.3"
Native Resolution: 1200 x 1600 (3:4 aspect ratio)
Viewable Image Size (H x V): 324.0 x 432.0 mm
Pixel Pitch: 0.270 x 0.270 mm
Display Colours: 10-bit colours (DisplayPort): 1.07 billion (maximum) colours
8-bit colours: 16.77 million from a palette of 543 billion colours
Viewing Angles (H / V, typical): 178° / 178°
Brightness (typical): 420 cd/m2
Contrast Ratio (typical): 1500:1
Response Time (typical): 20 ms (on / off)
Video Signals
Input Terminals: DisplayPort, DVI-I
Digital Scanning Frequency (H / V): 31 - 100 kHz / 59 - 61 Hz
Analogue Scanning Frequency (H / V): 26 - 100 kHz / 49 - 76 Hz
Sync Formats: Separate, Composite
USB
Upstream: USB 2.0: Type-B
Downstream: USB 2.0: Type-A x 2
Power
Power Requirements: AC 100 - 120 V, 200 - 240 V: 50 / 60 Hz
Maximum Power Consumption: 48 W
Typical Power Consumption: 19 W
Power Save Mode: 0.5 W or less
Sensor: Backlight Sensor, Integrated Front Sensor, Presence Sensor
Features & Functions
Brightness Stabilization: Yes
Digital Uniformity Equalizer: Yes
Preset Modes: CAL Switch
OSD Languages: English, German, French, Italian, Japanese, Simplified
Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Net Weight: 8 kg
Net Weight (Without Stand): 5.4 kg
Hole Spacing (VESA Standard): 100 x 100 mm
Certifications & Standards (Please contact EIZO for the latest information.):
CE (Medical Device Directive), EN60601-1, ANSI/AAMI ES60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, CAN ICES-3 (B), RCM, RoHS, China RoHS, WEEE, CCC, EAC
FDA: 510(k) Clearance for General Radiography
Dedicated Software
Monitor Quality Control Software RadiCS: Supported
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables: DVI-D (3 m), DisplayPort (3 m)
Others: AC power cord (3 m), USB cable (3 m), Utility Disk (RadiCS LE, ScreenManager Pro for Medical, user's manual)
