Yealink EXP40 Expansion Module
Description

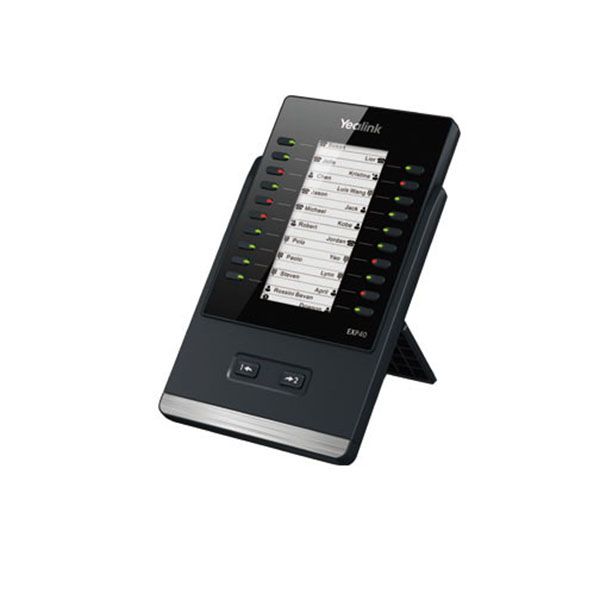

Yealink EXP40 Expansion Module
The EXP40 Expansion Module for the SIP-T46G and SIP-T48G, expanding the functional capability of your sip phone to a whole new level. It features a large graphic LCD. Two pages of 20 flexible buttons are shown on the display can be programmed up to 40 various features, the productivity-enhancing features include BLF/BLA, speed dialing, call forward, transfer, park, pickup, etc.
Key Features:
- An exclusive collection which quality and detailed designs
- Rich visual experience with 160x320 graphic LCD
- 20 physical keys each with a dual-color LED
- 2 independent control keys are used for fast switch pages
- Stand with 2 adjustable angles
- Wall mountable
Features Keys and Indicator:
- 20 physical keys each with a dual-color LED
- 20 additional keys through page switch
- 2 independent control keys are used for fast switch pages
> Programmable for Shared Line, BLF List, BroadSoft Group, Call Park, Conference, Forward, Group pickup Group listening, LDAP, Pick UP, XML Browser, Zero-SP-Touch
Yealink EXP40 Expansion Module
Display:
- 160x320 graphic LCD with 16-level grayscales
- LCD Backlight
- Two page views are possible
- Different icons for each function shown on the LCD
Physical Features:
- Wall mountable
- Stand with 2 adjustable angles
- Expansion module (=2) is powered by the host phone
- Supports up to 6 modules daisy-chain
- 2xRJ12(6P6C)ports for data in and out
- Dimension (W*D*H*T): 127mm*213mm*167mm*45mm
- Applies to Yealink IP Phone
- Operating temperature: -10~50°C
- Operating humidity: 10-95%
