LG 17x17" Wireless DR Flat Panel Detector System
Stock Code:
LG-AWS-17HK701G-WP
POA
Description

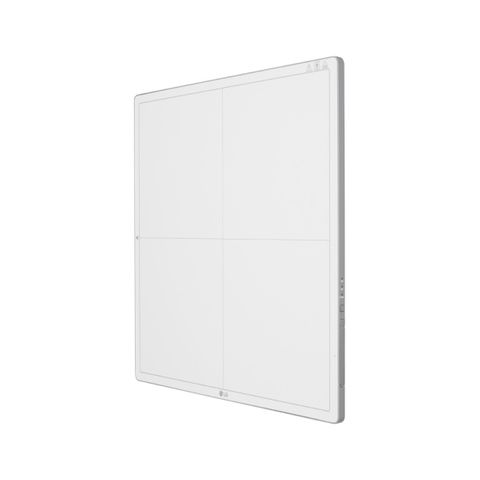

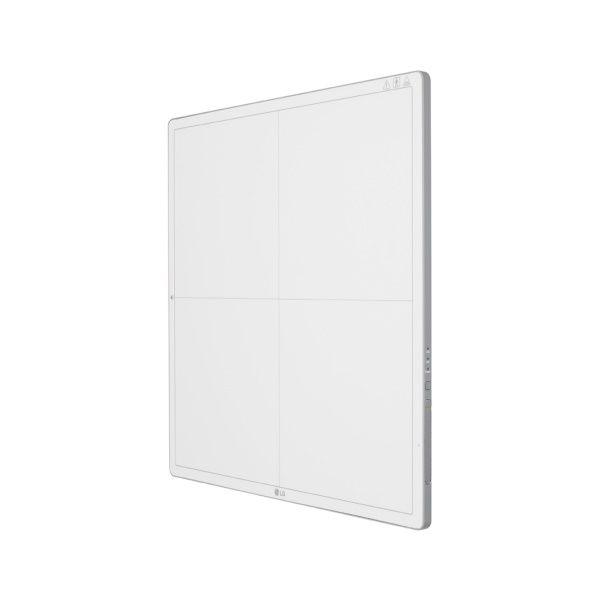

LG 17x17" Wireless DR Flat Panel Detector System
Superior Image Quality for Diagnostic Confidence
Highly Sensitive CsI AED* Detector with 16bit A/D Conversion (Data Output)
Light yet Durable
IP53: Water Resistance & Dustproof
Solids Level 5
Protected against objects of dust; complete protection against contact.
Liquids Level 3
Protected against spraying water at any angle up to 60° from the vertical shall.
Magnesium & Carbon-fibre Body
With a super strong body that combines carbon-fibre with magnesium, The LG Digital X-ray Detector is not only lightweight but also exceptionally strong.
Create a More Efficient Work flow
Access Point Mode*
Access Point Mode maximizes the efficiency and portability of the LG Digital X-ray Detector with a built-in access point
that allows the device to transmit images to the workstation desktops or laptops directly
2 sec (Wired) & 2.5 sec (Wireless) for Full Images
The LG Digital X-ray Detector delivers image previews in just 2 sec (Wired) and 2.5 sec (Wireless) for improved efficiency.
Auto Save on the Digital X-ray Detector**
The device can store up to 200 image sheets locally for continued use even in emergency situations when a Wi-Fi connection
is not available. These images can then be transmitted once a connection has been established.

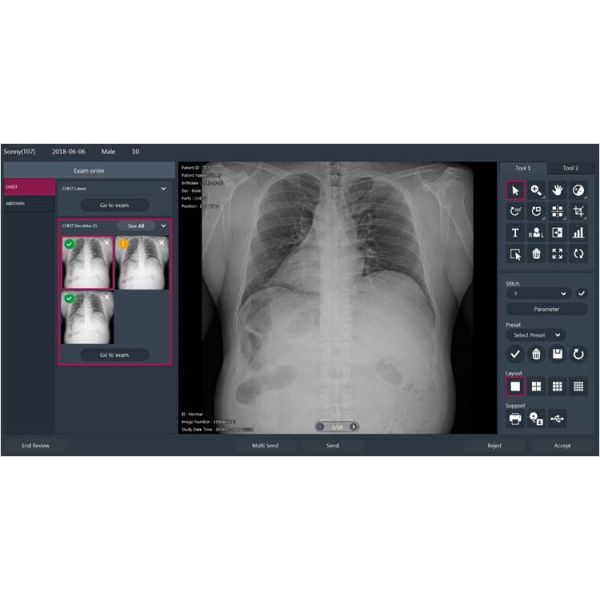

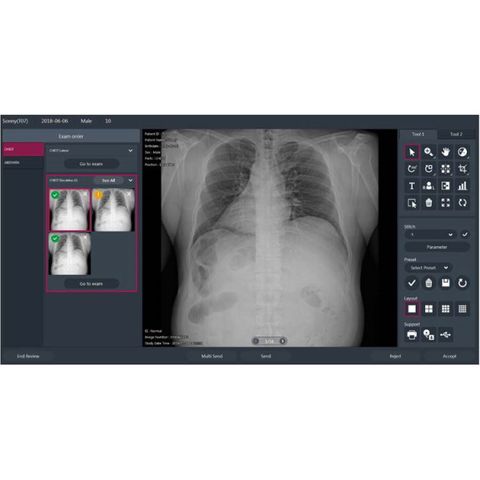

LG Acquisition Workstation Software
Overview
LG Acquisition Workstation Software ASHK100G is a diagnostic software for final post-processed X-ray images of body parts of actual patients acquired through the integration of digital X-ray detectors (DXDs) and X-ray generators. By integrating the MWL and the PACS server, this software can be used to check the information and images of the patients' body parts in real time in an HIS (Hospital Information System) based environment.
Product Benefits
Compatibility
- LG Acquisition Workstation Software can be connected to the MWL of the existing HIS, and enables a seamless integration with PACS by supporting Dicom 3.0 Protocol.
- In addition, various languages are supported with Unicode (UTF-8).
Flexibility
- LG Acquisition Workstation Software supports similar features to MWL and PACS of the hospital system in the environment where it is not connected to either of them using its own Work List management tab and the database server creation feature. Images stored in its own database can be transferred to PACS at any time.
- LG Acquisition Workstation Software is designed to deal with unexpected situations such as receiving emergency patients using its Emergency mode.
Convenience
- LG Acquisition Workstation Software has an intuitive UI to provide basic guidelines for the exam depending on each patient’s body type/body part. It is also designed to enable users to add or change content at any time to serve their needs.
- LG Acquisition Workstation Software provides convenient image management for users enabling them to use and save various types of markers/labels/annotations.
- LG Acquisition Workstation Software has a Back-up/Export to USB/Printer feature for the X-ray images, whichis a convenient way to provide patients with their exam data as needed.
- LG Acquisition Workstation Software provides enhanced convenience in reading X-ray images by using its own algorithm to optimize images depending on the area and purpose of the exam.
Security
- LG Acquisition Workstation Software supports privilege management through separating administrator and general user accounts while providing enhanced security against sophisticated hacking threats such as reverse engineering and RAM dump using a USB security key solution.
*Access Point Mode, Auto Save on the Digital X-ray Detector : Only for 17HK701G-W, 14HK701G-W
** When 200 sheets have been used, the first image will be erased in the event of continued use, in a first-in, first-out method.
LG 17x17" Wireless DR Flat Panel Detector System
LG 14x17" DR Flat Panel Detector
Application
- Human (using AWS)
Software
- LG Acquisition Workstation Software (AWS)
Panel Type
- TFT Type: A-Si
- Scintillator: CS
- Pixel Pitch: 140µm
Image Area
- Number of Pixels: 3072 x 3072
- TFT Active Area: 430 x 430 mm
- MFT: 89%
- DQE: 72%
- A/D Conversion: 16 bit
- Data Output: 16 bit
Communication
- Type: Wireless
- WLAN: EEE802.11a/b/g/n/ac | 2.4 GHz/5GHz
- Auto Exposure Detection: Yes
Cycle Time
- 8 sec (Ethernet) / 11 sec (WLAN)
- Full Image Transfer: 2 sec (wired) / 2.5 sec (wireless)
- Auto Save: Up to 200 images
- Access Point Mode: Yes (integrated)
Durability
- Maximum Load Weight: Full (uniform load) : 300kg | Local (point load) : 100kg
- Water tightness: P53
- Sensor Protection Plate: Carbon Fibre Plate
Battery
- Operation Time: (typ.) 240 shots / 6 hrs (condition : interval time 90 sec)
- Duration in Standby Status: 13 hrs
- Charging Time: 3 hours
Accessories
- Cable: Power Cord, Main Cable 7m (LAN Cable, Sync Cable Option)
- Other: Bundle Battery | Battery Charger | Control Box
ARO i5 Workstation DR Workstation
- Intel Core i5 Processor
- 8GB RAM
- 250GB SSD main drive + 1TB Image Store + 1TB Backup Hard Drive
- Windows 10 Professional
- Antivirus Software
- Remote Access Support Software
- 27" 8MP Clinical Review Monitor, DICOM Gray Scale Calibrated
- UPS (Battery Backup) and High Grade Surge Protector
- 3 Year Parts Warranty (Conditions apply)
Note: Specifications subject to change without notice
