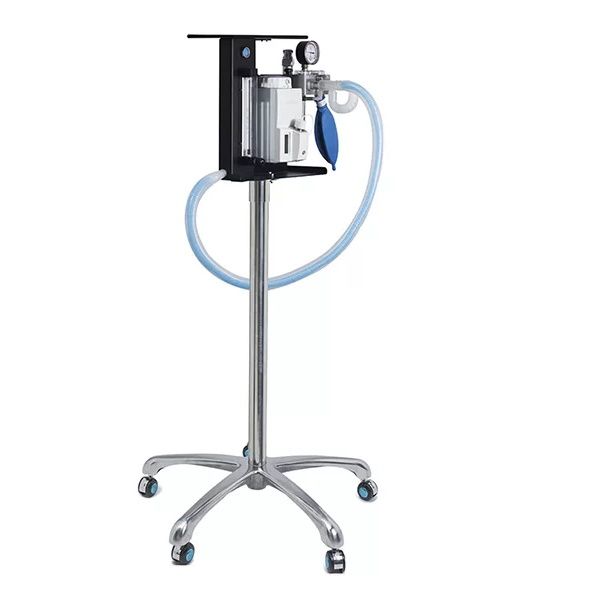

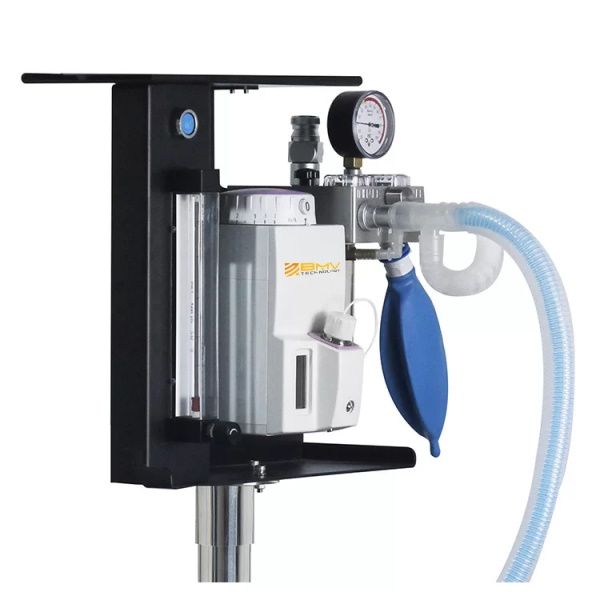

BMV BAM-7 Veterinary Anesthesia Machine System

Stock Code:
BMV-BAM-7
POA

Description

BMV BAM-7 Veterinary Anesthesia Machine System


Veterinary Anesthesia System is widely applied to veterinary clinics, hospitals and laboratories, as always received good reputation from clients around the world. It is designed for safe, simple and controllable inhalation anesthesia for animals. The Veterinary Anesthesia System provides rapid control of anesthetic depth with little resistance to respiration from high to low acuity, simple to complex cases, small to big animals, like Dogs, Cats, Rabbits, Mice, Birds, etc

Key Features:
Animals:
1-100kgs;Rats,Cats,Dogs,Rabbits,Pigs,Monkeys etc.
Respiration modes:
- Passive Breathing, Active Breathing(Cycle Breathing Circuit-Airbag)Active Breathing (Open Breathing Circuit-Rodents)
- Active Breathing (Cycle Breathing Circuit-Bellow) Active Breathing(“T" Circuits)
Oz Flush:
- 30-70L/min,
Working Pressure:
0.15 0.55Mpa
- With APL(Airway Pressure Valve), prevent over-high pressure that will damage animals With COz absorbing
- With Inspiration Valves and Expiration Valves, could clearly watch animals breathing status
- T V: Active Breathing: according to animals spontaneous breathing Passive Breathing:10ml 3000ml
- BPM: Active Breathing: according to animals spontaneous breathing. Passive Breathing: according to veterinarians operation
- 1/E: Active Breathing: according to animals spontaneous breathing. Passive Breathing: according to a veterinarian operation
- Monitoring Parameter: dynamic airway pressure
- Dimensions(main unit):=450×220×390mm(WxD×H)
- Vaporizer: Quick pour fill, with Flow, Pressure and Temperature compensation function

Anaesthesia Ventilator (optional)
- Easy to use operation interface
- The frame is made of metal alloy with spray plastic process, durable and long lasting
- Professional usage methods, some parameters could be automatically set
- Standard connector to match with various brands of anaesthesia machine.
- Tidal Volume:0-1500mL
- Respiratory Frequency:3-60 bpm
- 1/E ratio: 1:2
- Dimensions(excluding Bellow):=230×270×130mm(WxDxH)
AC:220?±22?,50Hz±1Hz; Optional:AC:110V,60Hz


Optional Accessories

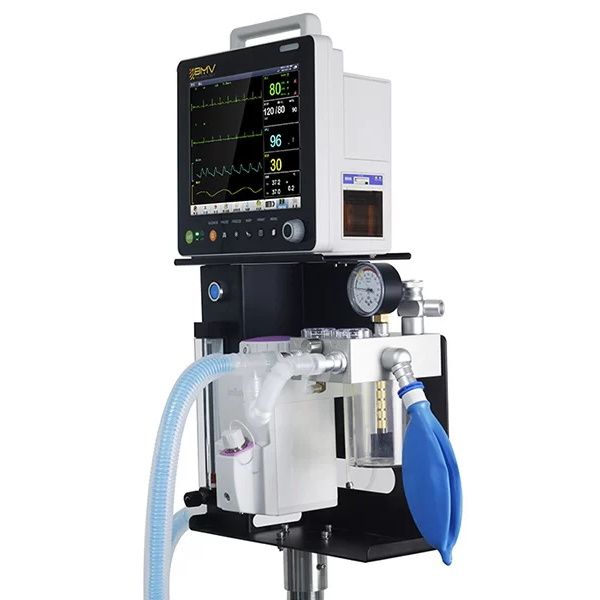

- Patient Monitor
- Trolley: Designed tio fit the BAM-7 anaesthesia machine
- Endotrachealintubation, Animal laryngoscope, Sodalime
- Ventilator:
1. With supportable for Anesthesia Ventilator.
2. Easy to us interfaces.
3.The frame is made of metal alloy, with spray plastic process, durable and long lasting.
4.TV:0-1500ml,BPM:3-60bpm
5.Dimensions(main unit):=230×270×130mm(WxDxH)
6.AC:220V/50Hz,AC:110V/60Hz(Optional)
