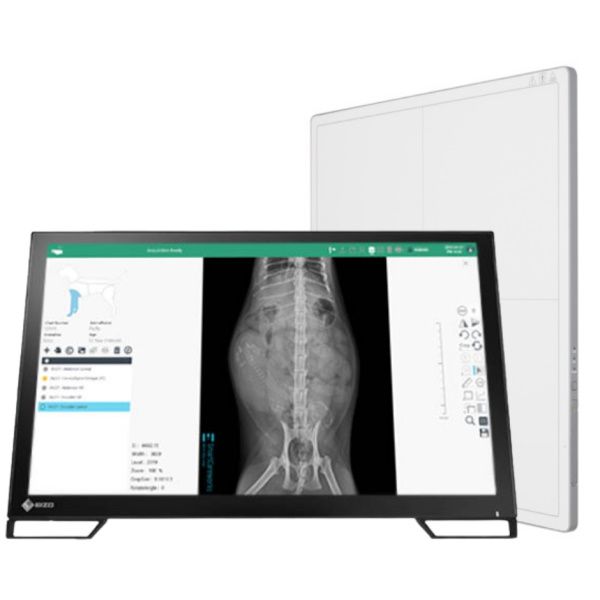

This system has the amazing GoDR software bundled with the LG 14x17X 140µm CsI Digital X-ray Detector, along with workstation, monitor and everything that you need to make a complete system.

GoDR Vet Acquisition Software

GoDR™ is an X-ray image processing and acquisition software developed by SmartCareworks Inc. It is compatible with a wide range of industry leading X-ray detectors and generators. GoDR™ is the most innovative software to acquire and process digital x-rays images. With veterinary specific features such species and integrated dental option such as tooth picking and full mouth series, all your x-ray capability is in one place. You can easily upgrade your current software to GoDR! You just need to check the compatibility list with us and your done!

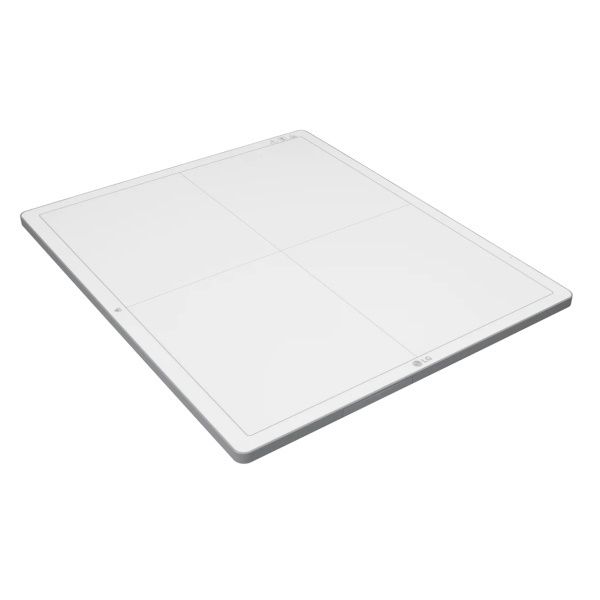

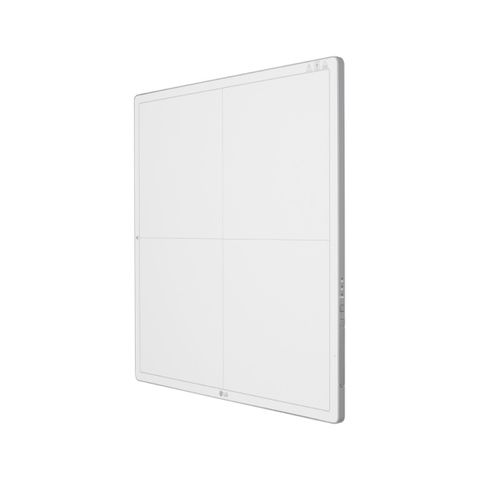

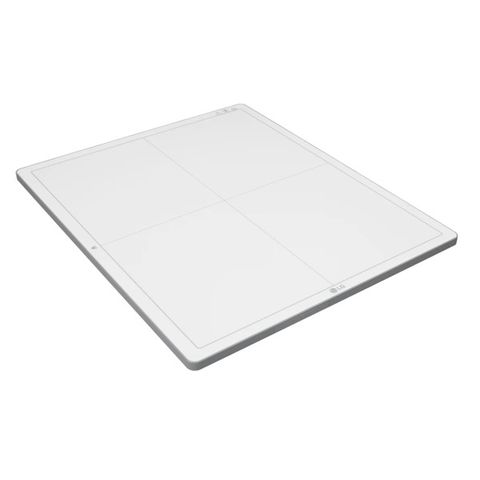

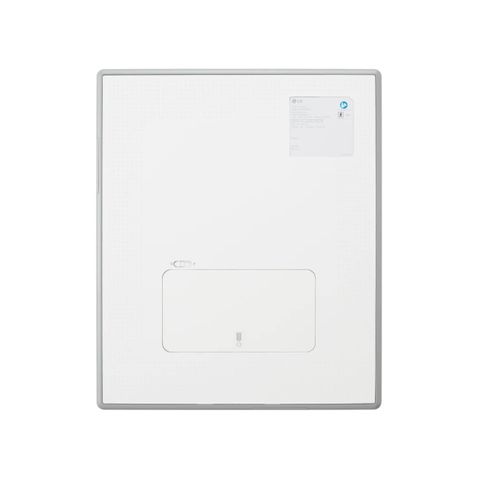

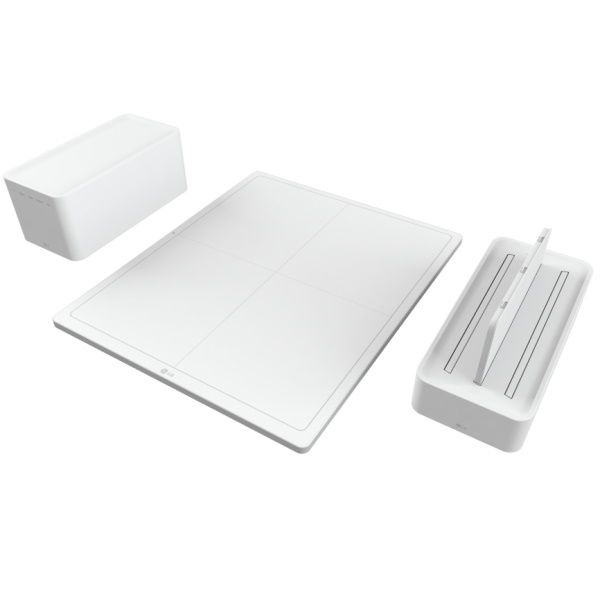

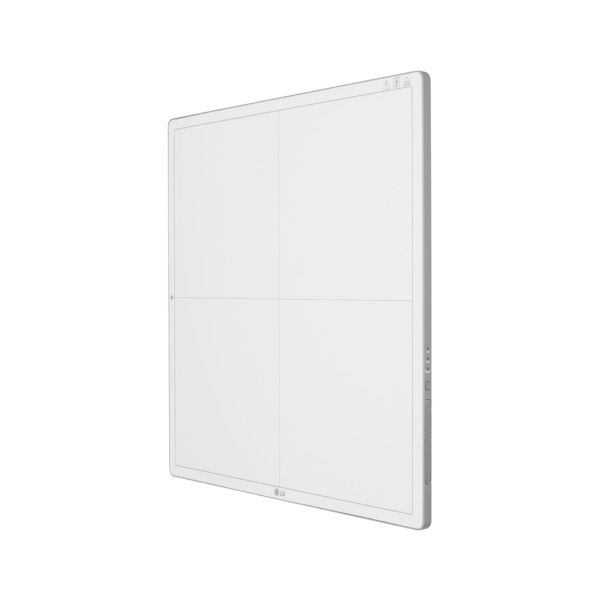

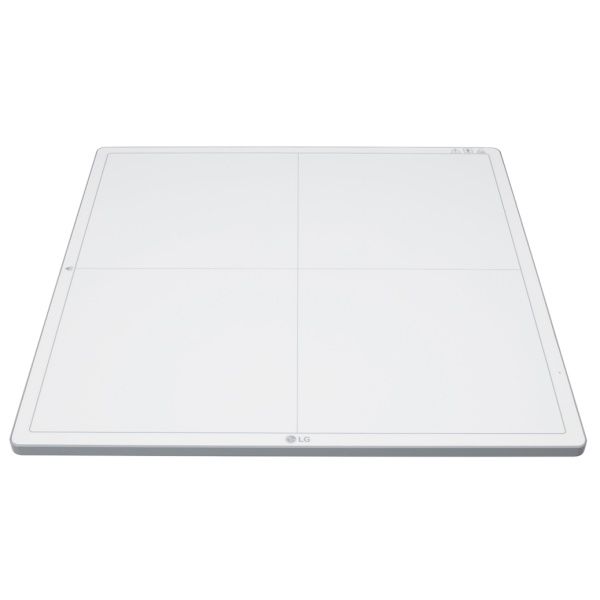

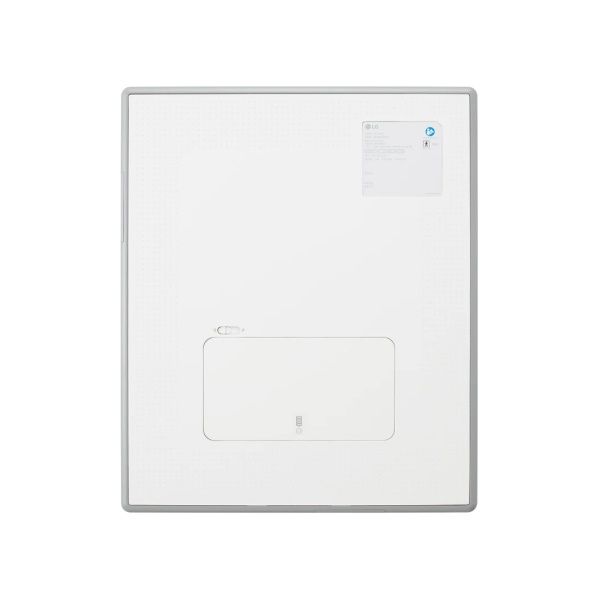

LG DXD 14x17" High-Performance Cassette-size Wireless CsI Flat Panel Detector

Ensure Diagnostic Accuracy
Superior Image Quality
LG DXD guarantees high resolution and clear image quality without image distortion through 16bit image processing. Plus, it also supports ideal pixel pitches of 140? for high resolution images.

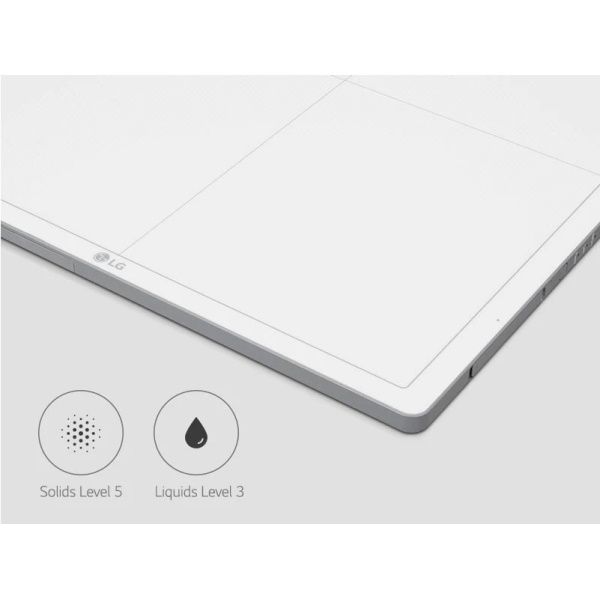

IP53: Water and Dust Resistant
IP53 resistance rating* ensures that LG DXD will be partially protected against dust that may harm the equipment and moisture spray up to 60 degrees from vertical.

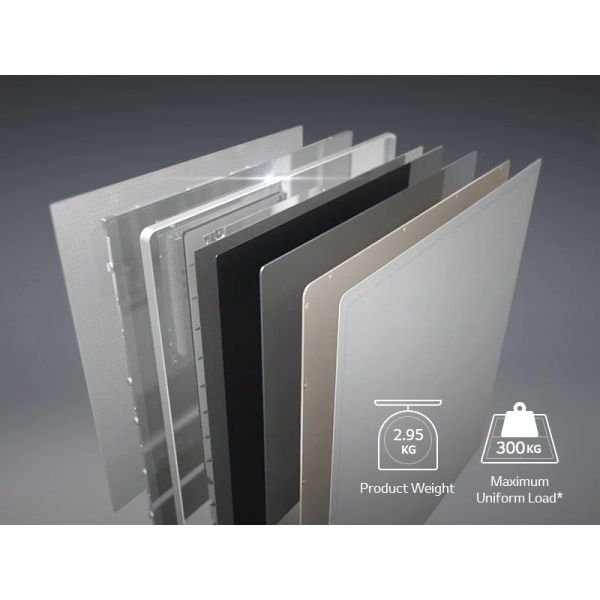

Magnesium & Carbon-fiber Body
With a super strong body that combines carbon-fiber with magnesium, LG DXD is not only lightweight, but also exceptionally strong.

Improve Work Efficiency
Rapid Image Availability
LG DXD increases productivity with a fast-processing. It takes only 2 seconds with connection or 2.5 seconds for wireless to get a raw image.

Key Features:

Key GoDR Features:
- Vet specific interface
- Full touch screen
- Vet specific tools such as TTA, TPLO
- Easy procedure mapping allowing common sequences to be easily built
- Integrated dental tooth picker and Full Mouth Series with optional dental scanner
- Full integration with multiple DR Flat Panel Detectors

Key LG DXD Digital X-Ray Flat Panel Detector Features:
- Excellent 140µm pixel pitch with 16-bit ADC for more image detail
- Direct deposition Csl, with excellent DQE at all frequencies
- Full AED control, exposure at any time
- Supports a fast workflow for a better user
- Wireless cassette detector per ISO 4090, fits in bucky experience
- ISO Standard 14x17" size
- Detector Weight 2.95kg
- Large capacity battery design, with 8 hours battery life
- Lightweight design with IP53 water and dust resistant

Included in the System:
- GoDR Software
- LG 14x17" 140µm Flat Panel Detector
- DICOM Medical Grade 27" Touch screen
- Industrial Computer
- Local Backup Drive
- 3m Network Cable
- UPS (Battery backup)
- Industrial Surge Filter
- Configured and tested ready to go

GoDR LG 17x17 Wired CsI Vet Small Animal DR System

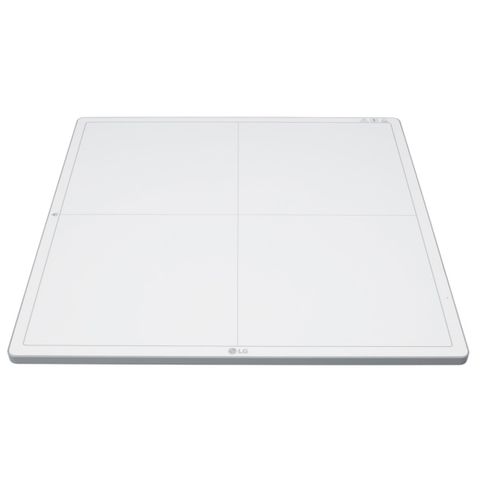

LG 17x17" 17HK700G-WA Wired DR Panel

Application: Veterinary

Detector information
- TFT Type: A-Si
- Scintillator: CsI
- Pixel Pitch: 140µm
- Number of Pixels: 3072x3072
- TFT Active Area:430.08mm x 430.08mm
MFT: 89%
DQE: 72%
A/D Conversion: 16 bit
Data Output: 16 bit

Communication
Type: Wired
Auto Exposure Detection: Yes

Cycle Time: 8 sec
Full Image Transfer: 2 sec

Durability
Maximum Load Weight: Full (uniform load) : 300kg | Local (point load) : 100kg
Water tightness: P53
Sensor Protection Plate: Carbon Fibre Plate

Accessories
Cable: Power Cord, Main Cable 7m (LAN Cable, Sync Cable Option)
Other: Control Box

ARO i5 Workstation DR Workstation

- Intel Core i5 Processor
- 8GB RAM
- 250GB SSD main drive + 1TB Image Store + 1TB Backup Hard Drive
- Windows 10 Professional
- Antivirus Software
- Remote Access Support Software
- 24" Monitor, DICOM Gray Scale Calibrated
- UPS (Battery Backup) and Grade Surge Protector
- 3 Year Parts Warranty (Conditions apply)

Note: Specifications subject to change without notice
