Sentier Vetcorder™ Pro Portable Patient Monitor with 8" Tablet
Stock Code:
MAI-48561-T
$1,881.00 (inc GST)
Description

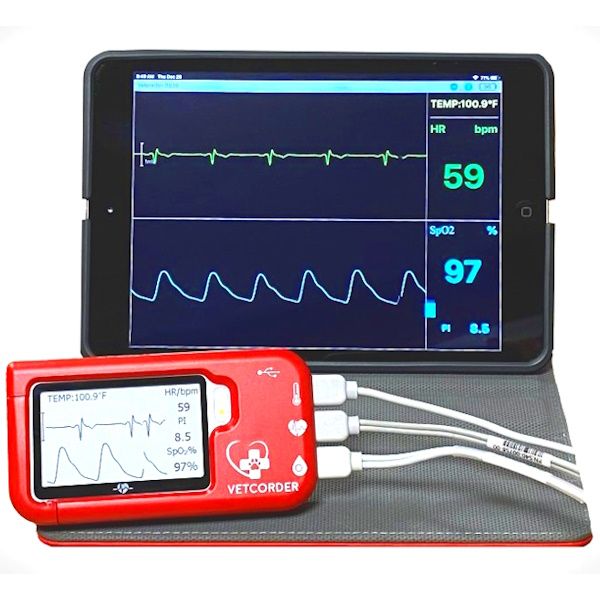

Sentier Vetcorder™ Pro Portable Patient Monitor with 8" Tablet
Want the perfect bundle? Get the Sentier Vetcorder™ Pro bundled with an 8" Lenovo Table with a protective case and you have the perfect pair to take advantage of the impressive Bluetooth capability of the Vetcorder™. The tablet has a robust case with built-in stand allowing it to be set on its side on the angle to make landscape viewing of traces easy.
Improving the quality of patient care has never been easier. Vetcorder™ Pro is an affordable, hand-held multi-parameter monitor capable of monitoring ECG, SpO2 and internal temperature. With the available free app for Android and iOS, the Vetcorder™ Pro can be mirrored via Bluetooth to a phone of tablet, giving the veterinary team real-time increased visibility of patient status from a distance. Vetcorder™ Pro excels in many under-monitored areas of the clinic such as radiology, recovery, and transport. With a 12-hour battery life, the pocket size Vetcorder™ Pro is a must have for any clinic.
Key Features
- ECG
- SPO2
- Internal temperature probe
- Over 12 hours of continuous monitoring
- 3 months standby
- USB and Bluetooth 4.0 compatible
- Size: 115mm x 64mm x 19mm (4.5" x 2.5" x 0.75")
What's New? Vetcorder Pro!
The Vetcorder has been updated to include a durable protective case integrated with a multi-parameter splitter. Updated app to include continuous monitoring via Bluetooth and an internal temperature probe to monitor core temperature. VETCORDER PRO is the same great device that fits in your pocket, ONLY better! DID WE MENTION the touchscreen and ease of use? Admission to discharge.
Continuous Monitoring
Continuous monitoring of ECG, SpO2, Temperature and Heart Rate. An audible “beep” can be heard whenever a heart rate is detected. Now, continuous monitoring via Bluetooth will allow you to monitor your patient while performing other tasks in the clinic. Up to 12 hours of battery life means you can monitor several patients from intake through recovery before recharging.
Monitor on Android and iOS
While using the Vetcorder Pro’s Monitor Vitals app you can view your patient vitals up to 30' away enabling you to monitor patients while completing other tasks in the clinic. The Vetcorder apps are free and downloadable via the app store for iOS and Android.
Daily Check
Your team can take a 30-second recording of ECG, SpO2 and temp and save under a pet file that includes name, weight and age. Vetcorder Pro allows you to take many recordings of an individual patient over a longer period of time during their stay in the hospital.
Internal Temperature
With Vetcorder Pro’s internal temperature sensor and extension, it’s never been easier to continuously monitor body temperature for the safety and comfort of a patient. Before, during and well into recovery.
Bluetooth Data Transfer
All recorded data can be transferred to our mobile application via Bluetooth 4.0 technology. Once connected, you can download the data and view measurements from Daily Checks as a daily, weekly or monthly trend.
HOW CLINICS USE THE VETCORDER
Examination Room: Spot Check
When Pieces’ owner leaves, her vital signs begin to rise immediately. With Vetcorder, the veterinary technician can take a spot check in the exam room before "white coat syndrome" begins to take effect.
Recovery Room: Monitor Until Awake
We know there is no replacement for having hands on the animal, yet emergencies arise that can take attention away during the course of recovery. Technicians and pet owners get peace of mind knowing that every pet is monitored until full recovery.
In the Field: Mobile Monitoring
Practicing in the field comes with unique challenges, among them is monitoring. The Vetcorder is capable of supplying every veterinarian and technician in the field with monitoring solutions.
Lenovo Tab M8 HD 8" 2GB RAM & 32GB eMMC Tablet Iron Grey
The Lenovo Tab M8 is an impressive little tablet. Sleek metal construction, a spectacular HD display, and a Dolby Audio™-tuned speaker, come together to bring you enjoyable entertainment with luxury appeal. And with a quad-core processor and up to 18 hours of battery life, this tablet will keep you engaged all day with your favorite apps from the Google Play Store.
The Lenovo Tab M8 is a sleek way to access the internet, your favourite media, work documents, and more, thanks to the 8" HD display ensuring your visuals are presented with clarity. It has a sleek, metal design for a premium feel in your hands, with a battery life of up to 18 hours so you can use it all throughout the day.
Key Features:
- 8" IPS display with a resolution of 1280 x 800.
- 2 GB of RAM which ensures that you can effectively multitask between apps.
- Built-in storage capacity of 32 GB.
- 5MP primary camera for video calls and photos.
- Supports connections via WiFi and Bluetooth 5.0.
- Charges via the included Micro USB cable.
- Measures 199.1 W x 121.8 D x 8.15 H mm.
- Tablet can run for up to 18 hours.
- Comes with a 12 month warranty.
- It comes in an iron grey design.
- It features face unlock technology so you can easily access your tablet at anytime.
- Included with a protective case with a built in stand
The Case for Vetcorder in Recovery:
According to a recent study, more than half of the deaths tied to veterinary surgery happened within three hours of recovering from anaesthesia, which is used in a multitude of minor procedures. *Note 1
In a 2016 study, 57 percent of dogs and 35.5 percent of cats that underwent procedures using anaesthesia experienced an adverse event, including:
arousal or breakthrough pain (14.9%), hypoventilation (13.5%), hypo tension (10.3%), arrhythmias (5.8%), hyperthermia/hypothermia (5.0%), airway complications (4.8%), recovery excitation (4.6%), aspiration risk (4.5%), desaturation (2.8%), hypertension (1.7%) and other ailments (3.7%). *Note 2
The study found that using monitoring tools like a Vetcorder can be easily integrated in vet practices to provide valuable evidence and data for veterinarians, veterinary technicians and anesthetists to maintain optimal health for their patients during procedures and in recovery.
*Note 1
Brodbelt, DC et al (2008) “The Risk of Death: The Confidential Enquiry into Postoperative Small Animal Fatalities.” Veterinary Anesthesia and Analgesia 35, 365-373.
*Note 2
McMillan, M et al (2016) “Adverse event surveillance in small animal anaesthesia: an intervention-based, voluntary reporting audit.” Veterinary Anaesthesia and Analgesia 43(2): 128-35.
From Vet Practice Magazine:
Click Here to Read More
by Dr Shane Simpson, Karingal Veterinary Hospital, Frankston, VIC
The Vetcorder is a small portable ECG and pulse oximeter unit. It’s very sensitive and picks up a signal when larger machines can’t get a reading.
What’s good about it
The Vetcorder can be Bluetooth-connected to an iPad so the results are displayed on a clear, easy-to-read screen. We often have an animal in a cage with the iPad sitting on top so it can be seen from anywhere. I might be sitting at a desk 20 or 30 metres away and can still monitor the pulse ox and the ECG without difficulty. It also has an inbuilt thermometer that just needs to be pushed up against the animal’s skin to take a reading of the surface temperature.
The pulse ox uses a standard probe that attaches to the tongue or foot. The ECG has two metal clips that are attached to the left front leg and back right leg. It also has some small needle probes that are very useful with my exotics work. Clips won’t work with lizards but the needle probes can be pushed through the skin and into the muscle to pick up the ECG.
The whole unit is about the size of a credit card and about one centimetre thick. It’s USB-charged and once fully charged, the battery will last for about a week. It has adjustable volume and the alarm can be turned off. If there’s an unusual ECG trace, the read-out on the iPad can be saved as an image and emailed to a specialist.
What’s not so good
We’ve had to replace the lingual probe for the pulse ox a few times but, to be honest, I think that’s just normal wear and tear.
As used by Australia Zoo Hospital !
Sentier Vetcorder™ Pro Portable Patient Monitor with 8" Tablet
Each System Includes:
- 1x Vetcorder Pro
- 1x SpO2 lingual sensor
- 1x ECG cable with two sets of clips
- 1x Internal Temperature Probe
- 1x 1 metre extension cable
- 1x USB charging cable with AC adapter
- 1x Quick-start guide
- In-service training
SPECIFICATIONS
SpO2
Range: 70% - 100%
Accuracy: 80-100% +/- 2%, 70-79 +/- 3%
HR/PR
Range: 30 to 350 bpm
Heart Rate: +/- 2 bpm or +/- 2%
Connectivity
Wireless Bluetooth 4.0
Battery
ECG Recorder: Over 1,000 times
Blue tooth: On 12+ hours
Battery Type: Rechargeable lithium-polymer 560 mAh
Monitoring Functions
- SpO2
- Heart rate
- ECG
- Ability to provide convenient surface temperature spot check
- ECG and Pleth Waveforms
Size
- 115mm x 64mm x 19mm (4.5" x 2.5" x 0.75")
Options (see Related Products below)
- Zumaya Probes for avian, reptiles and other exotics
- Reflectance Sensor (instead of the clip sensor)
- Extension Cord, 1 Metre
Click here for Warranty Information
Lenovo Tab M8 HD 8" 2GB RAM & 32GB eMMC Tablet Iron Grey
Processor
- MediaTek Helio A22 (4C, 4x A53 @2.0GHz)
Operating System
- Android Pie
Display Type
- 8.0" HD (1280x800) WVA 350nits, 10-point Multi-touch
Memory
- 2GB Soldered
Hard Drive
- 32GB eMMC
Warranty
- 1 Year Return To Base
AC Adapter
- 5V / 1.0A
Graphics
- Integrated IMG GE8300 GPU
Battery
- Integrated 5000mAh
Camera
- Front 2.0MP / Rear 5.0MP
Wireless
- 11a/b/g/n/ac, 1x1
Integrated Mobile Broadband
- None
Tablet Case
- Shockproof Hybrid Armour Stand Case Cover
