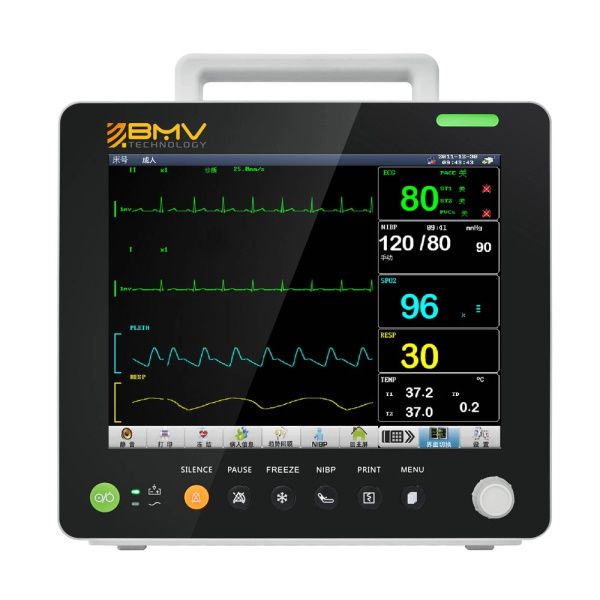

BMV BMO-210 Multi-parameter Patient Monitor with 12" LCD Screen with WiFi & Software

Stock Code:
BMV-BMO-210-SK
Login For Price
$1,958.00 (inc GST)

Description

BMV BMO-210 Multi-parameter Patient Monitor with 12" LCD Screen with WiFi & Software


BMO-210 Vet can monitor physiological parameters: SpO2, ECG, body temperature, pulse, heart rate, blood pressure and CO2. Reliable quality and stable health care system that will give you confident results. With powerful storage capacity, it will ensure that you will not miss any clinical data. With the option CMS16 Central Monitiing Software, you monitor up 16 devices at once on one central workstation.

Key Features:
- 12 inches colour TFT LCD screen with multi channel waveforms display
- Super ability against electrosurgical interference. Neither in cutting nor in burning, ECG waveform and HR can be influenced, very short recovering time after defibrillation, especially suitable for use in emergency or operating room.
- Advanced digital technology, accurately measure SpO2 in low perfusion situation.
- Rechargeable high energy built in Lithium Battery
- Easy to learn and use, simplified menus and dedicated functions keys
- Easy connection with Windows compatible central monitoring system
- 96 hours data storage
- Export capability in the optional CMS16 Central Monitoring Software
- Monitors end-tidal C02 and inspired C02 accuracy at high respiration rates
- Gas monitoring with cutting edge water filter tube
- Screw holes underneath to allow mounting to anaesthesia carts


Included in the Standard System


BMO-210 Main System:
- BMO-210 Main host(system)
- Contains modular: ECG, SpO2/PR, NIBP, RESP, TEMP
- Connector including ECG, SpO2/PR, NIBP, RESP, TEMP1/TEMP2
- 12" Colour TFT LCD Screen
- 1x Built in high-energy rechargeable battery; approximately 3 hours run time on battery
- Front shell black and back shell white colour housing case

Function Accessories:
- 1x 3 lead ECG Cable
- 1x Blood pressure Cuff Kit (Veterinary - Size #1, #2, #3, #4, #5)
- 1x Blood pressure quick joint
- 1x NIBP Tube
- 1x BMV SpO2 sensor
- 1x Temp Probe

System Accessories:
- 1x Power Cable
- 1x Ground Cable
- 1x User Manual
- 1x LAN Connection
- 1x WLAN Adaptor
- Central monitoring software for 1-16 units (CMS16)
- Rechargeable Battery


Options:


- Thermal recorder
- IBP (Internal Blood Pressure)
- 12 Channel ECG

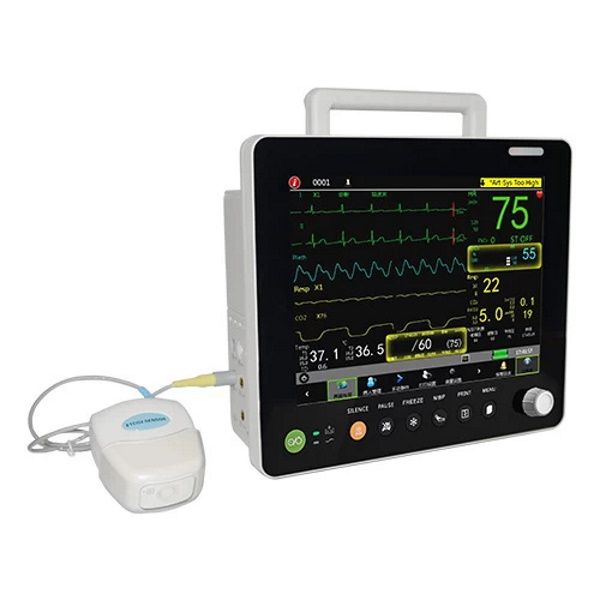

- End Tidal CO2, sidestream, internal
- End Tidal CO2, sidestream, external (our default go to)
- End Tidal CO2, mainstream, external
- Wall Mount Bracket
- Mobile Trolley

BMV BMO-210 Multi-parameter Patient Monitor with 12" LCD Screen with WiFi & Software


Standard parameters:
- 3 Lead ECG
- ECG
- NIBP
- BMW SpO2
- HR/PR
- 2-RESP
- 2-TEMP

ECG
Number of Leads: 3 leads Lead View
Lead output: 3 wires/5 wires ECG cable
User Selectable: I,II,III,aVR,aVL,aVF,V(5 Lead);I,II or III(3 lead)
Gain Selection: x1/4,x1/2,x1 and x2 Frequency Response
Diagnostic: 0.05 to 90HZ
Monitor: 0.5 to 35 HZ
Surgery: Surgery:1-15HZ
Calibration Signal : 1 (mV p-p)
Accuracy : ECG calibration: ± 1 mv Heart rate accuracy: ± 1%
ECG Signal Range: ±8 m V ( Vp-p )
Review Available

NIBP (Non-invasive blood pressure)
Technique: Oscillometric during inflation Range
Measurement type: Adult, Paediatric, Neonate, Veterinary
Measurement parameter: Systolic, Diastolic, Mean
Adult: 40-270mmHg
Pediatric: 40-240mmHg
Neonate: 10-150mmHg
Measurment cycle: <40 sec,typical
Cycles(Selectable): 2,3,5,10,15,30min 1,2,4hr
STAT model: 5 minutes of continuous reading Max Allowable Cuff Presure
Adult: 300 mmHg
Pediatric: 240mmHg
Neonate: 150 mmHg
Resolutions: 1mmHg
Transducer Accurancy : ±2mmHg or ±2% of reading

SpO2
Display type: Waveform, data
Measurement range: 0~100%
Resolution: 1 BPM
Pulse rate range: 30~250bpm
Accuracy: ±1bpm

CO2(option)
Measurement range: 0% ~ 10.0% ( Carbon dioxide inhalation and carbon dioxide exhalation)
Accuracy:
±2mmHg(<5% Measured values)
10% (>5% Measured values)

Pulse Oximetry
Range: 0 to 100%
Resolution: 1%
Accuracy: 70% to 99% range ±2% ,1% to 69%range ±5%
Bodymark:
- Over 144 bodymark patterns for all application
- Support transducer mark
Method: Dual wavelength LED

Respiration Rate
Rate: Adult: 0 ~ 120 rpm, Neo/Ped 0 ~ 150 rpm
Resolution: 1rpm
Accuracy: ± 2 breath/min

Heart(Pulse) Rate
Range: Adult 15-300 bpm, Pediatric 15-350 bpm
Accuracy: ±2bpm or ±3% whichever is greater

Trends
Memory: 96 hr at 30 second intervals for a NIBP reading every 5 mintues
Display : Trabular; Graphical

Included Configuration:
- BMV SpO2 Module
- 1x LAN Connection
- 1x WLAN Adaptor
- Central monitoring software for 1-16 units (CMS16)
- Rechargeable Battery

Optional Configuration:
- Built-in Thermal Printer
- Nellcor SpO2
- Masimo SpO2
- 2-IBP
- ETCO2 (mainstream or side)
- Wall Mount
- Mobile cart
