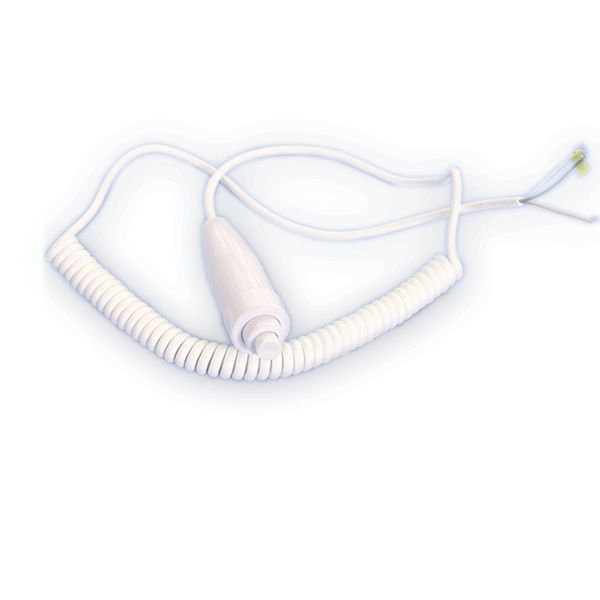

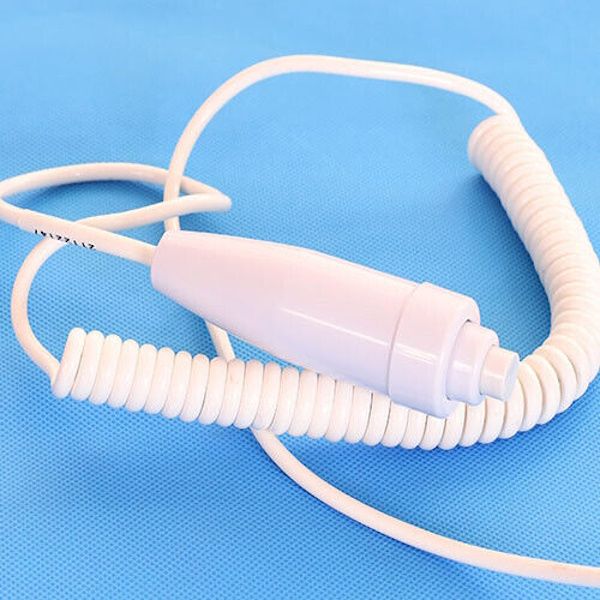

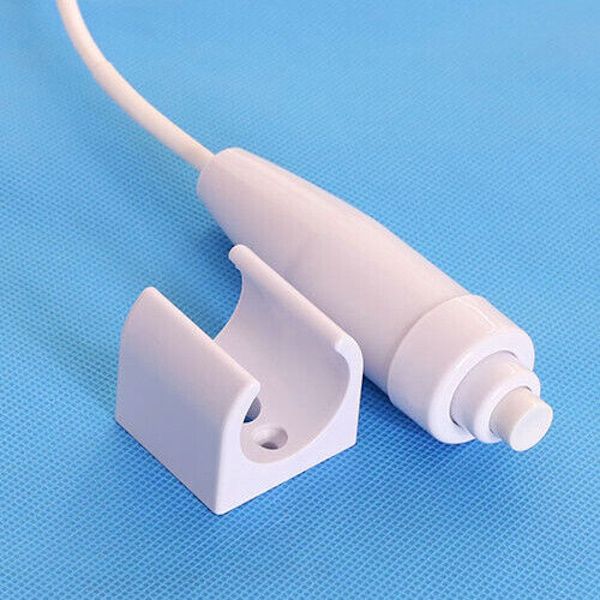

X-Ray Exposure Hand Switch and Bracket
Stock Code:
S-I960
POA
Description
X-Ray Exposure Hand Switch and Bracket
Replacement Hand Switch and Bracket to suit the EcoRay Orange Series: 8016HF, 9020HF, 1025HF, 1040HF and 1060HF and many other x-ray generators. Can be wired to suit any configuration or plug as needed. This must be done by a trained x-ray engineer.
Key Features:

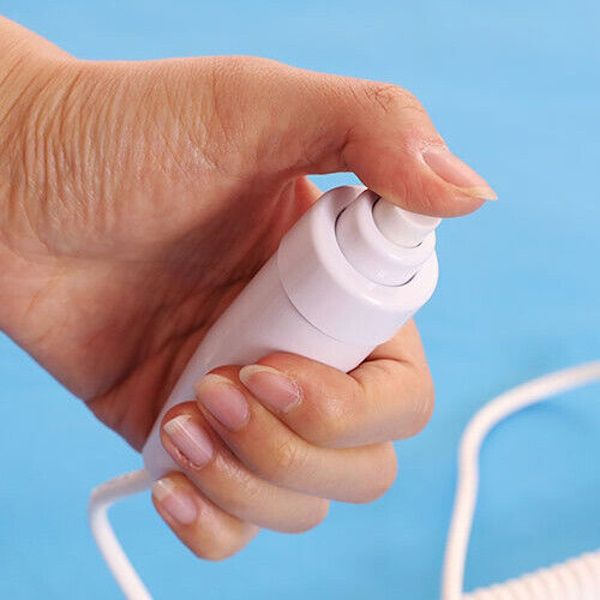

- Hand Switch is two steps:
Step1 Control the exposure preparation state;
Step2 Control to exposure.
- 4 wire cores in the core
- Cord length: 3 metres
Suitable for:
EcoRay Orange Series: 8016HF, 9020HF, 1025HF, 1040HF and 1060HF and other X-ray machine, DR digital gastrointestinal machine, DR X-ray machine, C-arm X-ray machine. Can replace GE, Omron, Fuji and other brands' hand switch.
X-Ray Exposure Hand Switch and Bracket
- Model: S-I960
- Switch Size: 105mm x 30mm (4.1 x 1.2 in)
- Wire cores in the cord: 4
- Wire's Length: 3 Metres
- Service Life: =400,000times
- Material: ABS/Plastic
- Nominal Parameter: AC-125V/3A, DC-30V/2A
- Atmospheric Pressure: 50 - 106kPa
- Ambient Temperature:-20? ~ 70?
- Relative Humidity: = 93%
Package:
1 piece of hand switch (S-I960) with placement bracket & 3-meters wires (4-cores), but without plug. The plug must be done by a trained x-ray engineer.
